Installation Procedure

  1. Install the stabilizer shaft insulator to the stabilizer shaft with the slits facing the front of the vehicle.
  2. Install the stabilizer shaft bracket over the stabilizer shaft insulator.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the stabilizer shaft bracket mounting bolts.

    Tighten

    Tighten the stabilizer shaft bracket mounting bolts to 36 N.m (26 lb ft).

  4. Lower the vehicle.

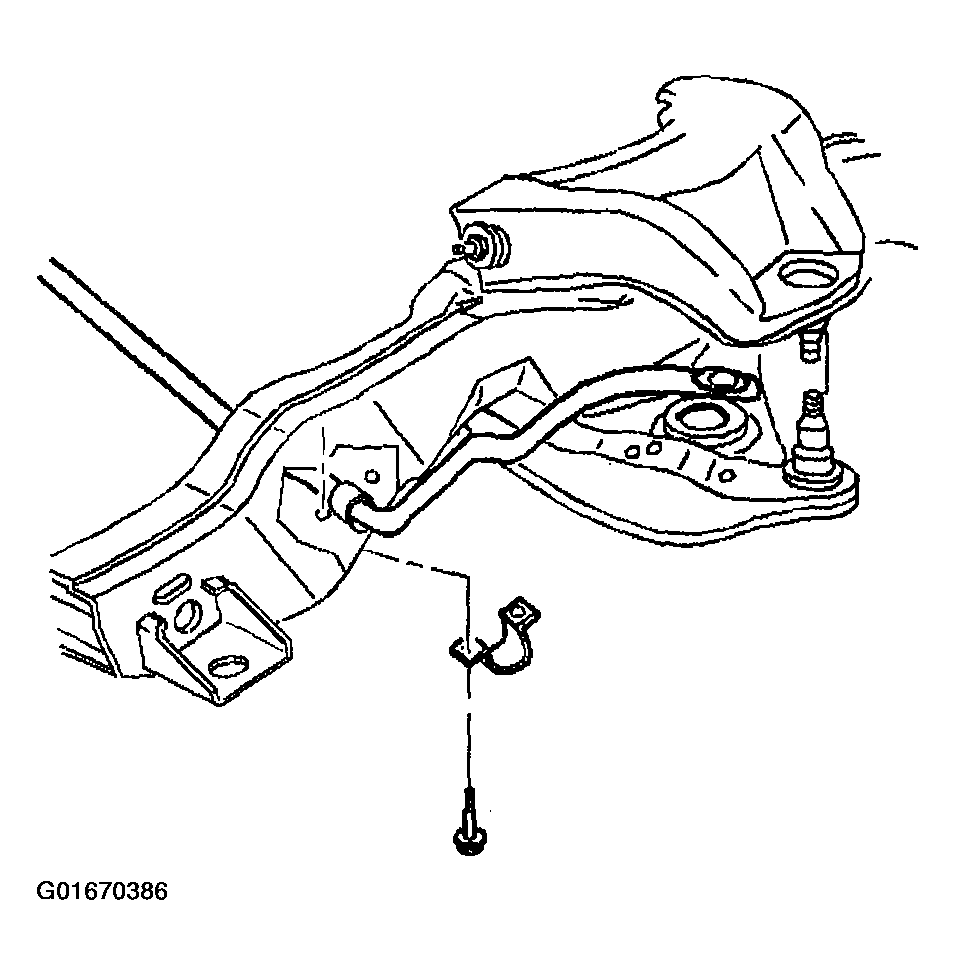

    Fig 1: Installing Stabilizer Shaft Bracket Mounting Bolts (4WD)
    G01670386Courtesy of GENERAL MOTORS CORP.
