Removal Procedure

  1. Raise and suitably support the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the steering linkage shield. Refer to STEERING LINKAGE SHIELD REPLACEMENT in Steering Linkage.
  3. Remove the stabilizer shaft bracket mounting bolts.
  4. Remove the stabilizer shaft bracket.
  5. Remove the stabilizer shaft insulator.

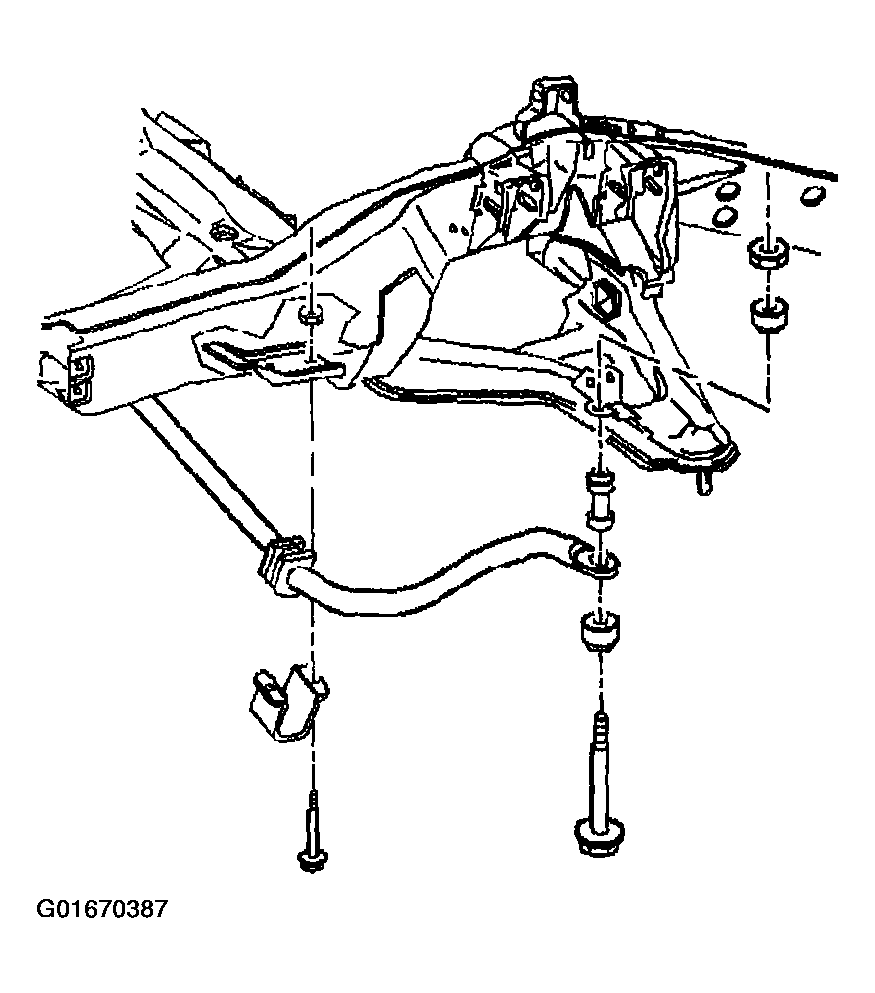

    Fig 1: Removing Stabilizer Shaft Bracket Mounting Bolts (4WD)
    G01670387Courtesy of GENERAL MOTORS CORP.
