Installation Procedure

  1. Install the stabilizer shaft insulator to the stabilizer shaft. Face the slit in the stabilizer shaft insulator forward.
  2. Install the stabilizer shaft bracket over the stabilizer shaft insulator.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the stabilizer shaft bracket mounting bolts.

    Tighten

    Tighten the stabilizer shaft mounting bracket bolts to 65 N.m (48 lb ft).

  4. Install the steering linkage shield. Refer to STEERING LINKAGE SHIELD REPLACEMENT in Steering Linkage.
  5. Lower the vehicle.

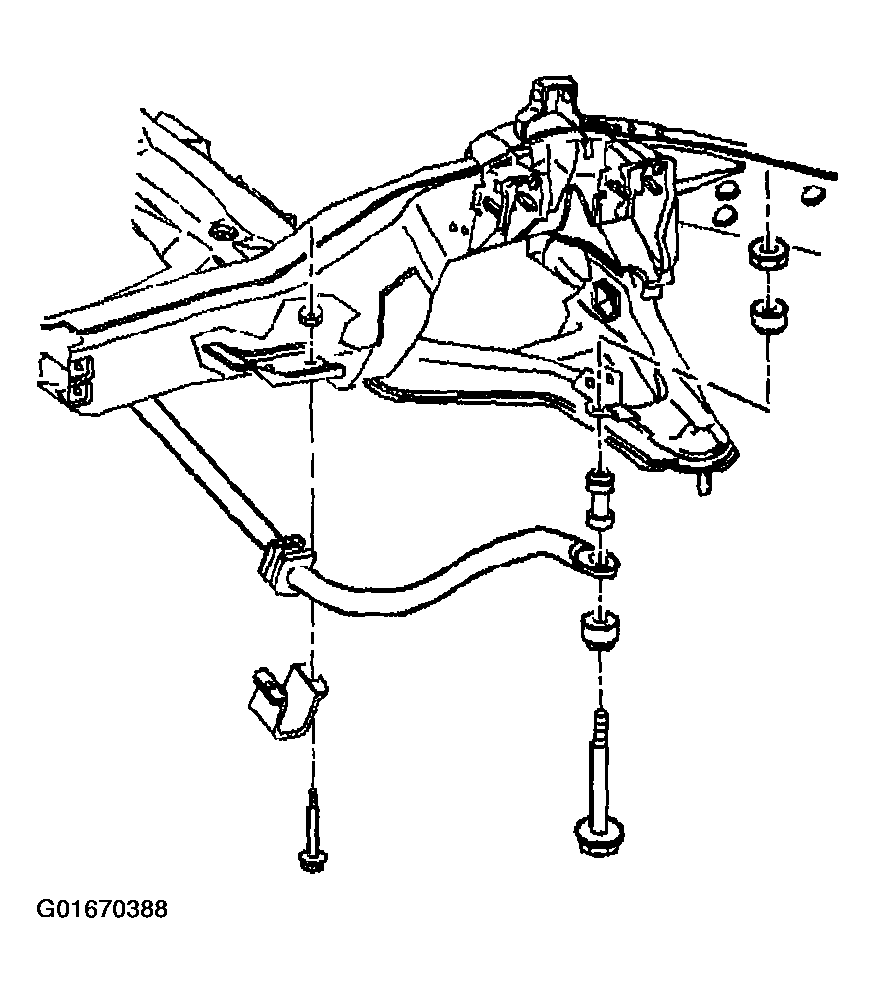

    Fig 1: Installing Stabilizer Shaft Bracket Mounting Bolts (4WD)
    G01670388Courtesy of GENERAL MOTORS CORP.
