Installation Procedure

  1. Install the retainer and the grommet on the stem. Fully extend the stem.
  2. Install the shock absorber up through the lower control arm and the spring. Insert the stem end through the hole in the upper control arm frame bracket.
  3. Install the grommet to the stem.
  4. Install the retainer to the stem.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the shock absorber upper nut.

    Tighten

    Tighten the shock absorber upper nut to 12 N.m (106 lb in), while holding the stem with a wrench.

  6. Install new nuts, if needed.

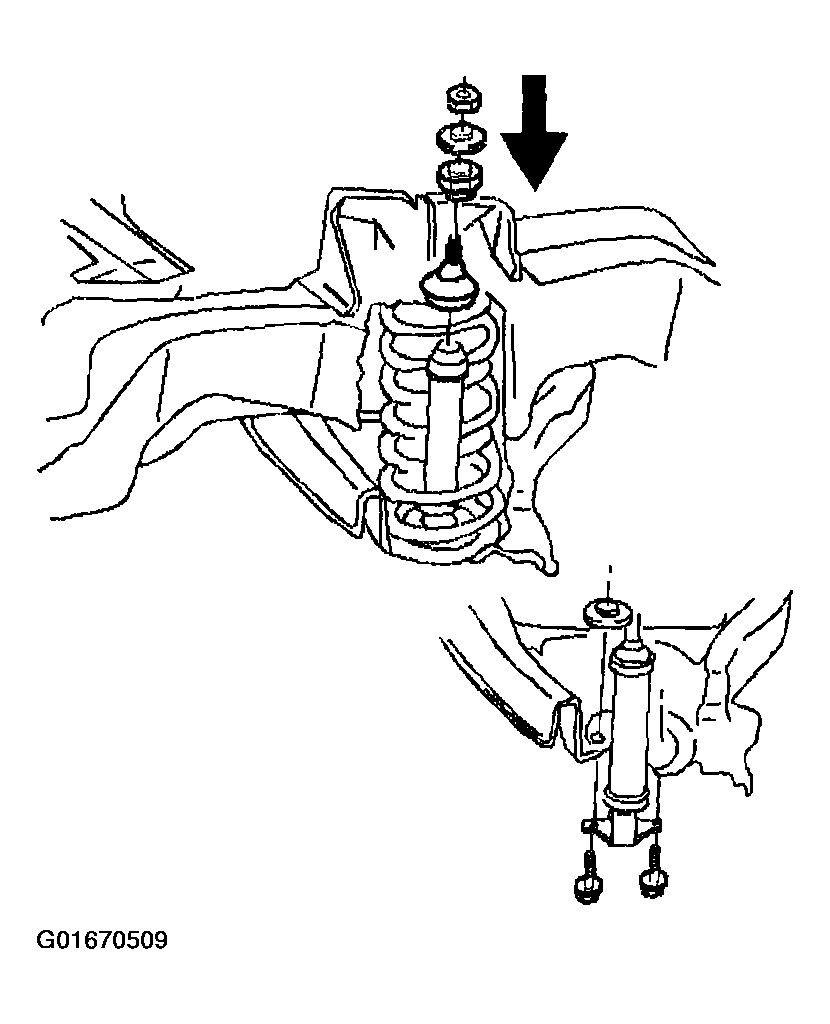

    Fig 1: Installing Shock Absorber Up Through Lower Control Arm And Spring (RWD)
    G01670509Courtesy of GENERAL MOTORS CORP.
  7. Install the shock absorber lower bolts through the pivot holes to the lower control arm holes.

    Tighten

    Tighten the shock absorber lower bolts to 30 N.m (22 lb ft).

  8. Lower the vehicle.
