Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the shock absorber lower mounting nut and bolt.
  4. Remove the shock absorber upper mounting nut and bolt.
  5. Remove the shock absorber.

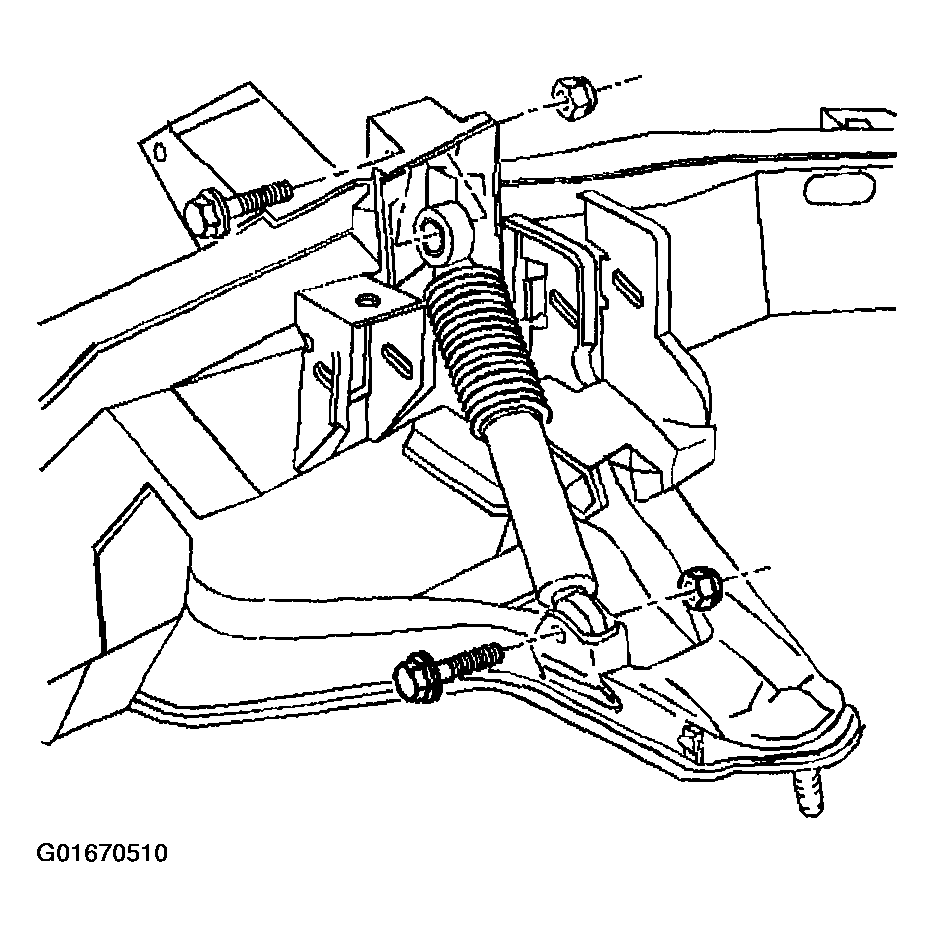

    Fig 1: Removing Shock Absorber Upper/Lower Mounting Nut And Bolt (4WD)
    G01670510Courtesy of GENERAL MOTORS CORP.
