Installation Procedure

  1. Install the shock absorber to the bracket.
  2. Install the upper and lower shock absorber bolts. Fit the bolts in the direction shown.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the upper and lower shock absorber nuts.

    Tighten

    • Tighten the shock absorber mounting nuts and the bolts with the front suspension loaded.
    • Tighten the shock absorber upper and lower mounting nuts to 73 N.m (54 lb ft).
  4. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  5. Lower the vehicle.

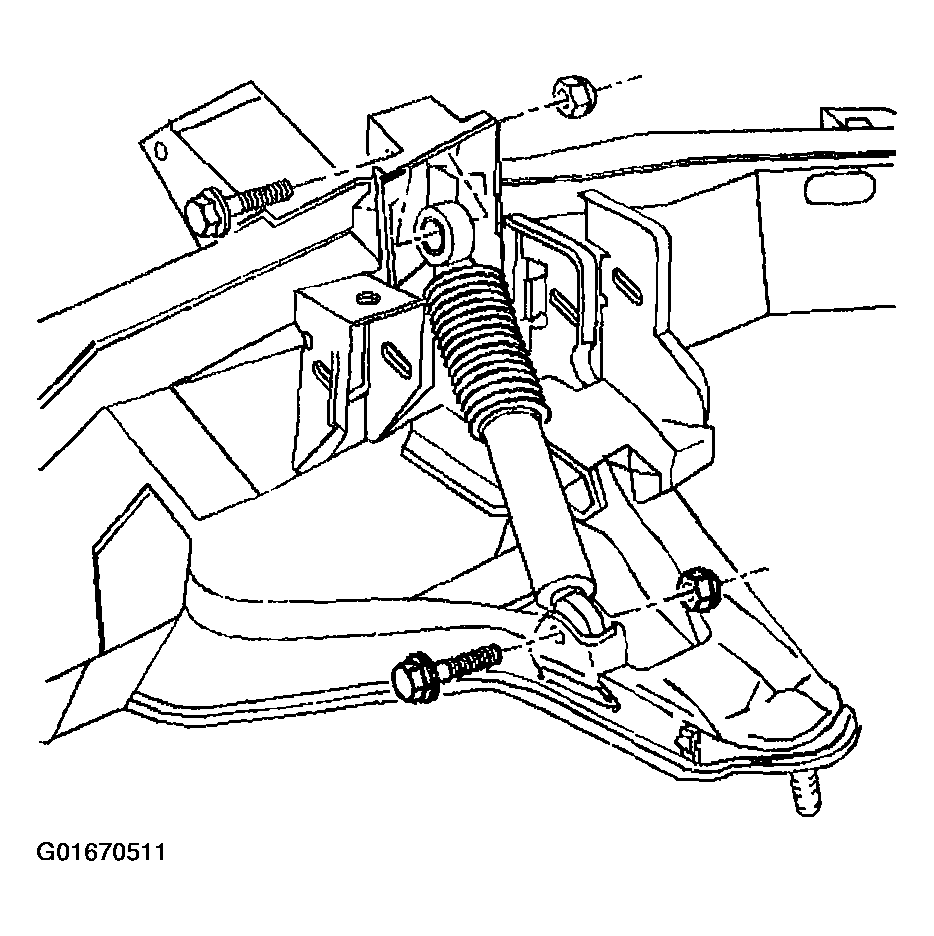

    Fig 1: Installing Shock Absorber Upper/Lower Mounting Nut And Bolt (4WD)
    G01670511Courtesy of GENERAL MOTORS CORP.
