Installation Procedure

  1. Install the lower control arm to the vehicle.
  2. Install the lower ball joint stud to the steering knuckle. Refer to Lower Ball Joint Replacement (RWD)  or Lower Ball Joint Replacement (4WD) .
  3. Install the front coil spring. Refer to Front Coil Springs Replacement .
  4. Check the front wheel alignment. Adjust if necessary. Refer to MEASURING WHEEL ALIGNMENT in Wheel Alignment.

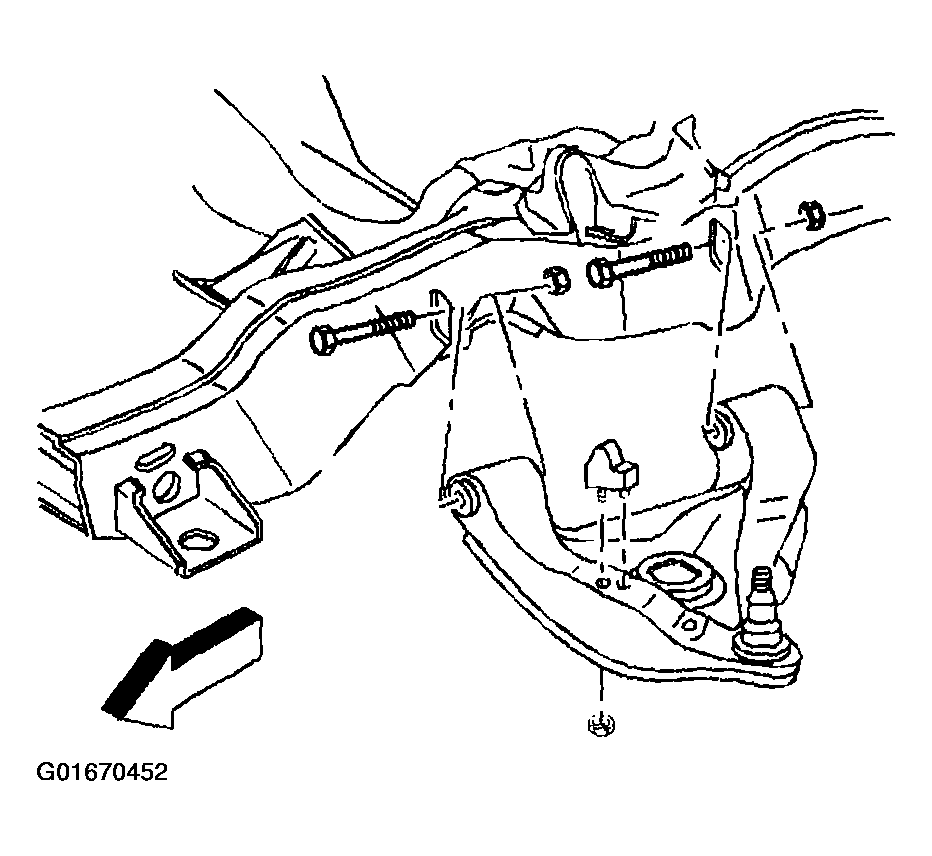

    Fig 1: Installing Lower Control Arm To Vehicle (RWD)
    G01670452Courtesy of GENERAL MOTORS CORP.
