Removal Procedure

  1. Remove the lower control arm. Refer to Lower Control Arm Replacement (RWD)  or Lower Control Arm Replacement (4WD) .
  2. Remove the front bushing. Use the J 21474-01  .

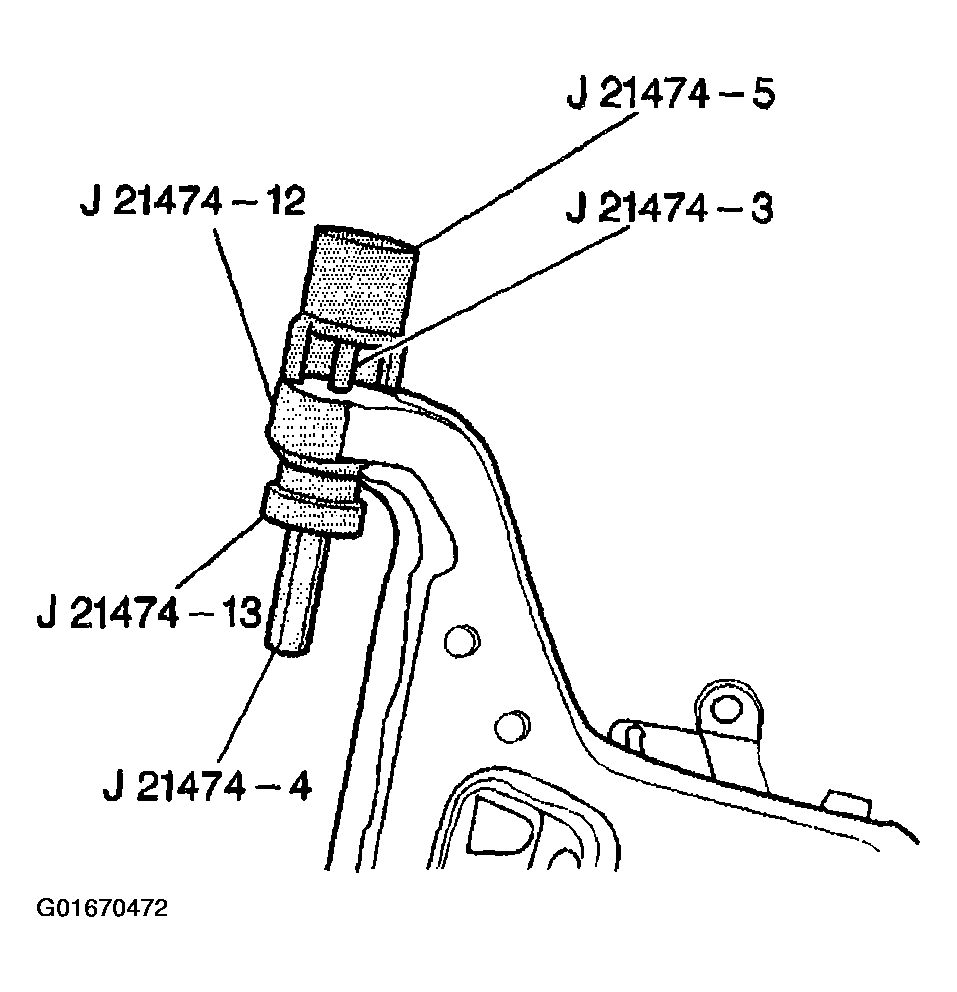

    Fig 1: Removing Front Bushing Using J 21474-01 (4WD)
    G01670472Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear bushing. Use the J 21474-01

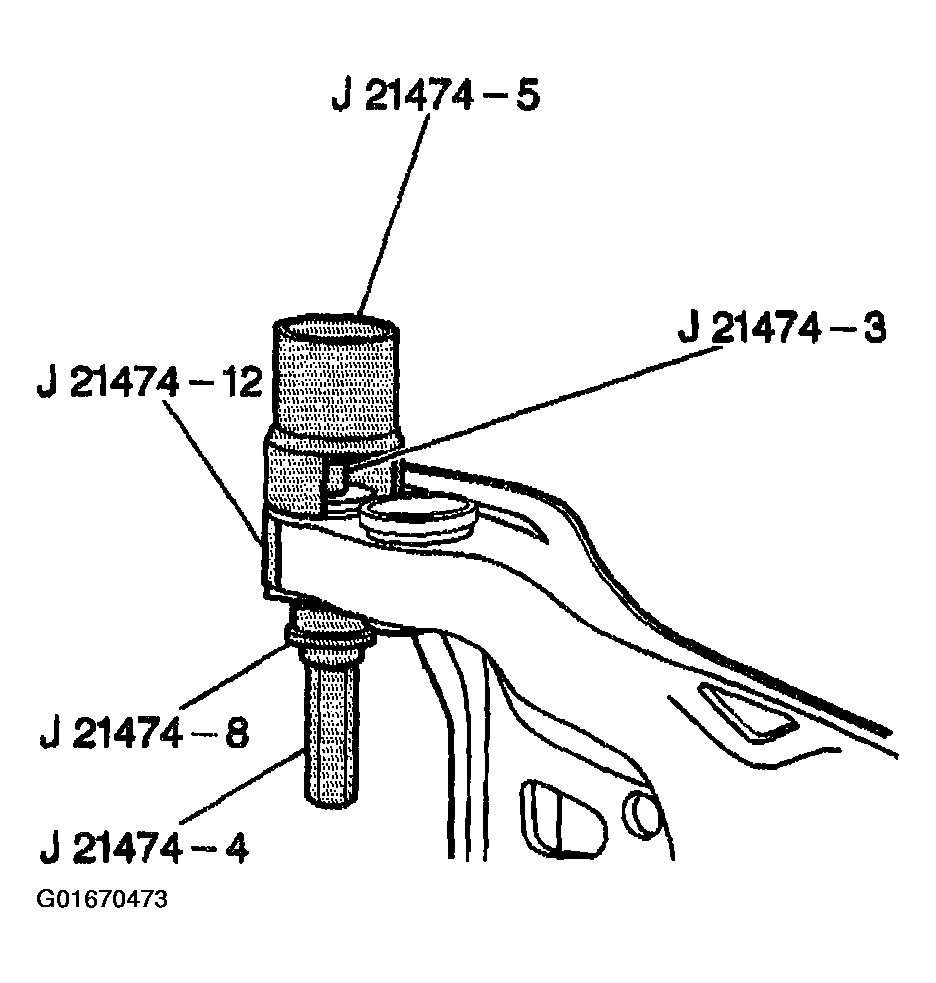

    Fig 2: Removing Rear Bushing Using J 21474-01 (4WD)
    G01670473Courtesy of GENERAL MOTORS CORP.
