Installation Procedure

  1. Install the front bushing. Use the J 21474-01

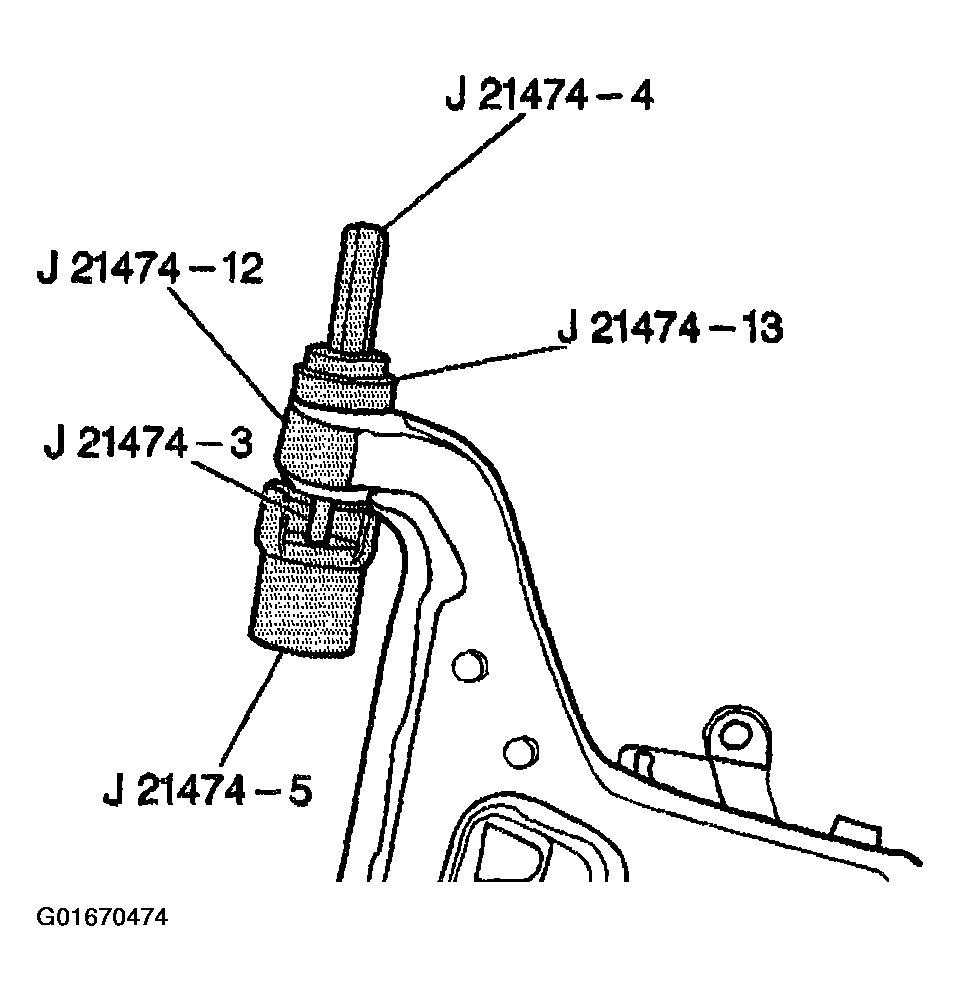

    Fig 1: Installing Front Bushing Using J 21474-01 (4WD)
    G01670474Courtesy of GENERAL MOTORS CORP.
  2. Install the rear bushing. Use the J 21474-01  .
  3. Install the lower control arm. Refer to Lower Control Arm Replacement (RWD)  or Lower Control Arm Replacement (4WD) .

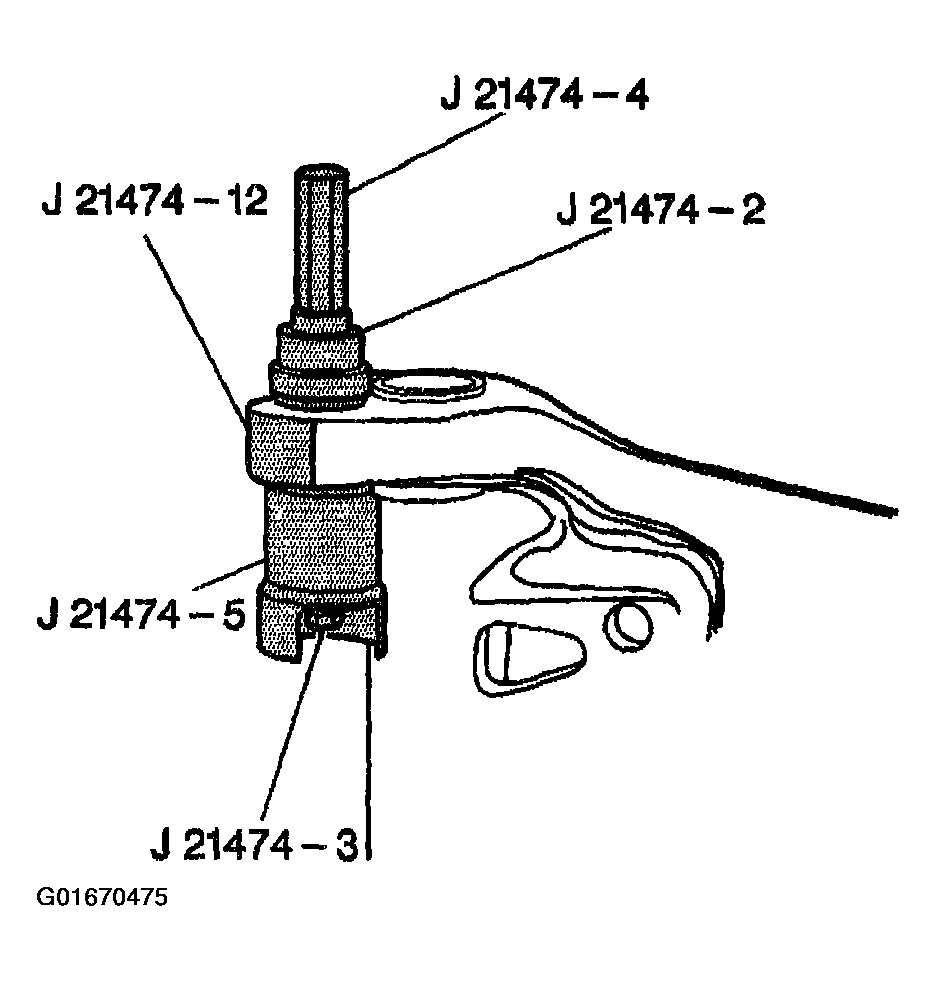

    Fig 2: Installing Rear Bushing Using J 21474-01 (4WD)
    G01670475Courtesy of GENERAL MOTORS CORP.
