Installation Procedure

  1. Install the lower ball joint to the lower control arm.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the lower ball joint retaining bolts and the nuts.

    Tighten

    Tighten the lower ball joint retaining nuts to 23 N.m (17 lb ft).

  3. Install the wheel drive shaft. Refer to AXLE SHAFT in Driveline/Axle.
  4. Load the torsion bar. Refer to Torsion Bar and Support Assembly Replacement .
  5. Install the tire and the wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.

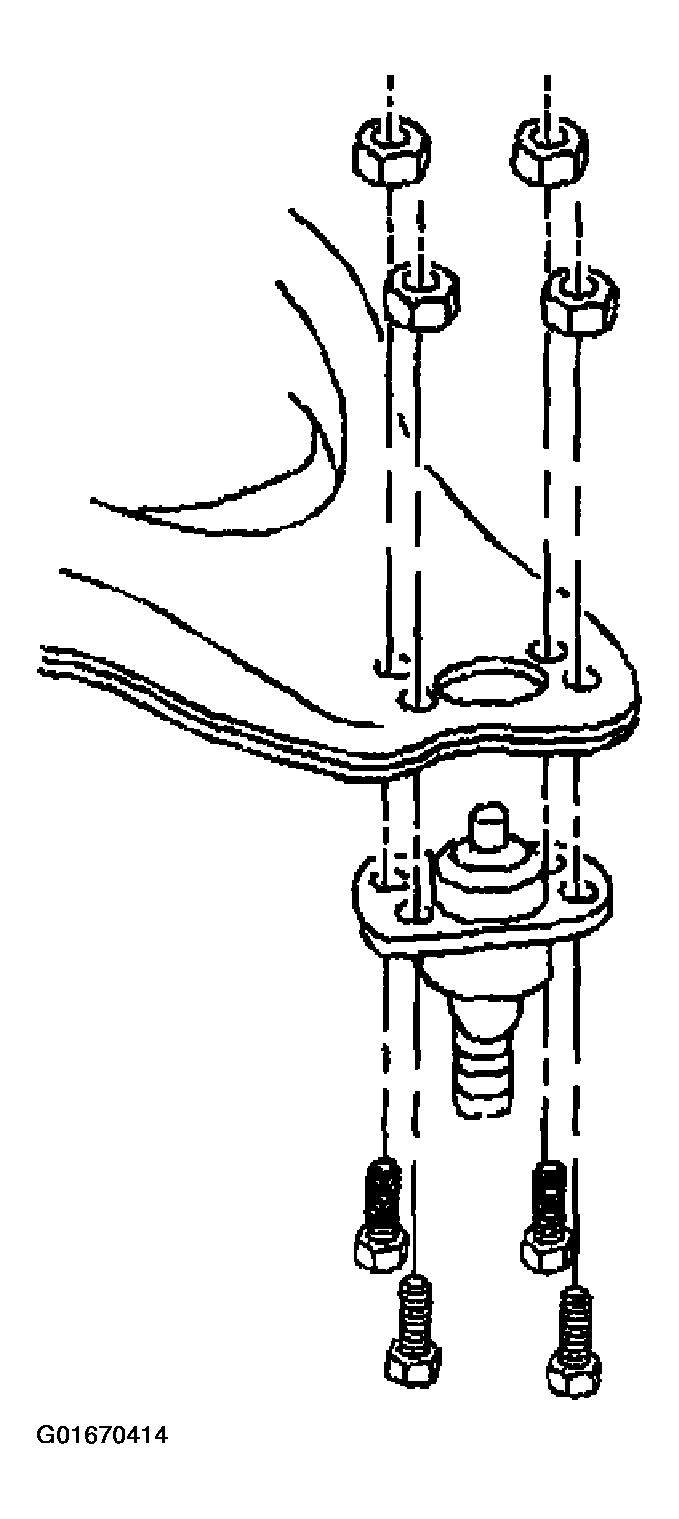

    Fig 1: Installing Lower Ball Joint Retaining Bolts And Nuts (RWD)
    G01670414Courtesy of GENERAL MOTORS CORP.
  6. Lower the vehicle.
  7. Check the front wheel alignment. Refer to MEASURING WHEEL ALIGNMENT in Wheel Alignment.
