Turn Signal Cancel Cam & Bearing Thrust Washer - Disassemble - Off Vehicle

Tools Required

• J 23653-SIR  Steering Column Lock Plate Compressor
• J 42137  Steering Column Lock Plate Compressor Adapter

1. Disable the inflatable restraint steering wheel module. Refer to DISABLING SYSTEM .

   Important:  Let the inflatable restraint steering wheel module coil hang freely after removal.

2. Remove the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil - Disassemble - Off Vehicle .
3. Remove the bearing retainer using J 23653-SIR  and J 42137  .
4. Remove J 23653-SIR  and J 42137  .
5. Discard the bearing retainer.

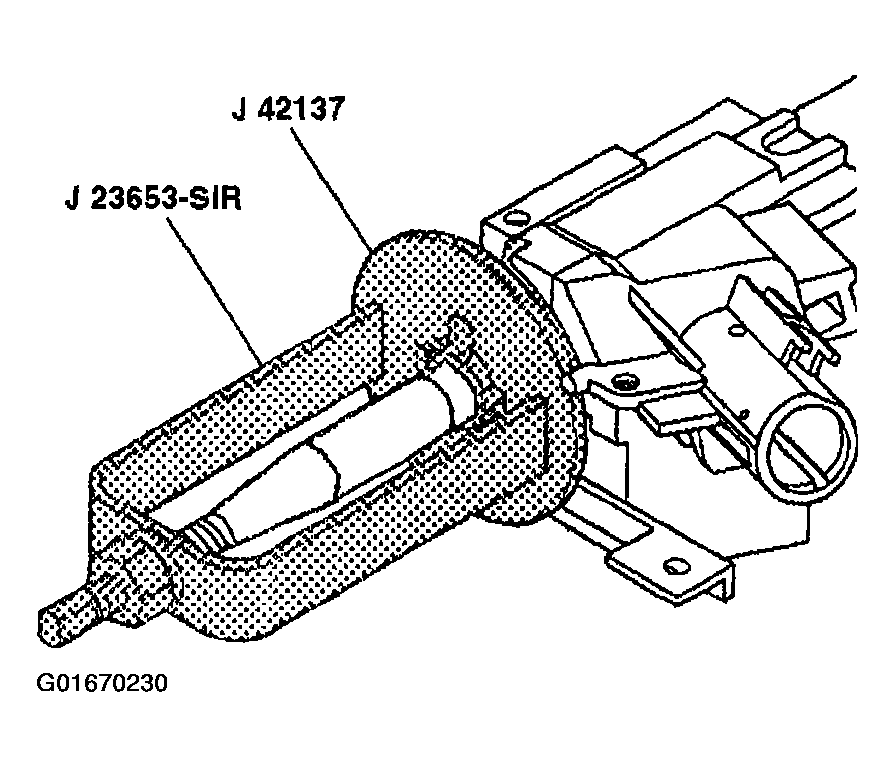

Fig 1: J 23653-SIR & J 42137
Courtesy of GENERAL MOTORS CORP.
6. Remove the following parts from the steering shaft assembly:
   1. 6.1. The cam orientation plate (4)
   2. 6.2. The turn signal cancel cam assembly (3)
   3. 6.3. The upper bearing spring (2)
   4. 6.4. The thrust washer (1)

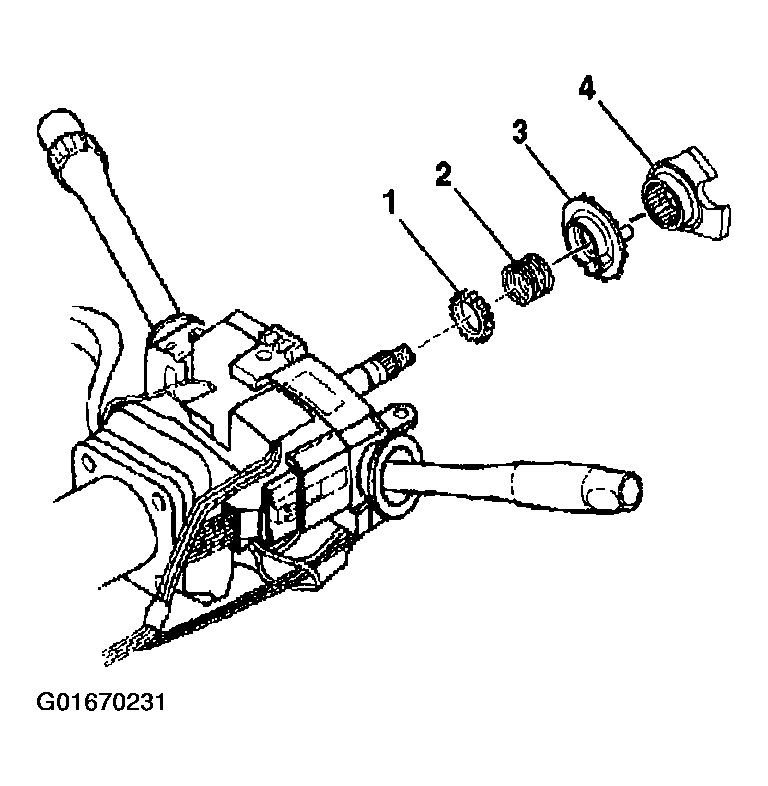

      Fig 2: Cam Orientation Plate, Turn Signal Cancel Cam Assembly, Upper Bearing Spring & Thrust Washer

      Courtesy of GENERAL MOTORS CORP.
