Removal Procedure

CAUTION: Refer to TILT SPRING CAUTION .
  1. Use the tilt lever to tilt the column to the UP position.
  2. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  3. Remove the tilt spring (1) in the following manner:
    1. 3.1. Pry the tilt spring up until a bulge occurs and most of the tilt spring tension is removed.
    2. 3.2. Secure the tilt spring with locking pliers and continue prying until the tilt spring disengages from the post of the steering column support assembly (3).

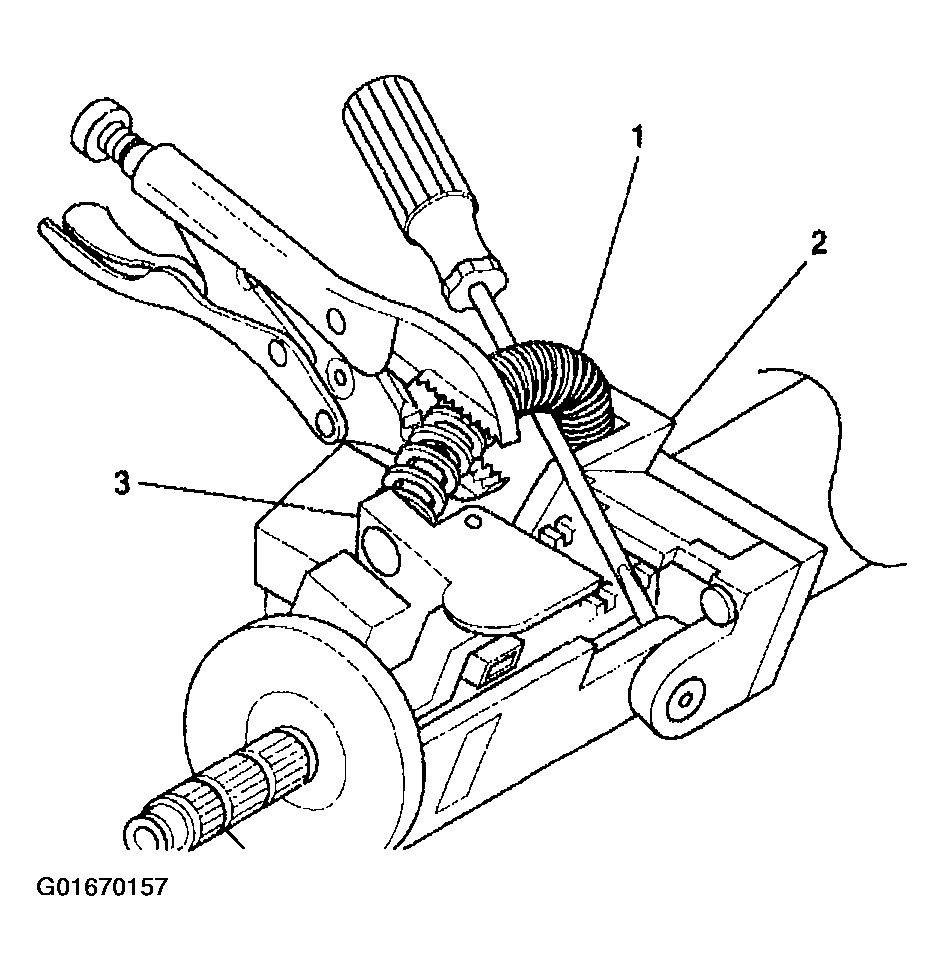

    4. Fig 1: Removing Tilt Spring
    G01670157Courtesy of GENERAL MOTORS CORP.
  4. Remove the spring guide (1) from the tilt spring (2).
    Fig 2: Removing Spring Guide From Tilt Spring
    G01670158Courtesy of GENERAL MOTORS CORP.
