Tilt Lever Replacement - On Vehicle
>>
Removal Procedure
Removal Procedure
Pull the tilt steering column lever (1) out from the steering column (2).

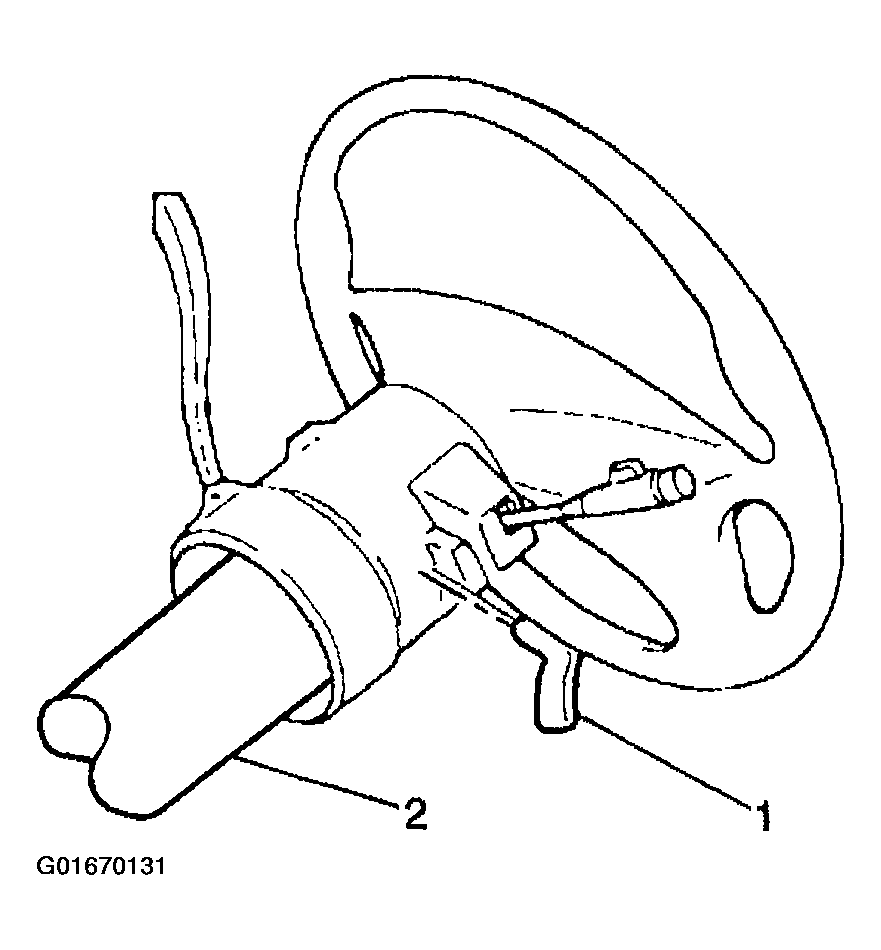

Fig 1: Removing Tilt Steering Column Lever
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
