Installation Procedure

  1. Install the upper steering column trim cover (2).
  2. For column shift vehicles, install the shifter boot to the upper steering column trim cover.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the upper steering column trim cover (2) retaining screw (1).

    Tighten

    Tighten the upper steering column trim cover retaining screw to 1.5 N.m (13 lb in).

    Fig 1: Installing Upper Steering Column Trim Cover & Retaining Screws
    G01670089Courtesy of GENERAL MOTORS CORP.
  4. Install the lower steering column trim cover by matching the tabs slots on the lower steering column trim cover with the locking tabs on the upper steering column trim cover and tilting the lower steering column trim cover up.
  5. For column shift vehicles, install the shifter boot to the lower steering column trim cover.

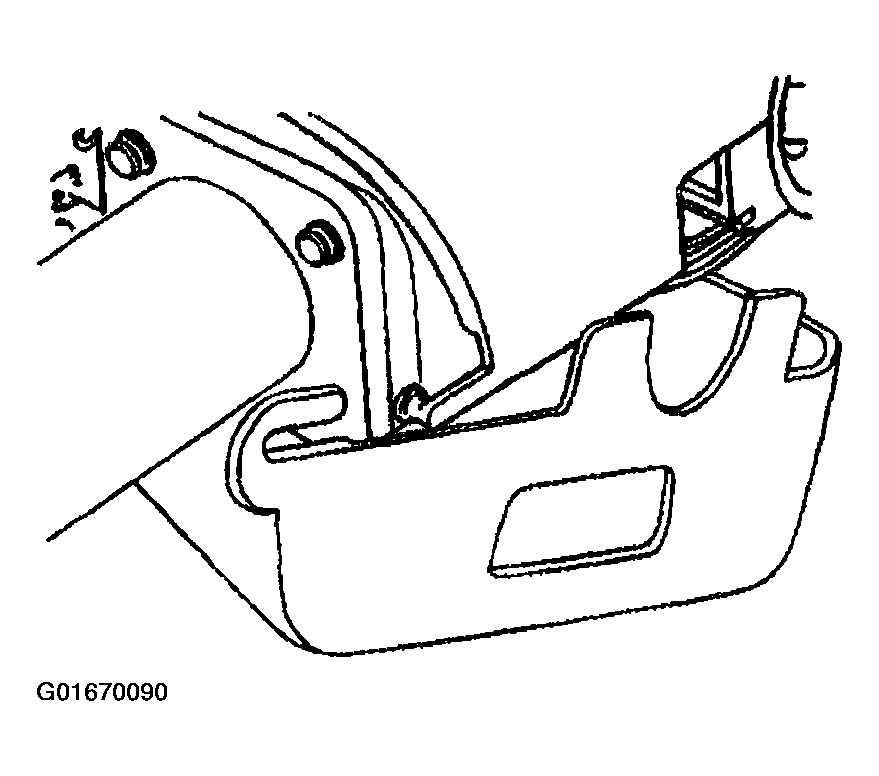

    Fig 2: Installing Lower Steering Column Trim Cover
    G01670090Courtesy of GENERAL MOTORS CORP.
  6. Install the lower steering column trim cover (2) retaining screws (1).

    Tighten

    Tighten the lower steering column trim cover retaining screws to 3.5 N.m (31 lb in).

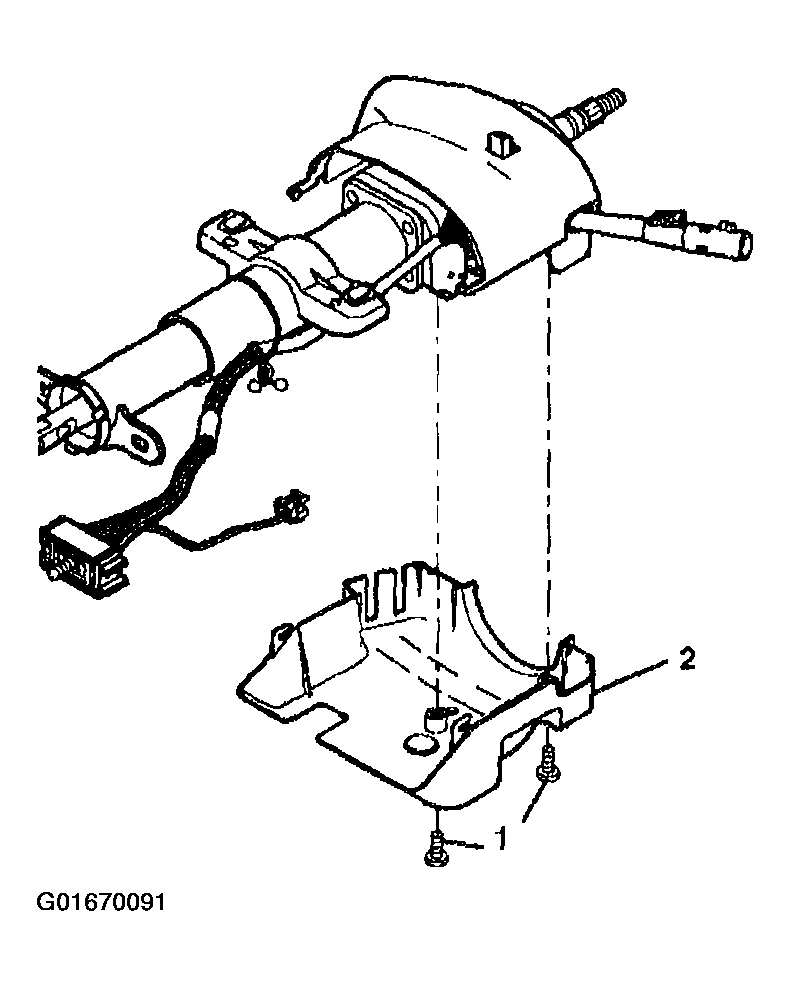

    Fig 3: Installing Lower Steering Column Trim Cover Retaining Screws
    G01670091Courtesy of GENERAL MOTORS CORP.
  7. Install the tilt steering column lever (1) to the steering column (2).
  8. Install the steering wheel. Refer to Steering Wheel Replacement .
  9. Install the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER .
  10. Enable the SIR system. Refer to ACTIVATING SYSTEM .

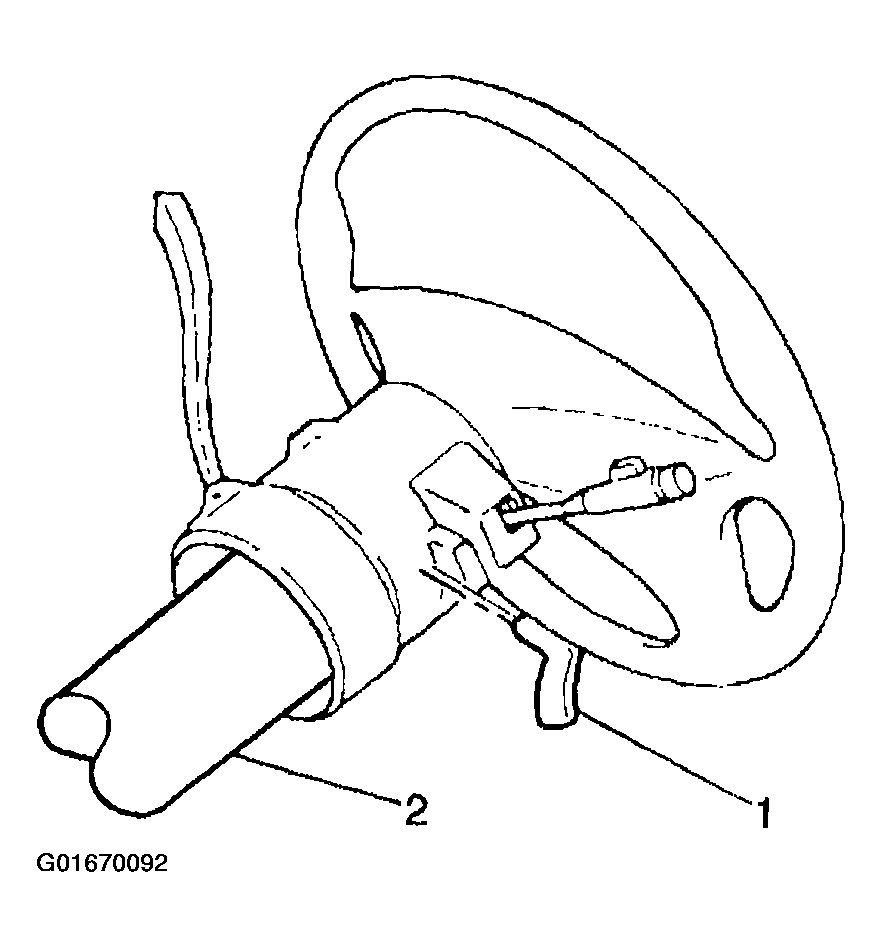

    Fig 4: Installing Tilt Steering Column Lever
    G01670092Courtesy of GENERAL MOTORS CORP.
