Steering Column Trim Covers - Disassemble - Off Vehicle (Floor Shift)

CAUTION: Refer to SIR CAUTION .
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING SYSTEM .
  2. Remove the steering wheel from the column. Refer to Steering Wheel Replacement .
  3. Remove the tilt lever from the lower trim cover. Refer to Tilt Lever Replacement - On Vehicle .
  4. Remove the 2 pan head tapping screws (1) from the lower trim cover (2).

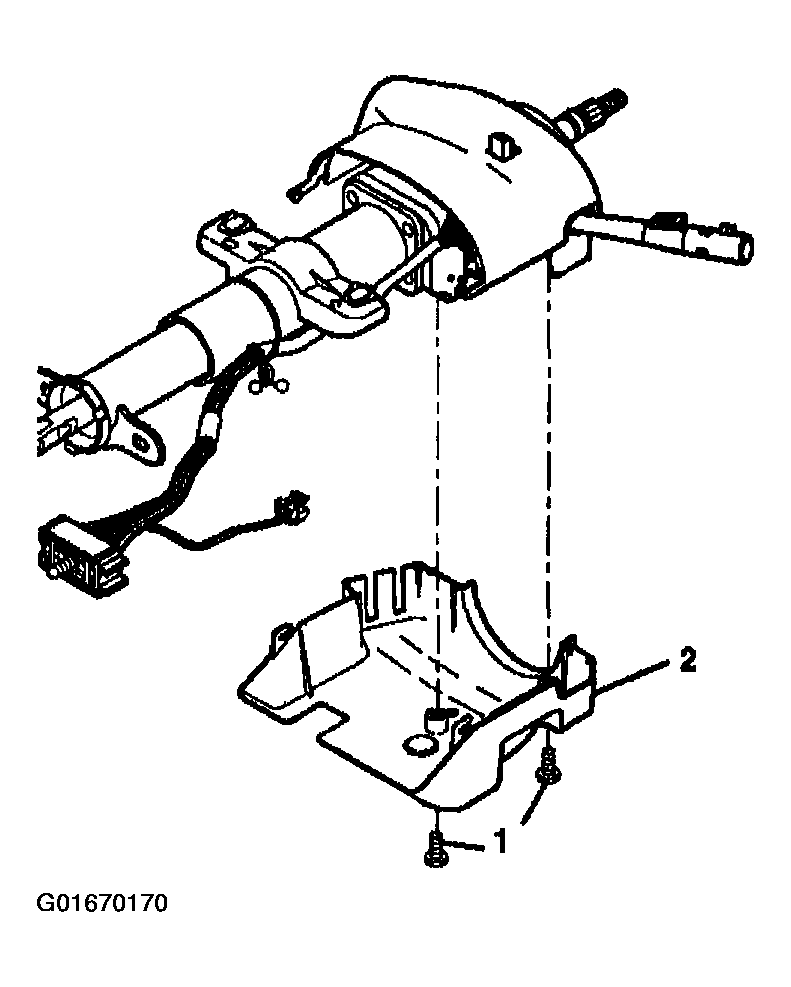

    Fig 1: Removing Screws From Lower Trim Cover (Floor Shift)
    G01670170Courtesy of GENERAL MOTORS CORP.
  5. Remove the lower trim cover from the upper trim cover by performing the following steps:
    1. 5.1. Tilt the lower trim cover down.
    2. 5.2. Slide the lower trim cover backward in order to disengage the locking tabs.

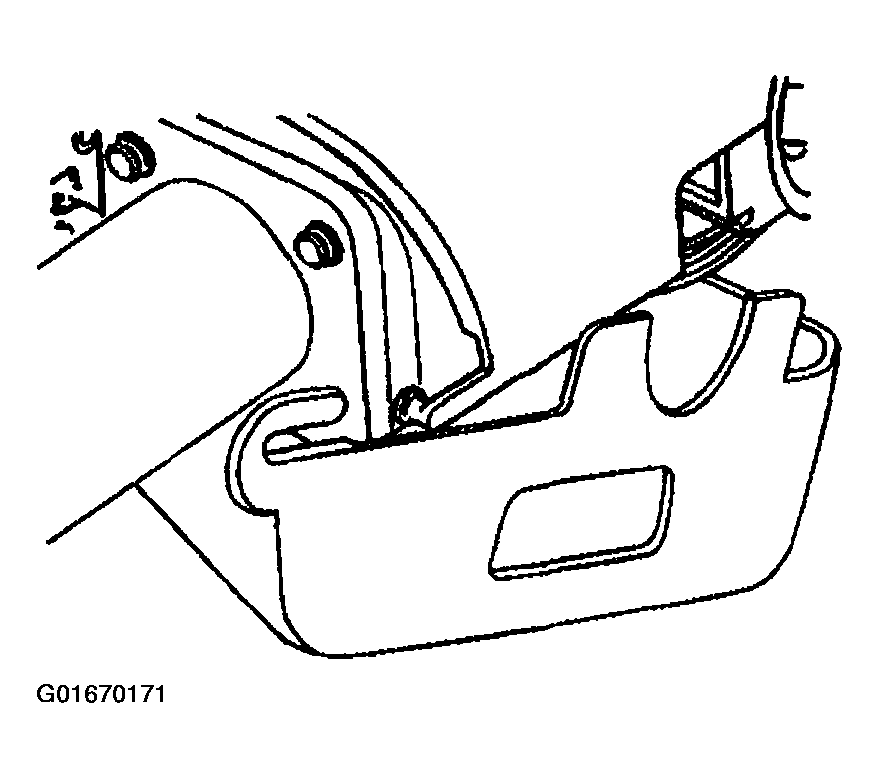

      Fig 2: Removing Lower Trim Cover From Upper Trim Cover (Floor Shift)
      G01670171Courtesy of GENERAL MOTORS CORP.
  6. Remove the 2 TORX® head screws (1) from the upper trim cover (2).
  7. Remove the upper trim cover (2) from the steering column.
    Fig 3: Removing Upper Trim Cover & Screws (Floor Shift)
    G01670172Courtesy of GENERAL MOTORS CORP.
