Home >> Chevrolet >> 2002 >> Blazer 4D Utility, 4WD, Part Time >> Repair and Diagnosis >> Steering >> Steering Wheel & Steering Column >> Repair Instructions >> Shift Lever Replacement - On Vehicle >> Removal Procedure

Removal Procedure

  1. Pull the shift lever seal away from the upper steering column trim cover.
  2. Remove the screw (2) that retains the shift lever to the steering column.
  3. Remove the shift lever (1) from the steering column.

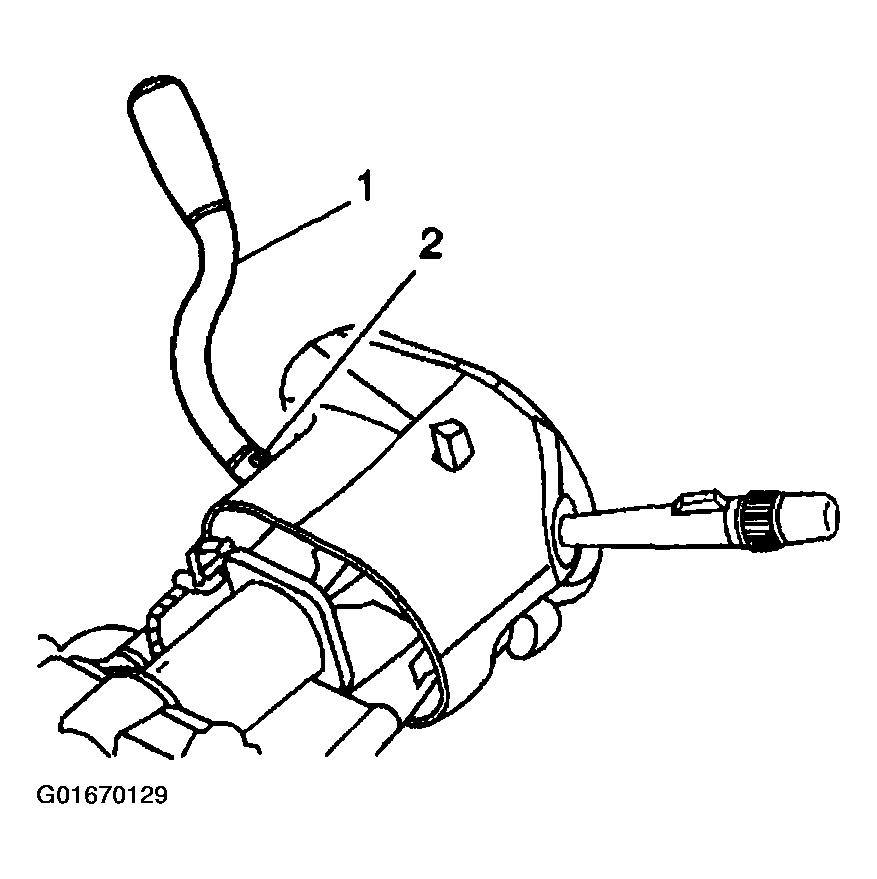

    Fig 1: Removing Shift Lever & Screw
    G01670129Courtesy of GENERAL MOTORS CORP.
