Installation Procedure

  1. Install the shift lever (1) to the steering column.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screw (2) that retains the shift lever to the steering column.

    Tighten

    Tighten the shift lever retaining screw to 22 N.m (16 lb ft).

  3. Install the shift lever seal to the upper steering column trim cover.

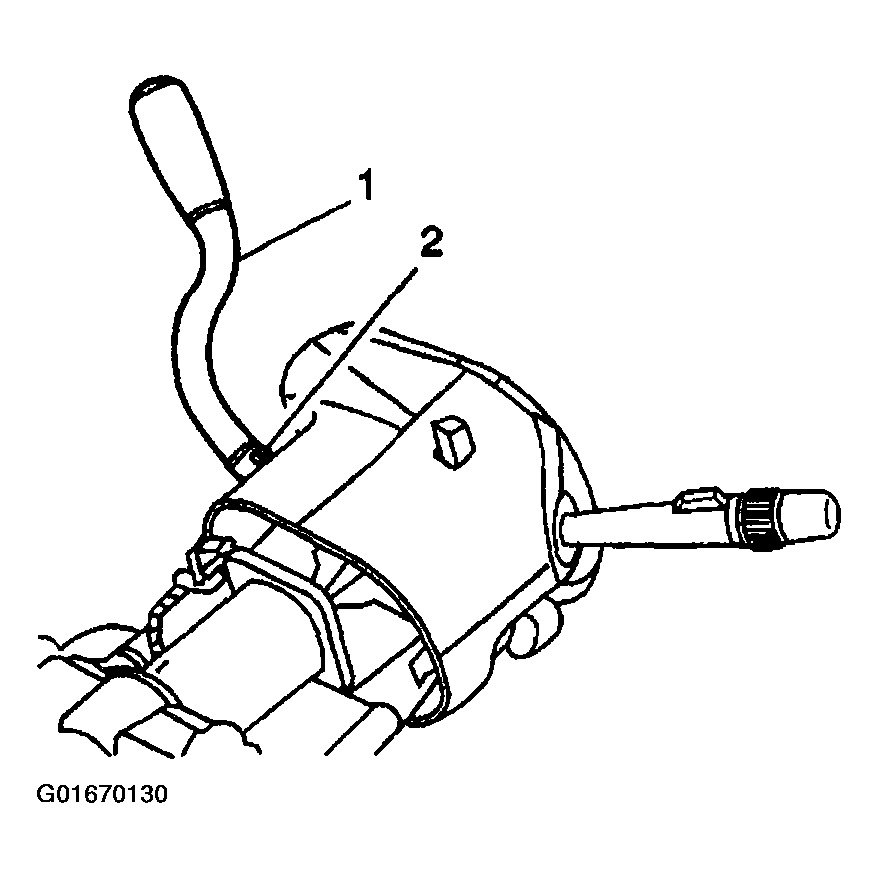

    Fig 1: Installing Shift Lever & Screw
    G01670130Courtesy of GENERAL MOTORS CORP.
