Installation Procedure

  1. Install the multifunction, turn signal, and hazard switch to the steering column.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the multifunction, turn signal, and hazard switch retaining screws.

    Tighten

    Tighten the multifunction, turn signal, and hazard switch retaining screws to 6 N.m (53 lb in).

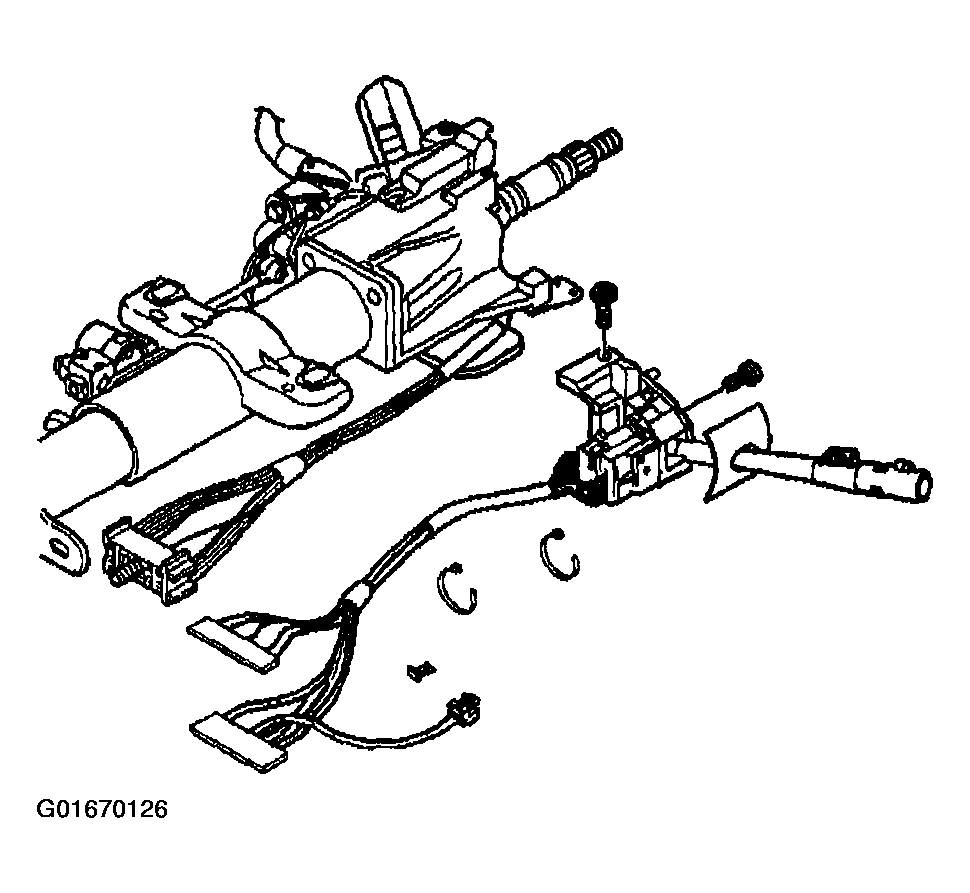

    Fig 1: Installing Multifunction, Turn Signal & Hazard Switch
    G01670126Courtesy of GENERAL MOTORS CORP.
  3. Install the multifunction, turn signal, and hazard switch electrical connectors (2) to the steering column bulkhead electrical connector (1).

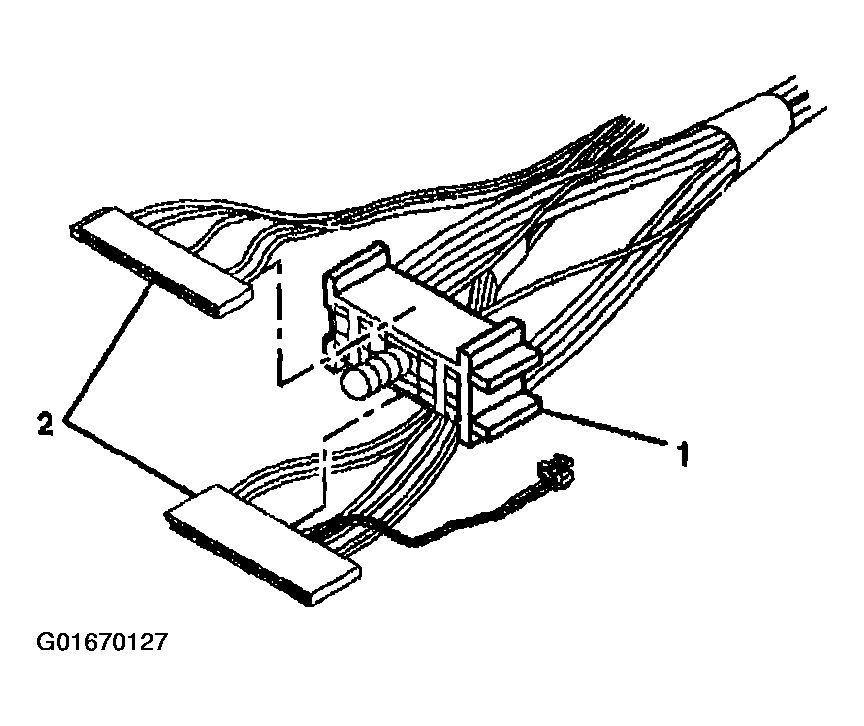

    Fig 2: Installing Multifunction, Turn Signal & Hazard Switch Electrical Connectors
    G01670127Courtesy of GENERAL MOTORS CORP.
  4. Install the steering column bulkhead electrical connector to the vehicle wire harness.
  5. Install the wire straps on the steering column wire harness.
  6. Install the steering column upper and lower trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  7. Tighten the steering column bracket nuts.

    Tighten

    Tighten the steering column bracket nuts to 30 N.m (22 lb ft).

  8. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
  9. Enable the SIR system. Refer to ACTIVATING SYSTEM .

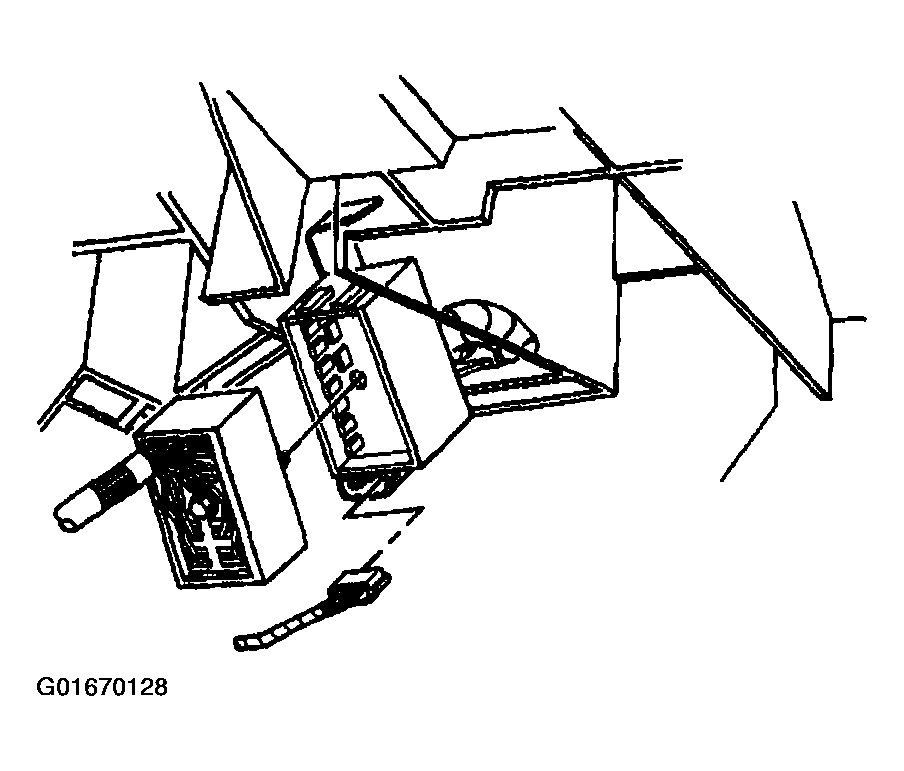

    Fig 3: Installing Steering Column Bulkhead Electrical Connector
