Removal Procedure

CAUTION: Refer to SIR CAUTION .

Disable the SIR system. Refer to DISABLING SYSTEM .
Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
Remove the steering column trim covers from the steering column. Refer to Steering Column Trim Covers Replacement - On Vehicle .

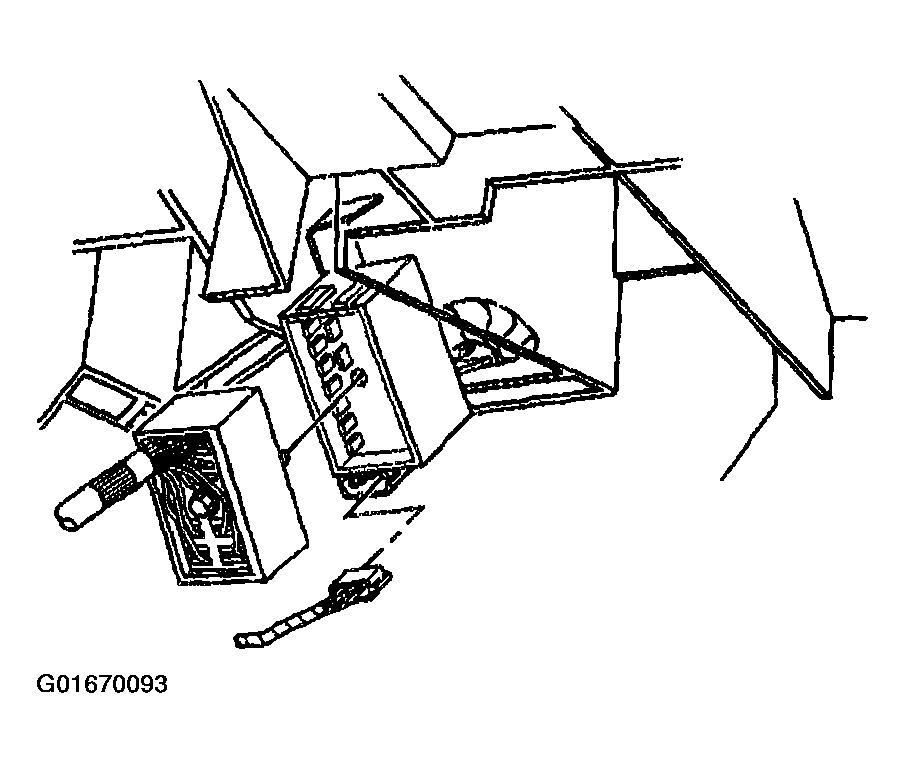

Disconnect the steering column bulkhead electrical connectors.

Fig 1: Disconnecting Steering Column Bulkhead Electrical Connectors
Courtesy of GENERAL MOTORS CORP.

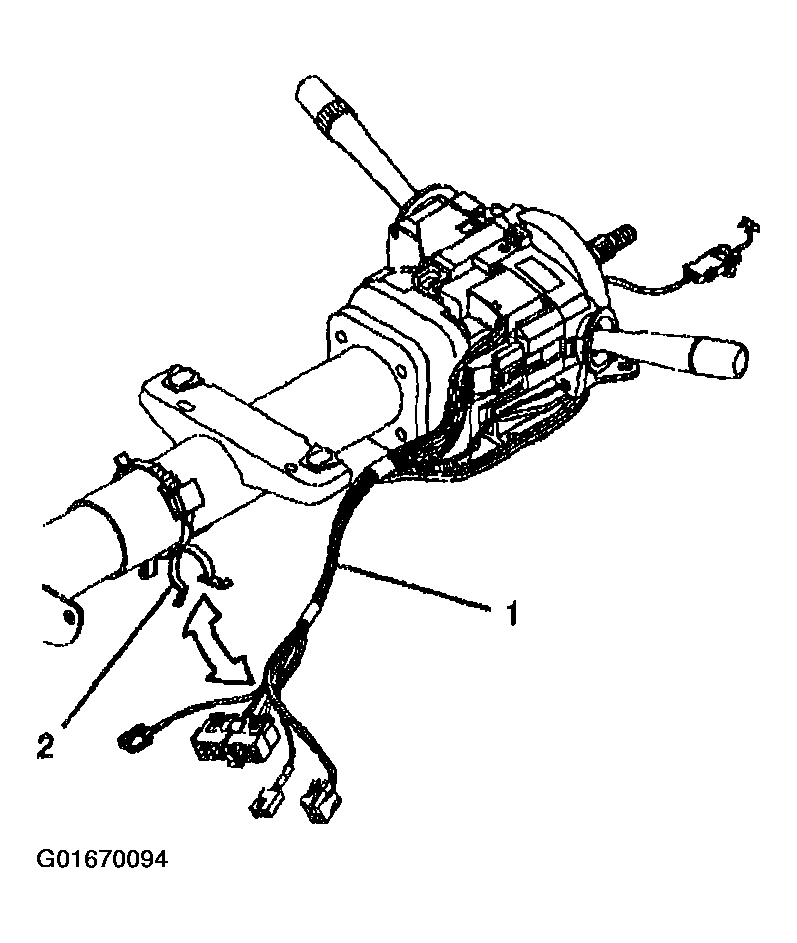

Remove the wire harness (1) from the wire harness strap (2) and the steering column.

Fig 2: Removing Wire Harness From Strap
Courtesy of GENERAL MOTORS CORP.

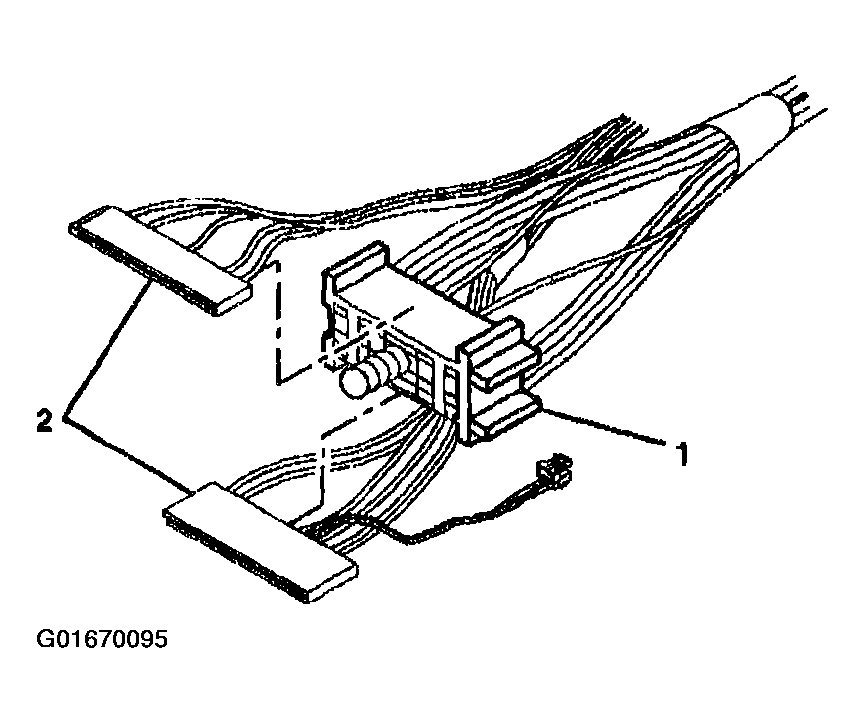

Slide the connectors (2) of the turn signal and multifunction switch out of the bulkhead connector (1).

Fig 3: Sliding Connectors Out Of Bulkhead Connector
Courtesy of GENERAL MOTORS CORP.

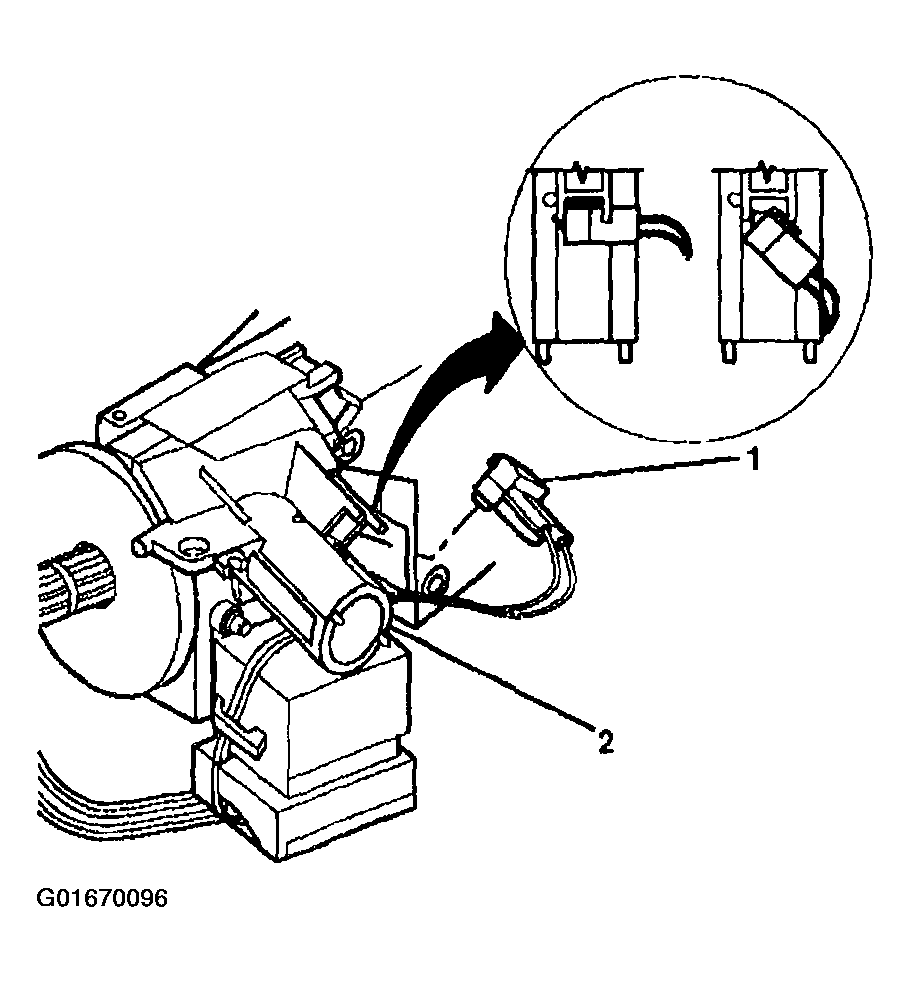

Remove the key alarm connector (1) from the lock module (2) in the following way:
1. 7.1. Rotate the key alarm connector (1) 90 degrees.
2. 7.2. Pull the key alarm connector (1) out of the lock module (2).
3. 7.3. Remove the passkey electrical connector from the lock module (2).

  Fig 4: Removing Key Alarm Connector From Lock Module
  Courtesy of GENERAL MOTORS CORP.

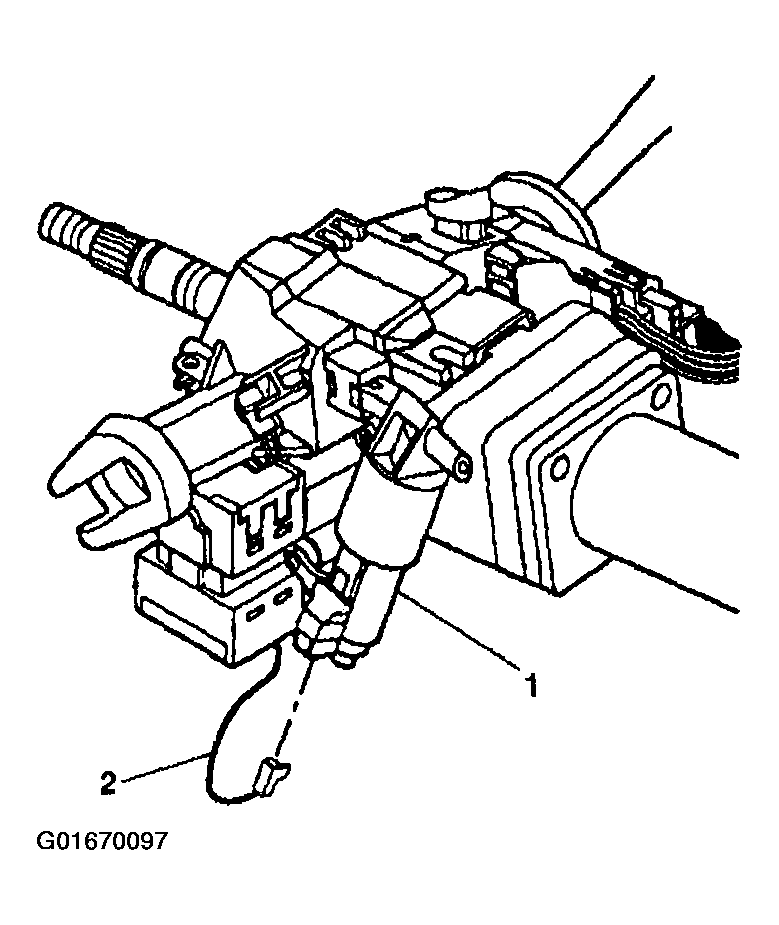

Disconnect the electrical connector (2) from the electric park lock (1), for vehicles equipped with floor shifter.

Fig 5: Disconnecting Electrical Connector From Electric Park Lock
Courtesy of GENERAL MOTORS CORP.

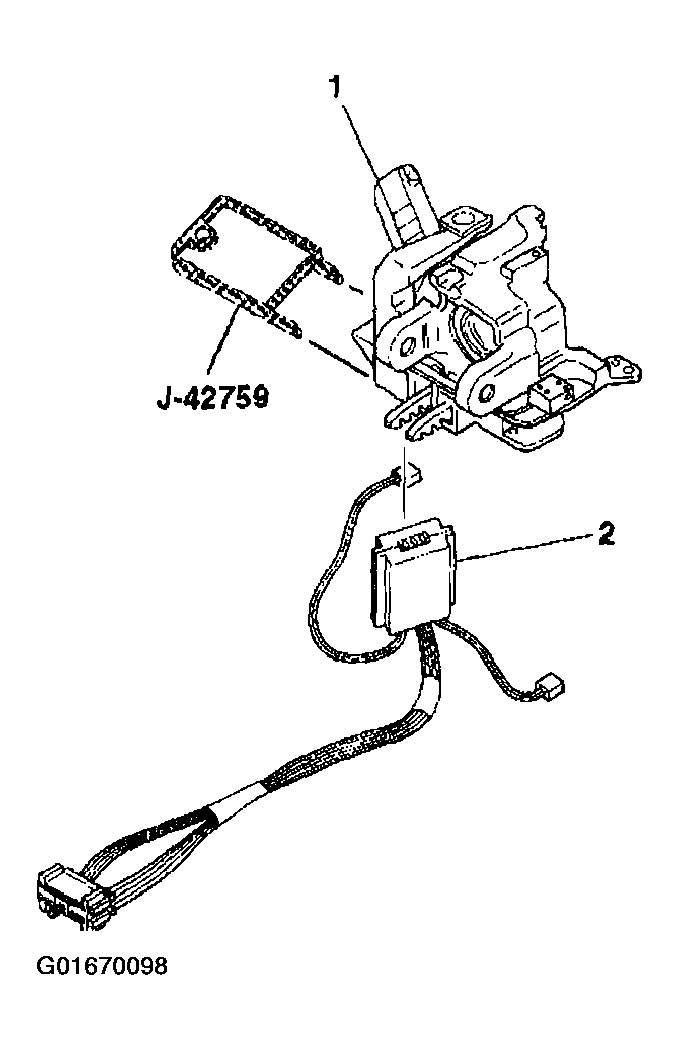

Disengage the ignition switch releasing tabs by using J 42759 .
Remove the ignition switch (2) from the lock module (1).

Fig 6: Removing Ignition Switch Using J 42759
Courtesy of GENERAL MOTORS CORP.
