Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
    CAUTION: Refer to SIR CAUTION .
  2. Disable the SIR system. Refer to DISABLING SYSTEM .
  3. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  4. Turn the ignition lock cylinder to the start position.
  5. Using an awl, insert the tip into the ignition lock cylinder access hole (1).
  6. Push down and hold the ignition lock cylinder retaining pin.

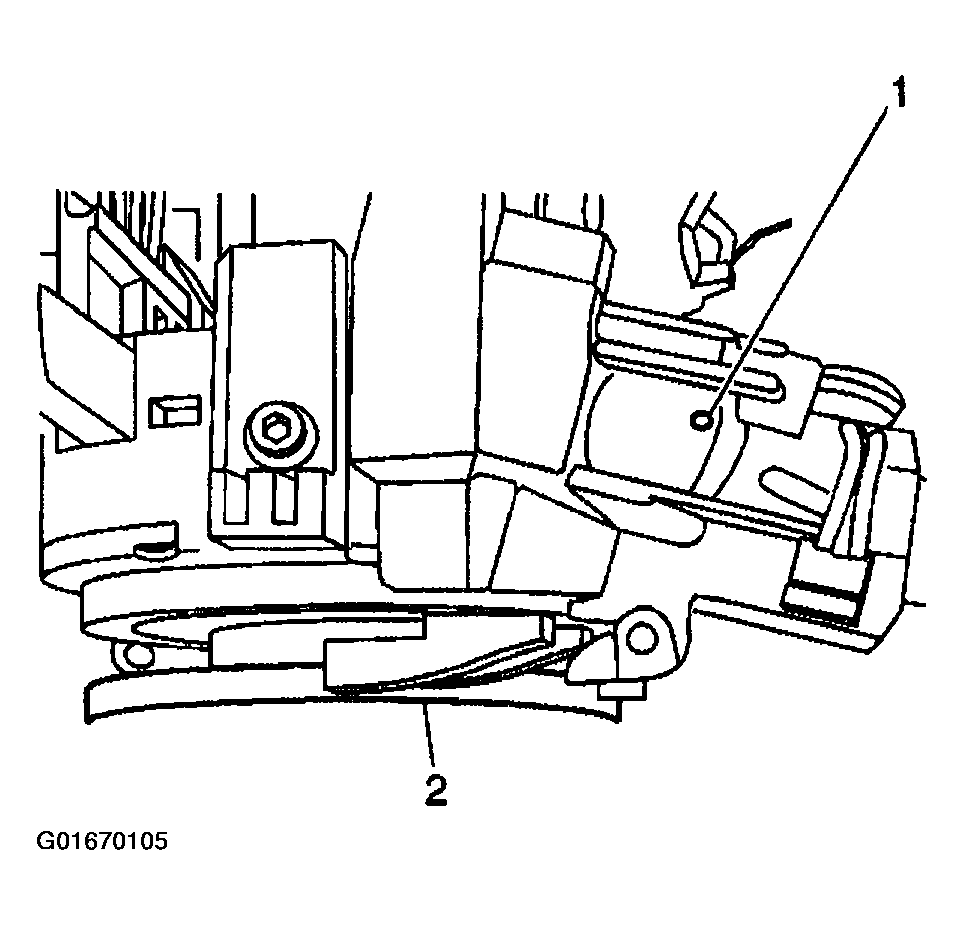

    Fig 1: View Of Ignition Lock Cylinder Access Hole
    G01670105Courtesy of GENERAL MOTORS CORP.
  7. Release the ignition lock cylinder to the run position.
  8. Remove the ignition lock cylinder by pulling the ignition lock cylinder away from the steering column.

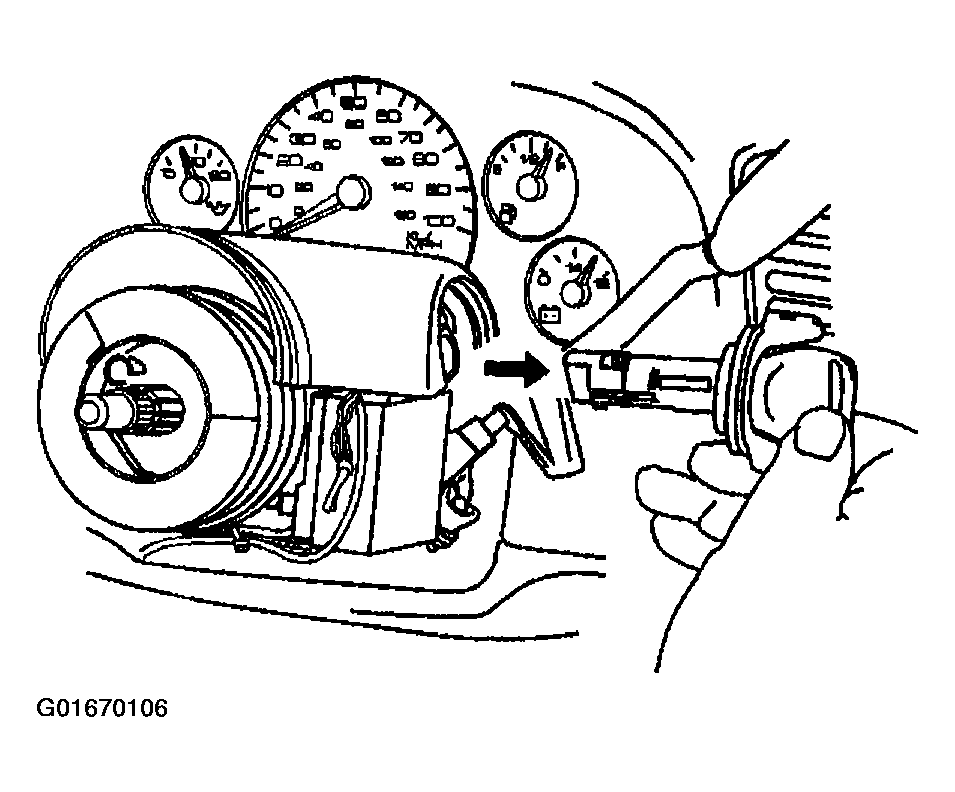

    Fig 2: Removing Ignition Lock Cylinder
    G01670106Courtesy of GENERAL MOTORS CORP.
