Removal Procedure

CAUTION: Refer to SIR CAUTION .
  1. Disable the SIR system. Refer to DISABLING SYSTEM .
  2. Remove the inflator module. Refer to AIR BAG MODULES .
  3. Remove the horn plunger from the steering column by pressing inward to the stop and rotating horn plunger 90 degrees.

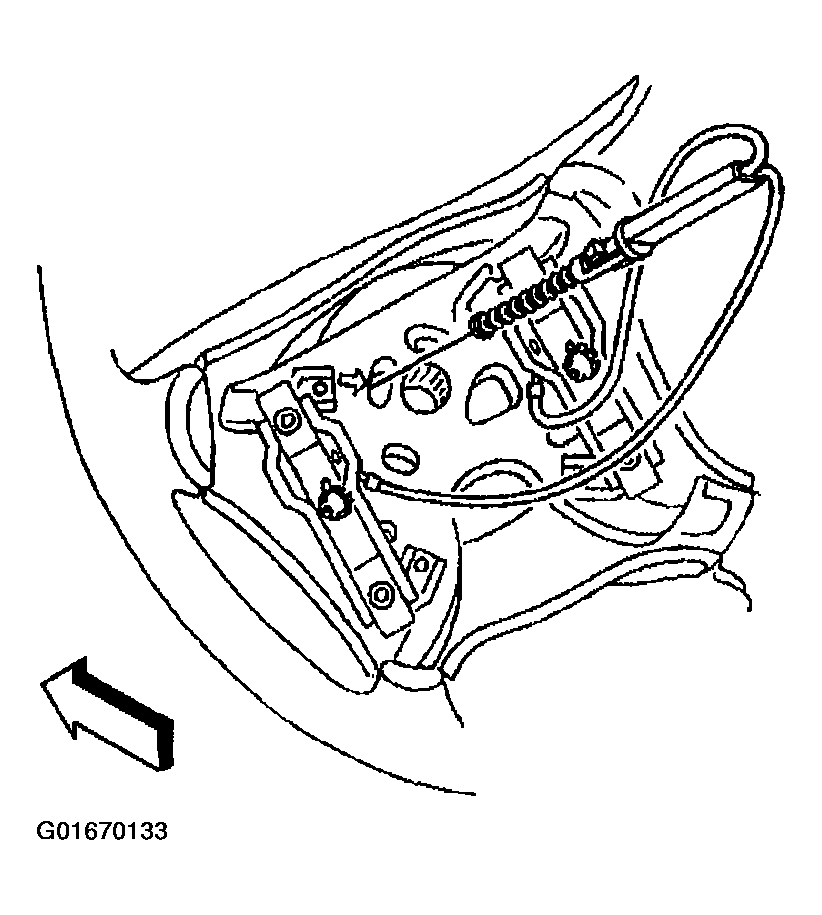

    Fig 1: Removing Horn Plunger From Steering Column
    G01670133Courtesy of GENERAL MOTORS CORP.
  4. Remove the horn contact plate retaining screws from the steering wheel.
  5. Remove the horn plunger from the steering wheel.

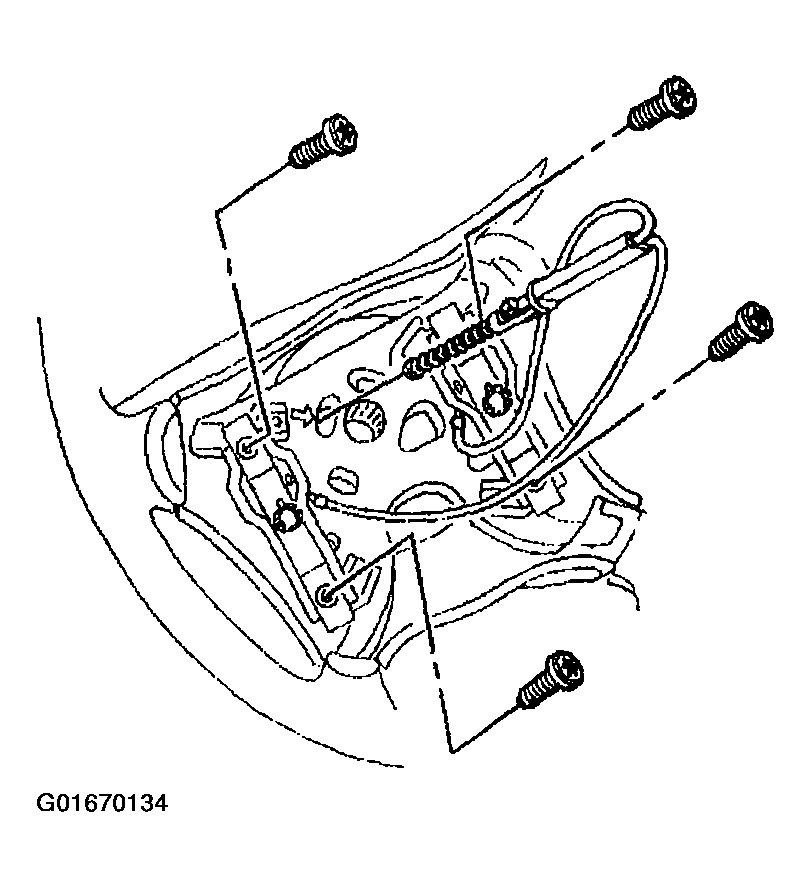

    Fig 2: Removing Horn Contact Plate Retaining Screws & Horn Plunger From Steering Wheel
    G01670134Courtesy of GENERAL MOTORS CORP.
