Installation Procedure

  1. Install the horn plunger to the steering wheel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the horn contact plate retaining screws to the steering wheel.

    Tighten

    Tighten the horn contact plate retaining screws to 5.5 N.m (50 lb in).

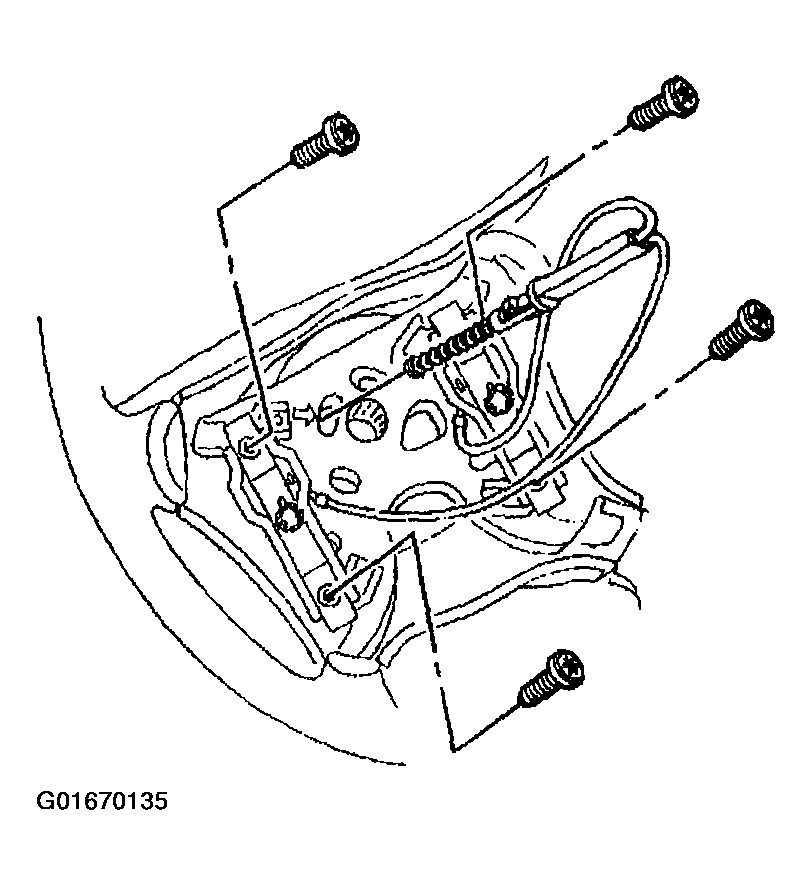

    Fig 1: Installing Horn Plunger & Horn Contact Plate Retaining Screws To Steering Wheel
    G01670135Courtesy of GENERAL MOTORS CORP.
  3. Install the horn plunger to the steering column.
  4. Install the inflator module. Refer to AIR BAG MODULES .
  5. Enable the SIR system. Refer to ACTIVATING SYSTEM .

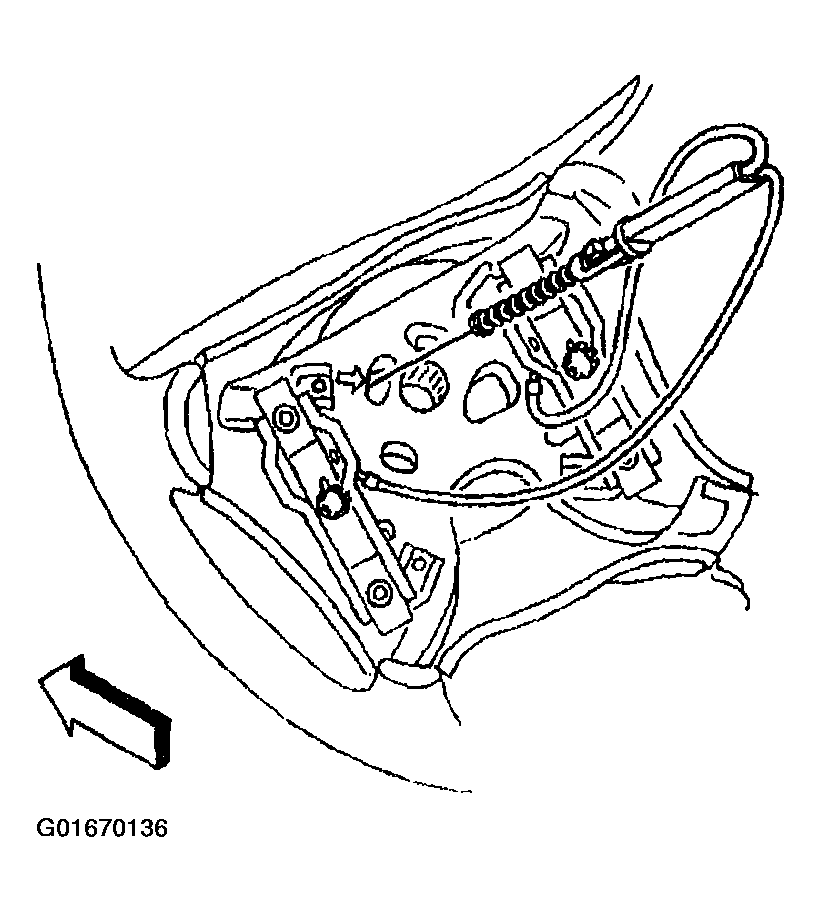

    Fig 2: Installing Horn Plunger To Steering Column
    G01670136Courtesy of GENERAL MOTORS CORP.
