Looseness in Steering Column
Looseness in Steering Column

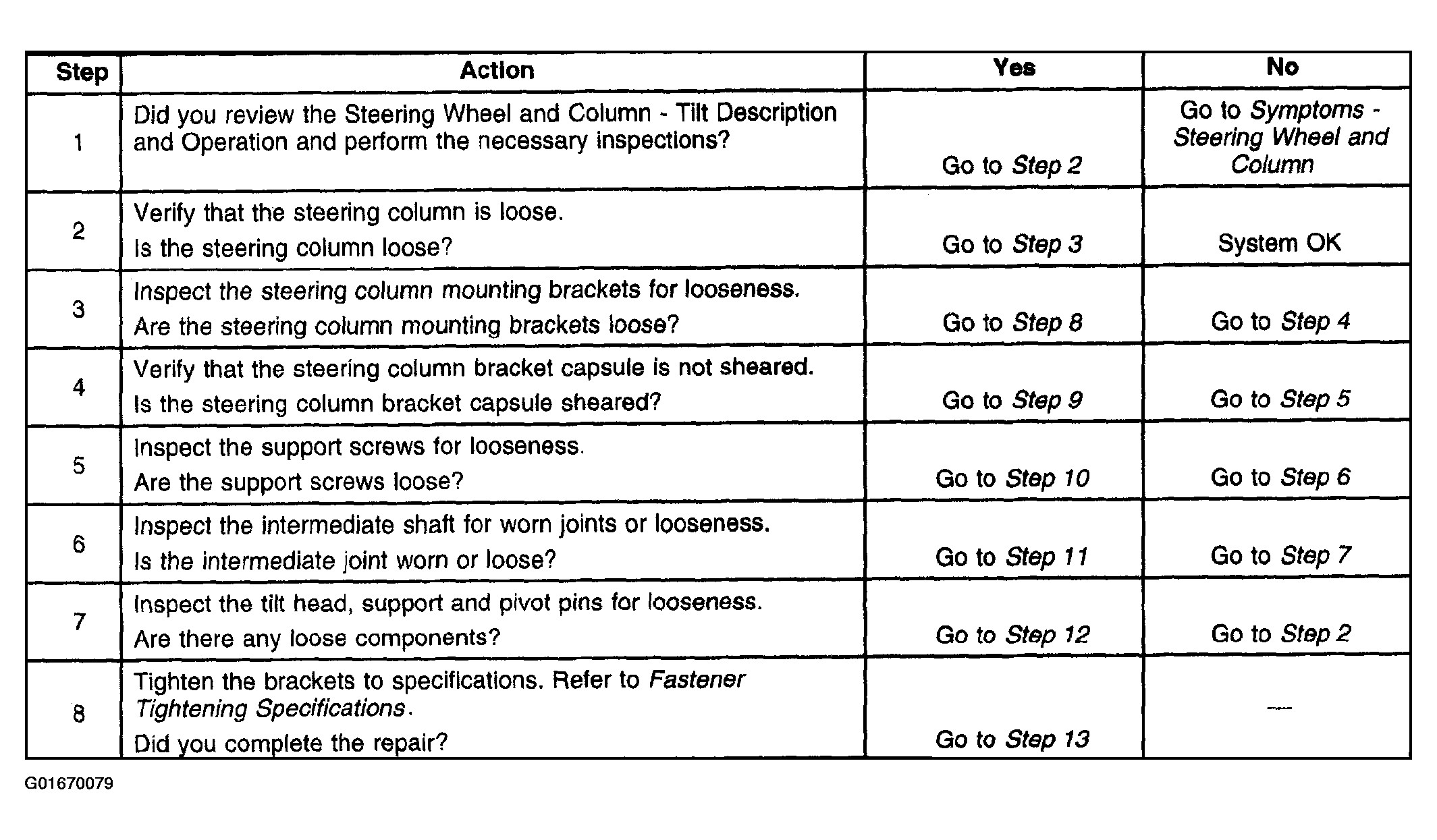

Fig 1: Looseness In Steering Column (Steps 1-8)
Courtesy of GENERAL MOTORS CORP.

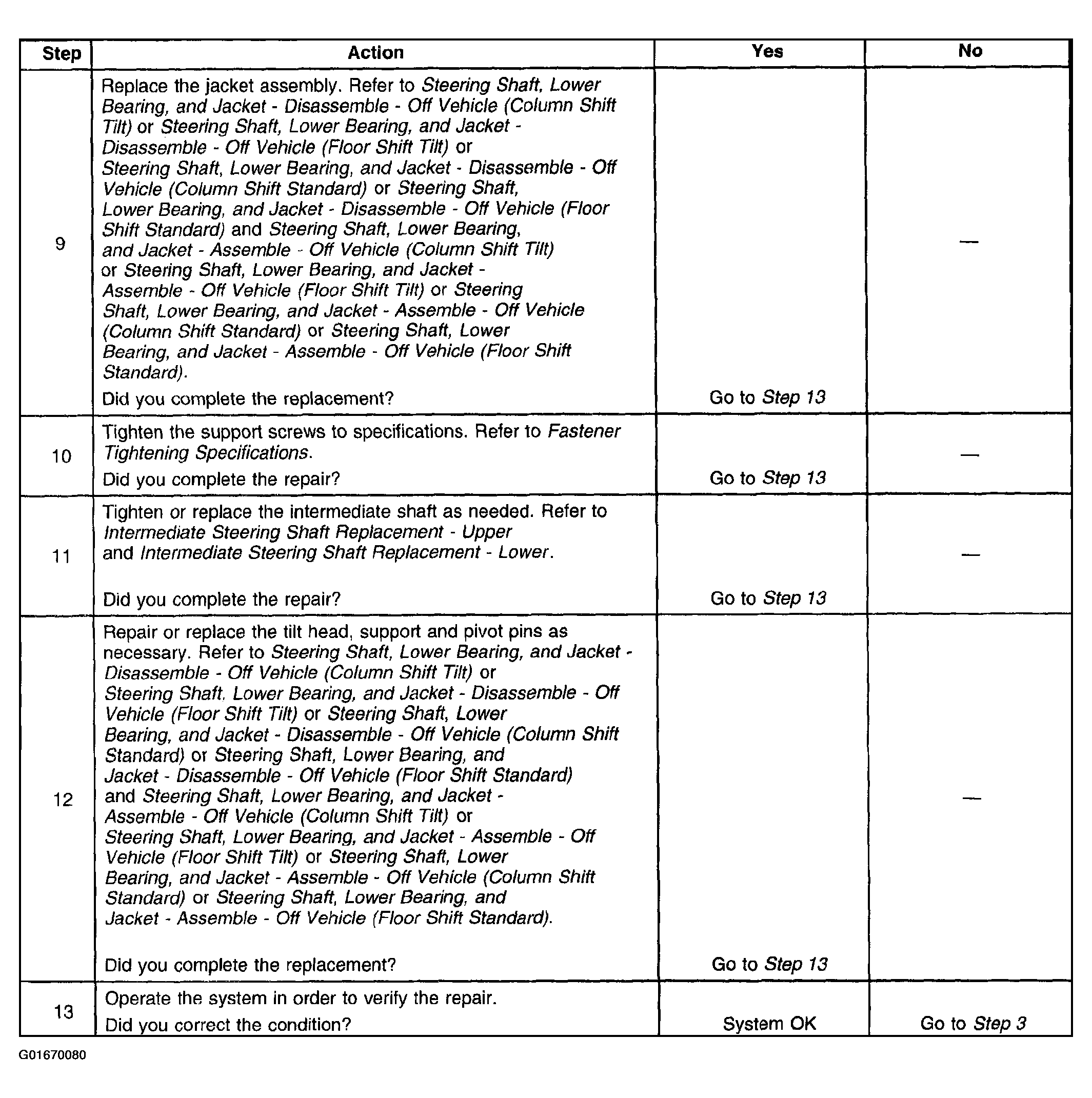

Fig 2: Looseness In Steering Column (Steps 9-13)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
