Lock System Sticks in Start

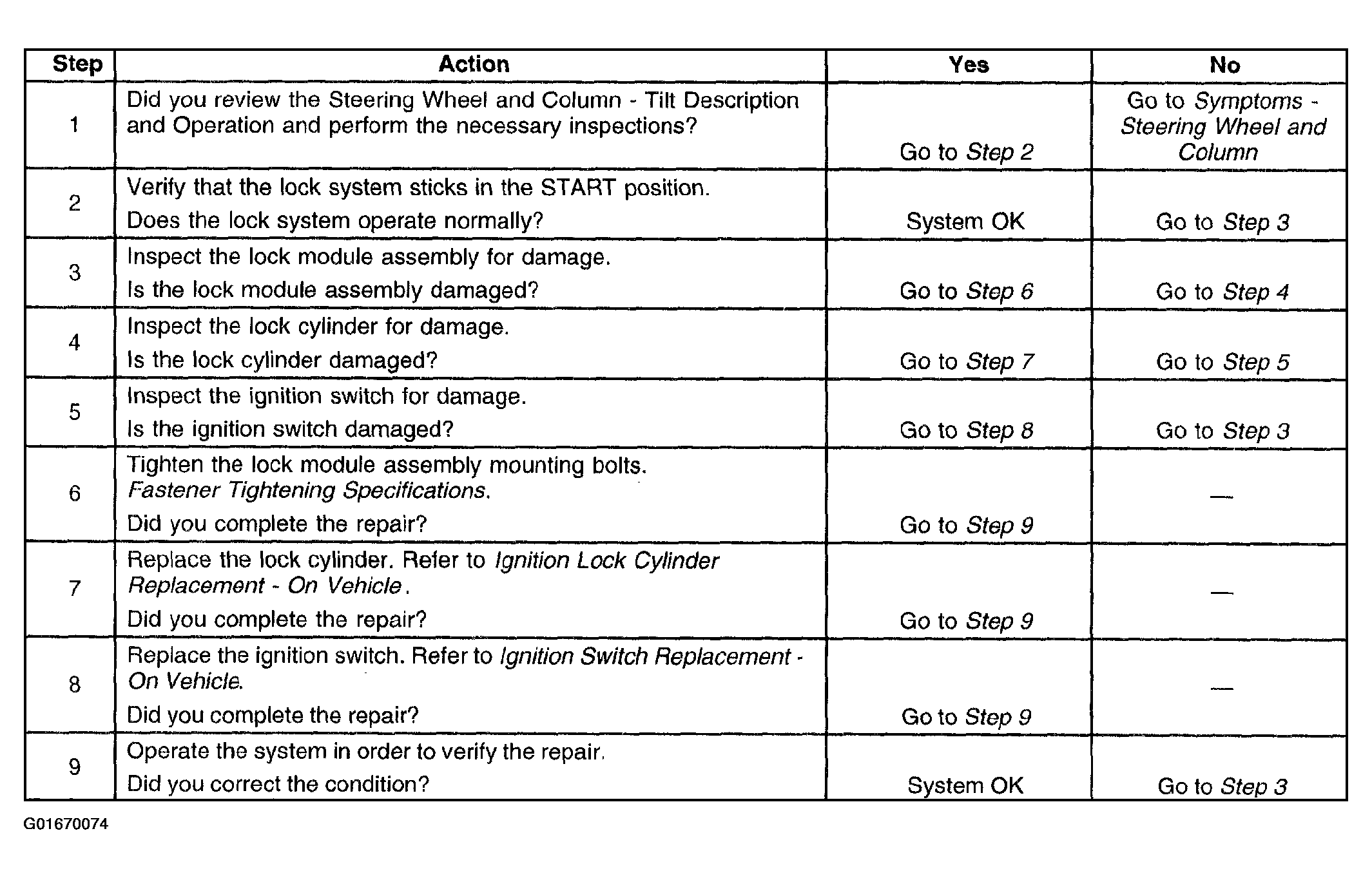

Fig 1: Lock System Sticks In Start

G01670074

Courtesy of GENERAL MOTORS CORP.
