Lock System Does Not Lock

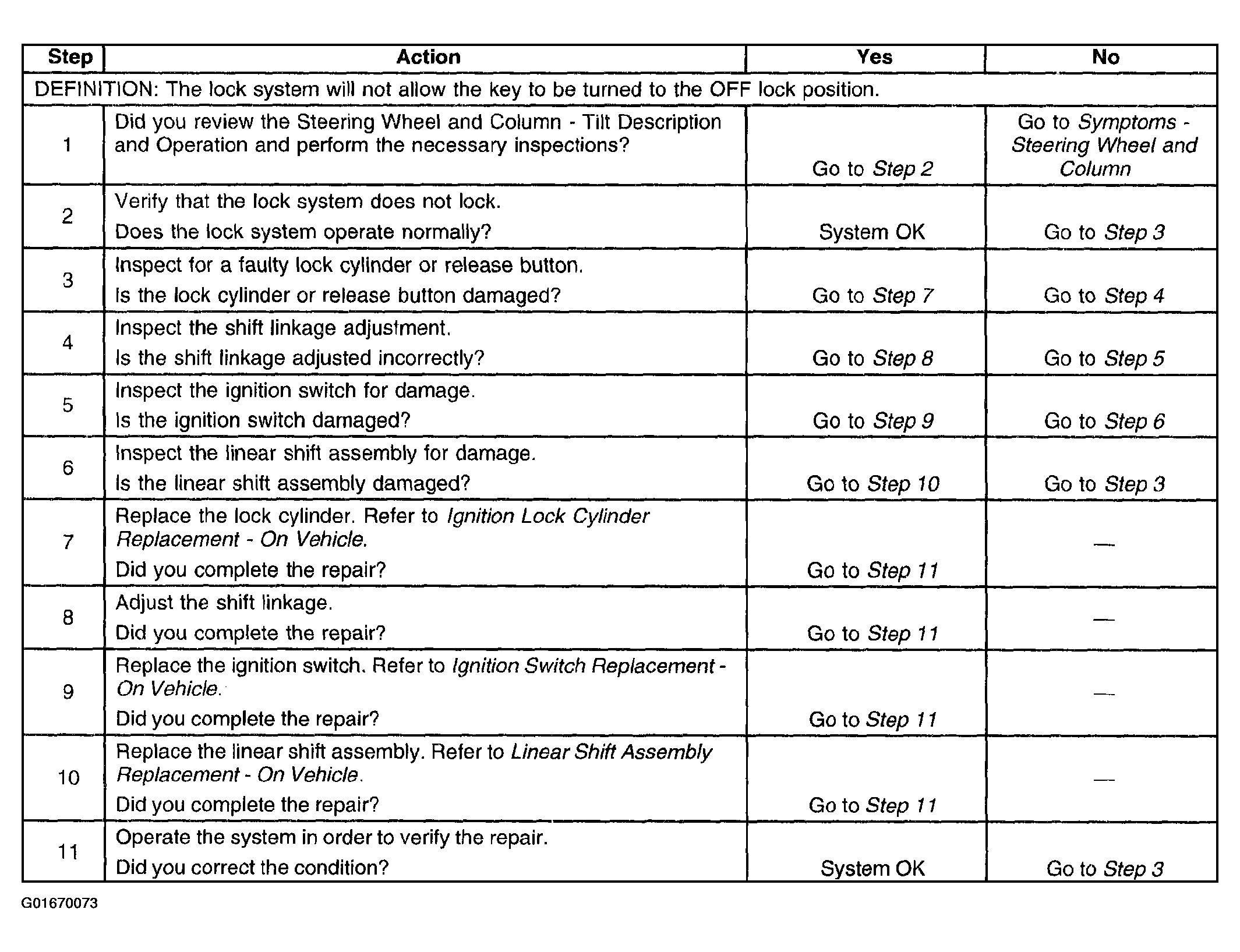

Fig 1: Lock System Does Not Lock

G01670073

Courtesy of GENERAL MOTORS CORP.
