High Lock Effort
High Lock Effort

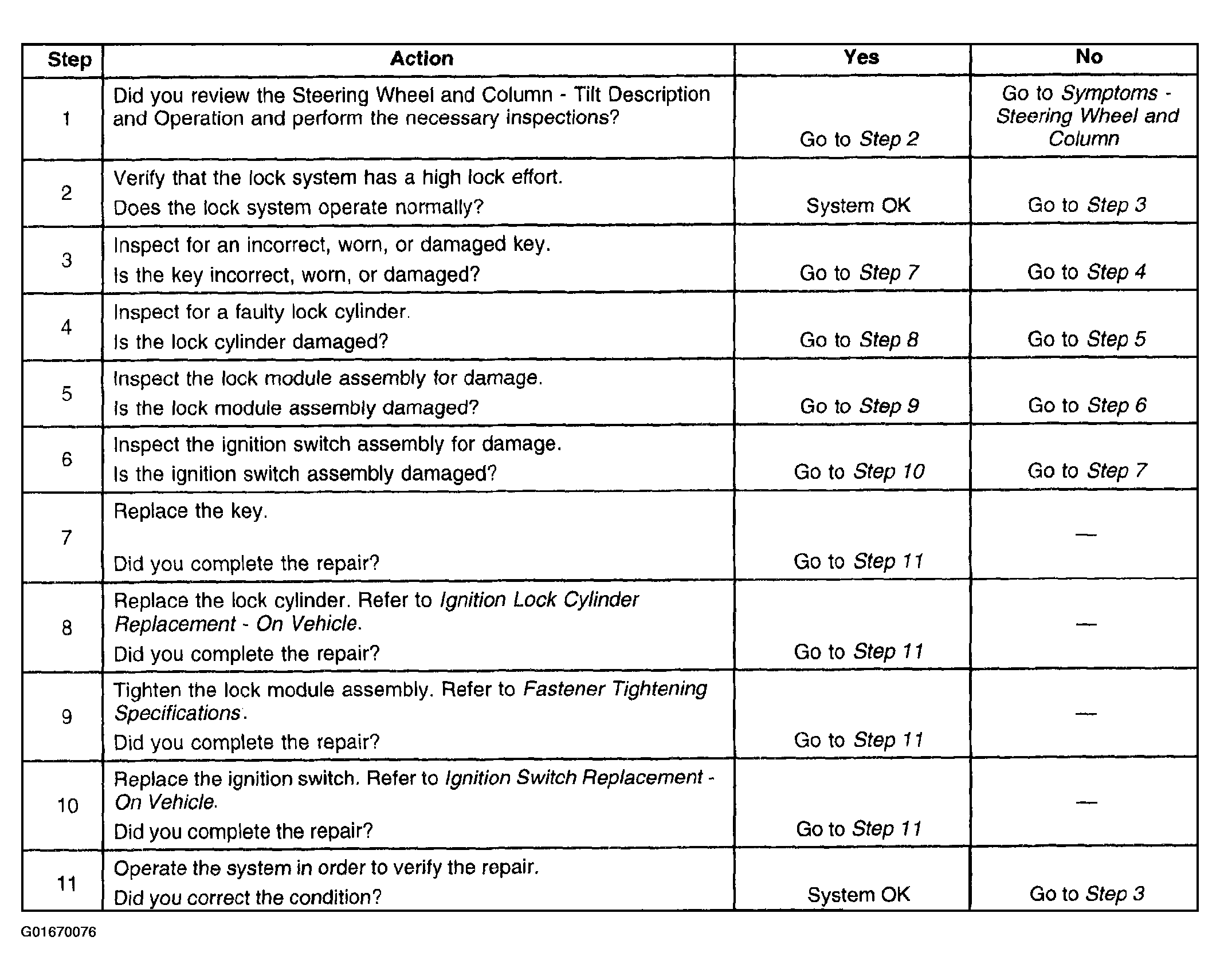

Fig 1: High Lock Effort
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
