Steering Column Disassembled View (Column Shift & Floor Shift Tilt)

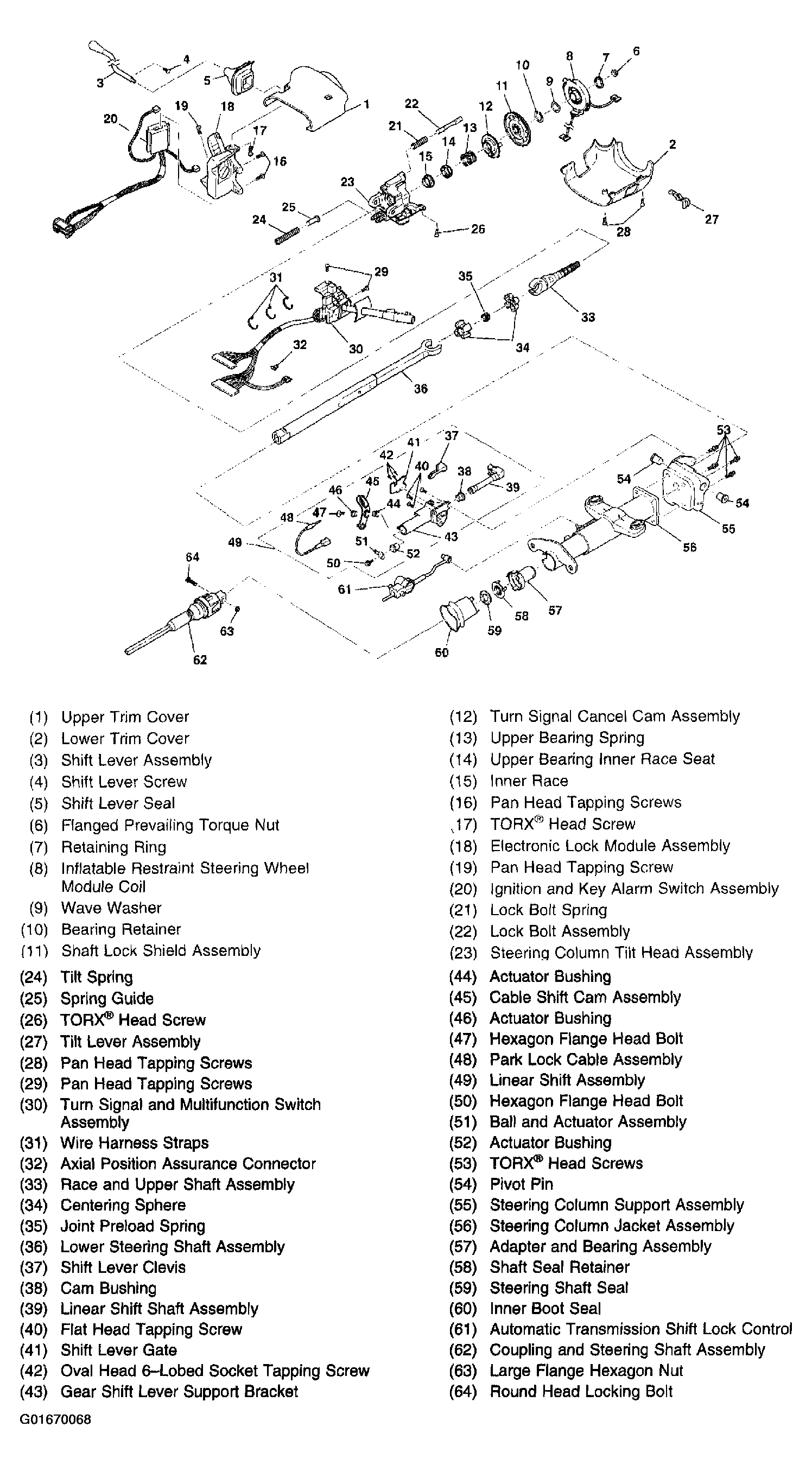

Fig 1: Tilt Steering Column Disassembled View
G01670068Courtesy of GENERAL MOTORS CORP.

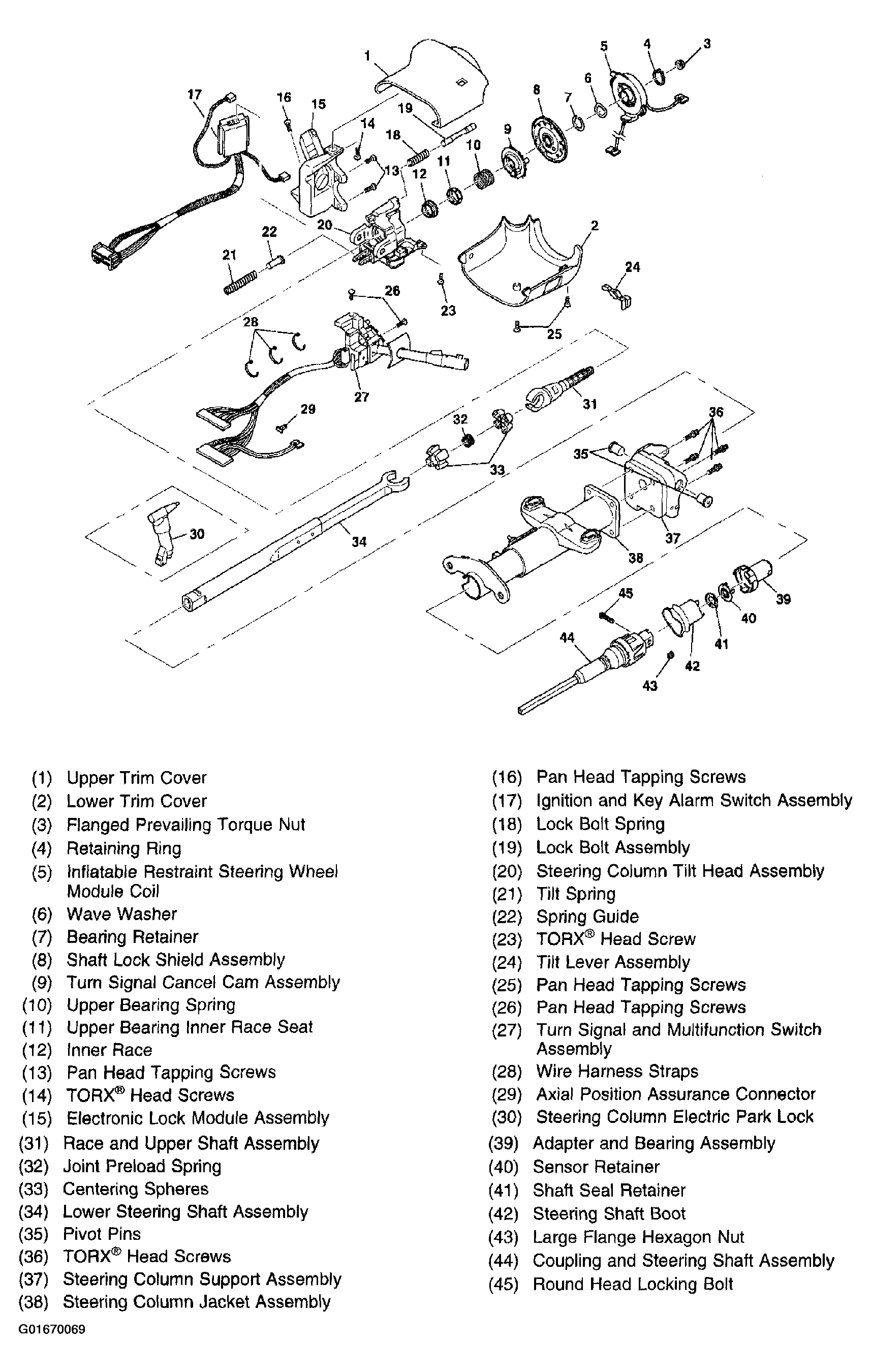

Fig 2: Floor Shift (Tilt Steering Column) Disassembled View
G01670069Courtesy of GENERAL MOTORS CORP.
