Home
>>
Chevrolet
>>
2002
>>
Blazer 4D Utility, 4WD, Part Time
>>
Repair and Diagnosis
>>
Steering
>>
Steering Linkage (Non-Rack & Pinion)
>>
Special Tools and Equipment
Special Tools and Equipment

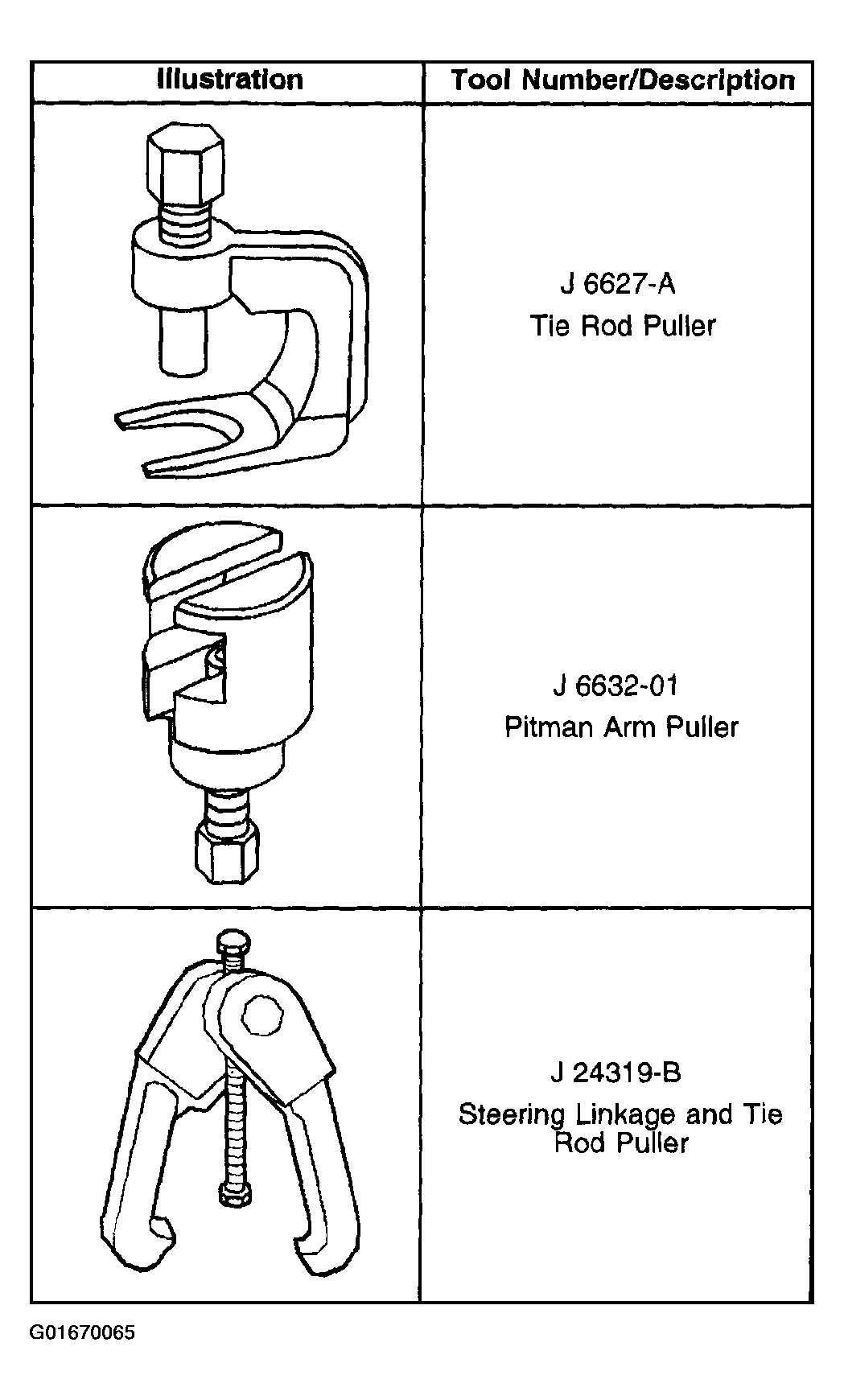

Fig 1: Special Tools & Equipment (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

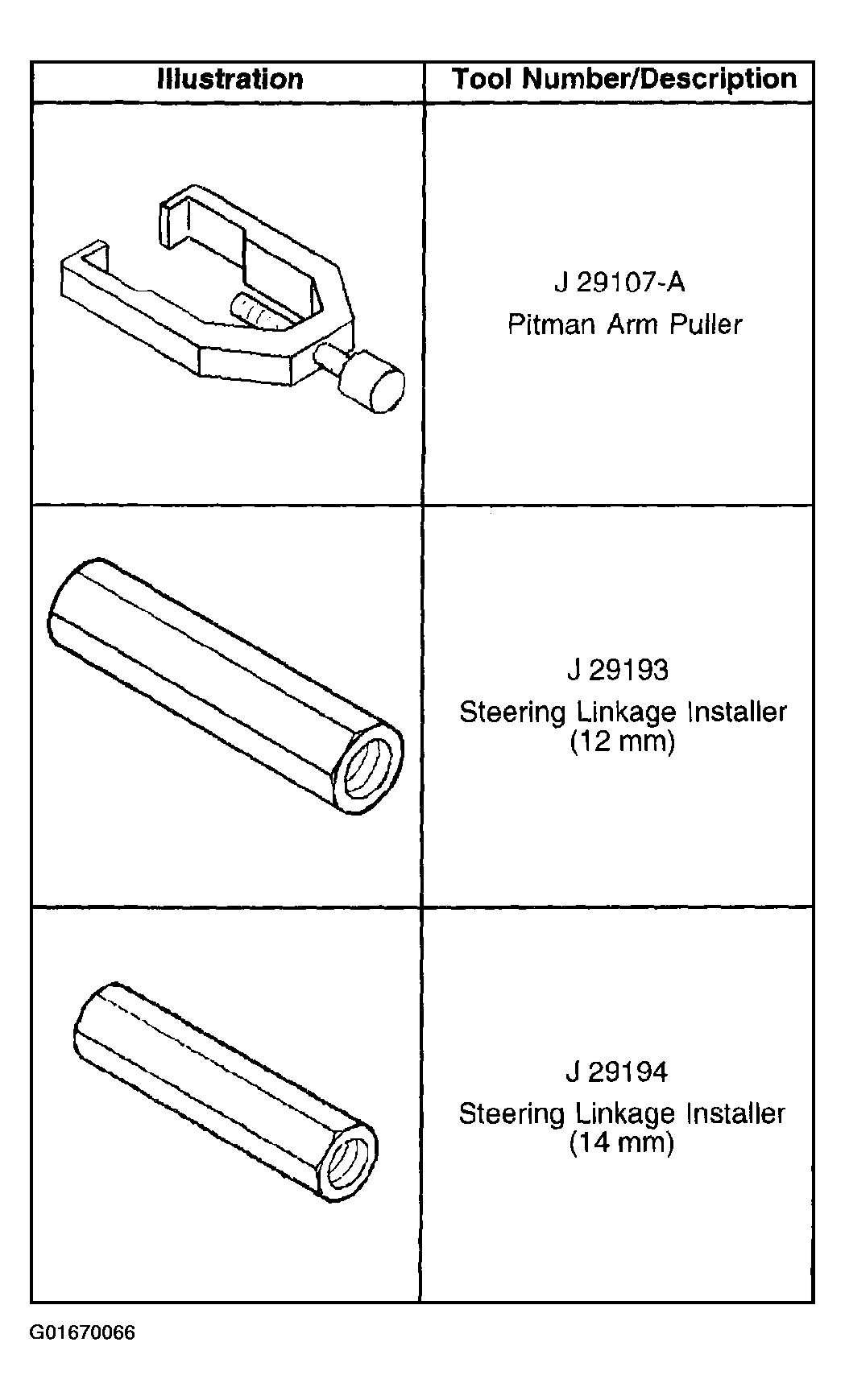

Fig 2: Special Tools & Equipment (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
