Removal Procedure

  1. Raise and suitably support the vehicle with safety stands. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the steering linkage shield bolts and the washers.
  3. Remove the steering linkage shield.

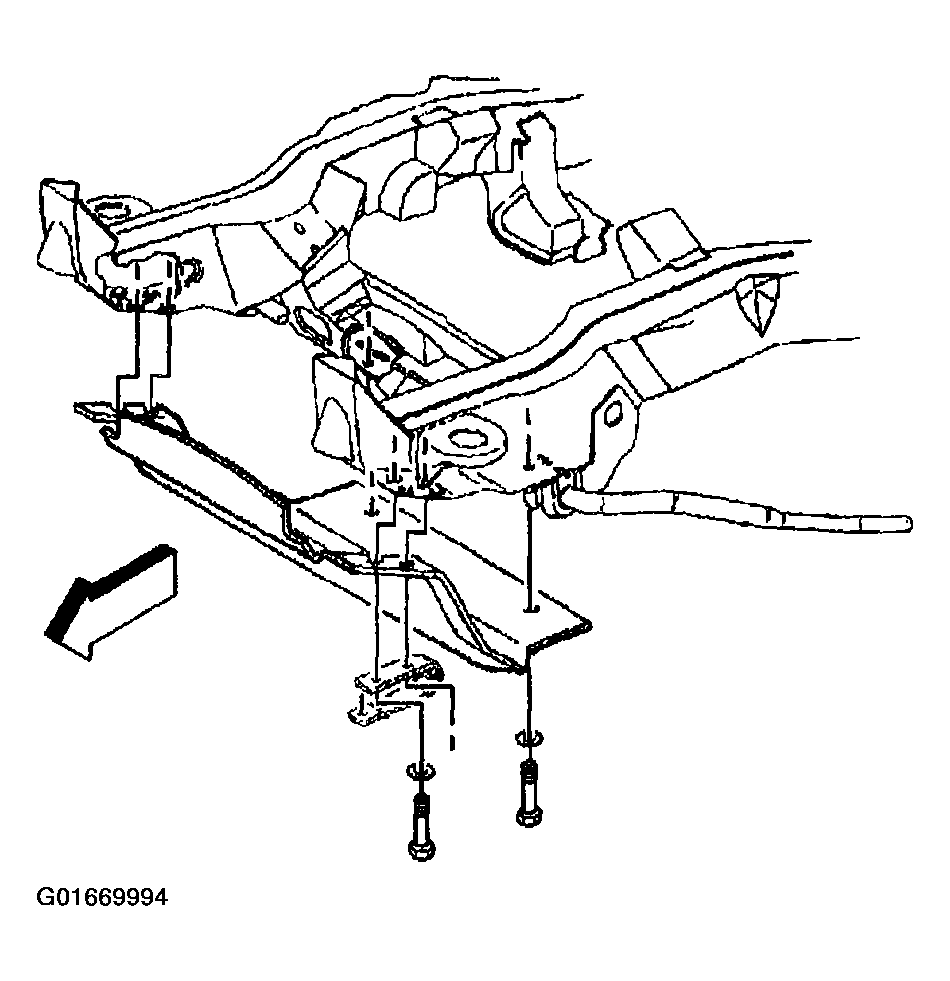

    Fig 1: Removing Steering Linkage Shield, Bolts & Washers
    G01669994Courtesy of GENERAL MOTORS CORP.
