Installation Procedure

  1. Position the idler arm on the frame.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the idler arm mounting bolts and nut to the frame.

    Tighten

    Tighten the idler arm mounting bolts and nuts to 108 N.m (79 lb ft).

  3. Install the idler arm to the relay rod ball stud. Ensure that the seal is on the stud.
    Fig 1: Installing Idler Arm Mounting Bolts & Nuts (RWD)
    G01670019Courtesy of GENERAL MOTORS CORP.
  4. Seat the taper using J 29193  or J 29194  .

    Tighten

    Tighten the J 29193  or J 29194  to 82 N.m (60 lb ft).

  5. Remove J 29193  or J 29194  from relay rod stud.
  6. Install the new nut to the relay rod ball stud.

    Tighten

    Tighten the relay rod ball stud nut to 47 N.m (35 lb ft).

  7. Lower the vehicle.
  8. Adjust the front toe. Refer to FRONT TOE ADJUSTMENT .

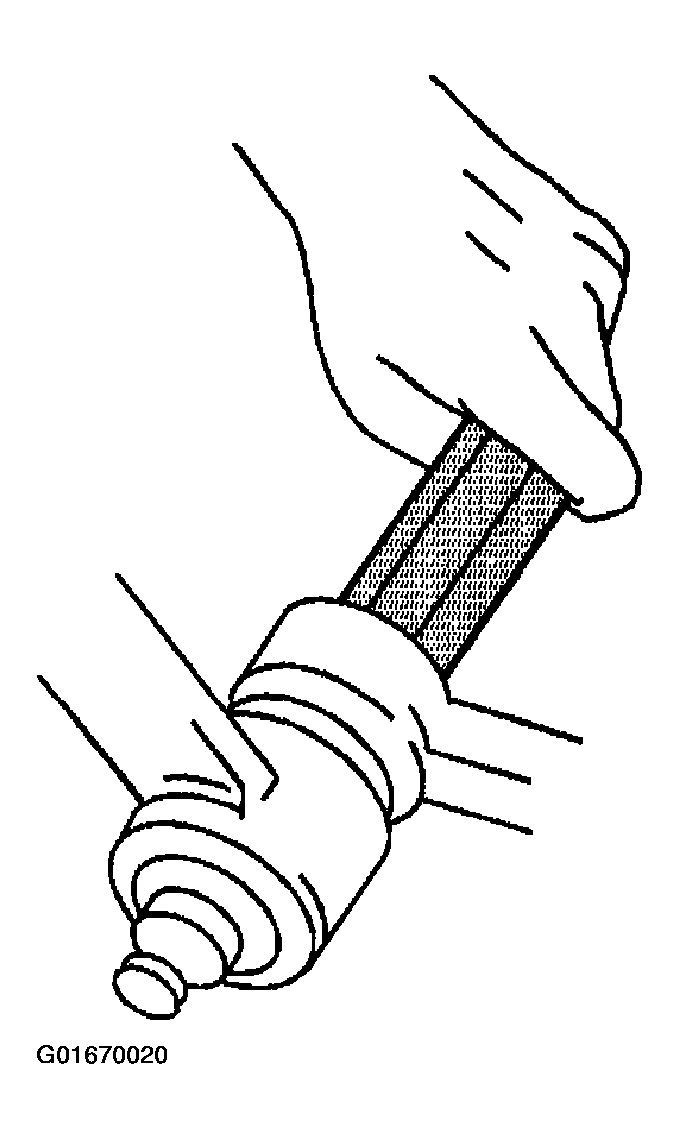

    Fig 2: Seating Taper Using J 29193 Or J 29194 (RWD)
    G01670020Courtesy of GENERAL MOTORS CORP.
