Assembly Procedure

Install the check valve (1) using a 3/8 inch diameter piece of tubing 100 mm (4 in) long to drive into the steering gear housing.

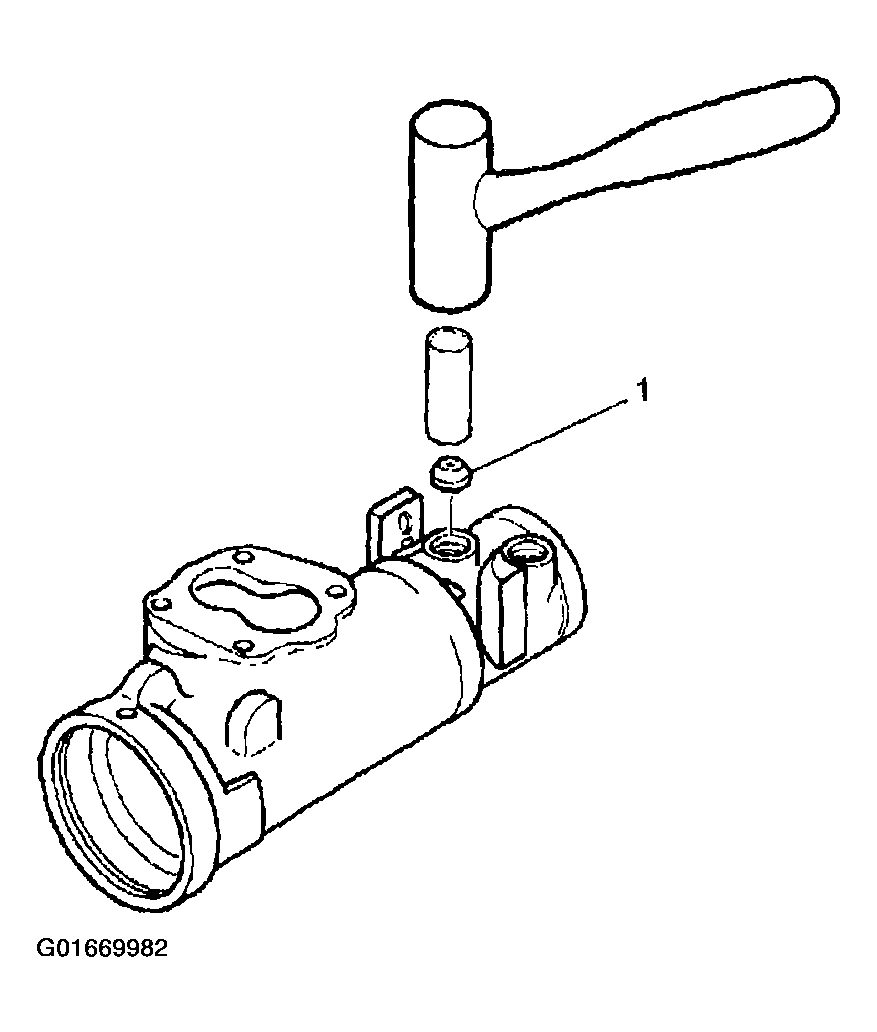

Fig 1: Installing Steering Gear Check Valve
G01669982Courtesy of GENERAL MOTORS CORP.
