Removal Procedure

NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  1. Remove the air cleaner assembly.
  2. Install a drain pan under the vehicle.
  3. Disconnect the power steering gear return hose from the power steering pump (for vehicles without a power steering cooler).

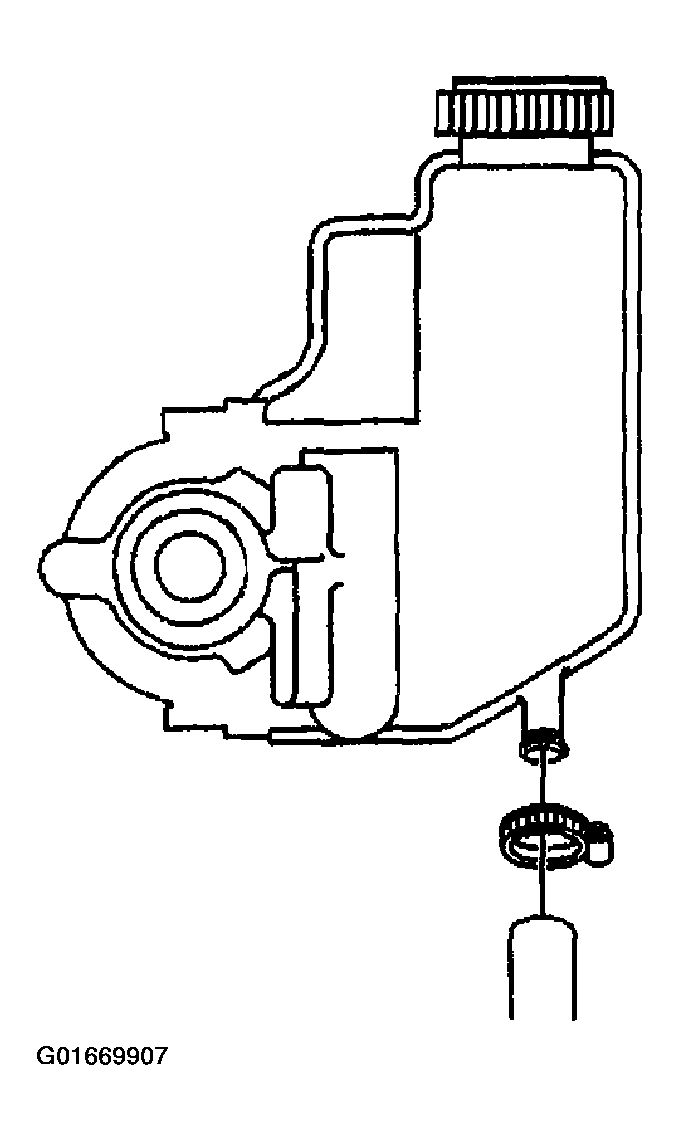

    Fig 1: Disconnecting Power Steering Gear Return Hose From Pump (2.2L)
    G01669907Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the power steering gear return hose from the power steering cooler, if equipped.
    Fig 2: Disconnecting Power Steering Gear Return Hose From Cooler (2.2L)
    G01669908Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the power steering gear return hose from the power steering gear.
  6. Remove the power steering gear return hose from the vehicle.

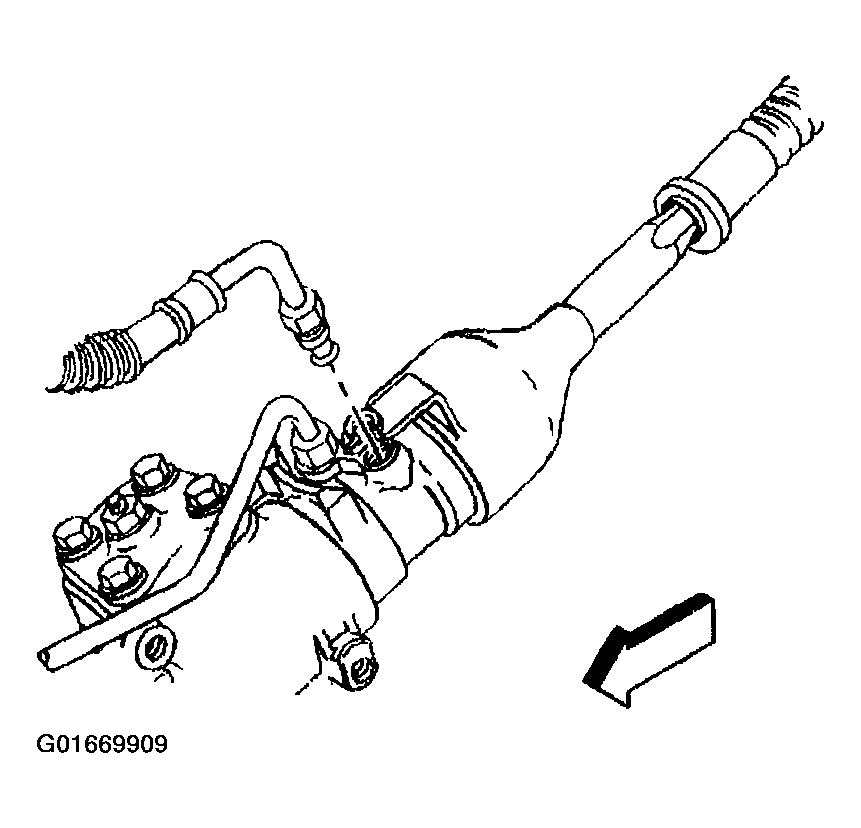

    Fig 3: Disconnecting Power Steering Gear Return Hose From Gear (2.2L)
    G01669909Courtesy of GENERAL MOTORS CORP.
