Disassembly Procedure

  1. Drain the power steering fluid from the power steering pump.
  2. Remove the pump mounting studs (2).
  3. Remove the connector and fitting assembly (4).
  4. Remove the O-ring seal (3).
    Fig 1: Removing Pump Mounting Studs, Connector/Fitting Assembly & O-Ring Seal (P Series)
    G01669847Courtesy of GENERAL MOTORS CORP.
  5. Remove the reservoir assembly (1) from the pump housing assembly (2).

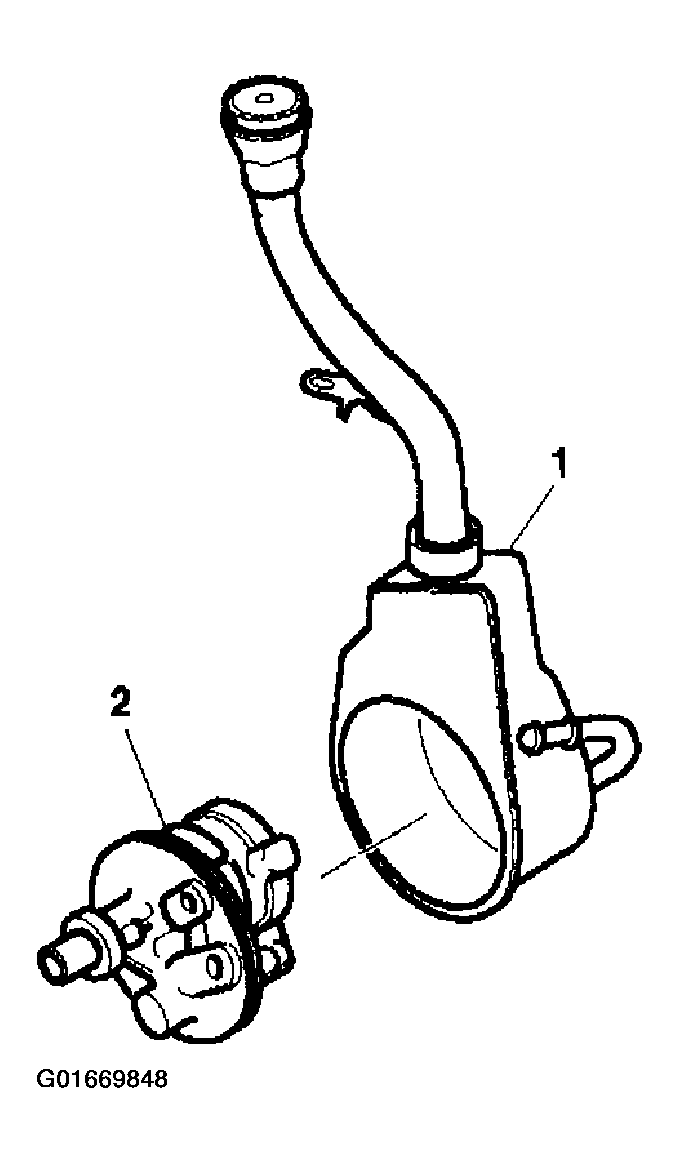

    Fig 2: Removing Reservoir Assembly From Pump Housing Assembly (P Series)
    G01669848Courtesy of GENERAL MOTORS CORP.
  6. Remove the O-ring seals (1, 4, 5).
  7. Remove the magnet (3).
  8. Clean the magnet (3).
  9. Inspect the welch plug in the power steering pump housing (2). Do not remove. If the welch plug is deformed or dislodged, replace the power steering pump housing (2).

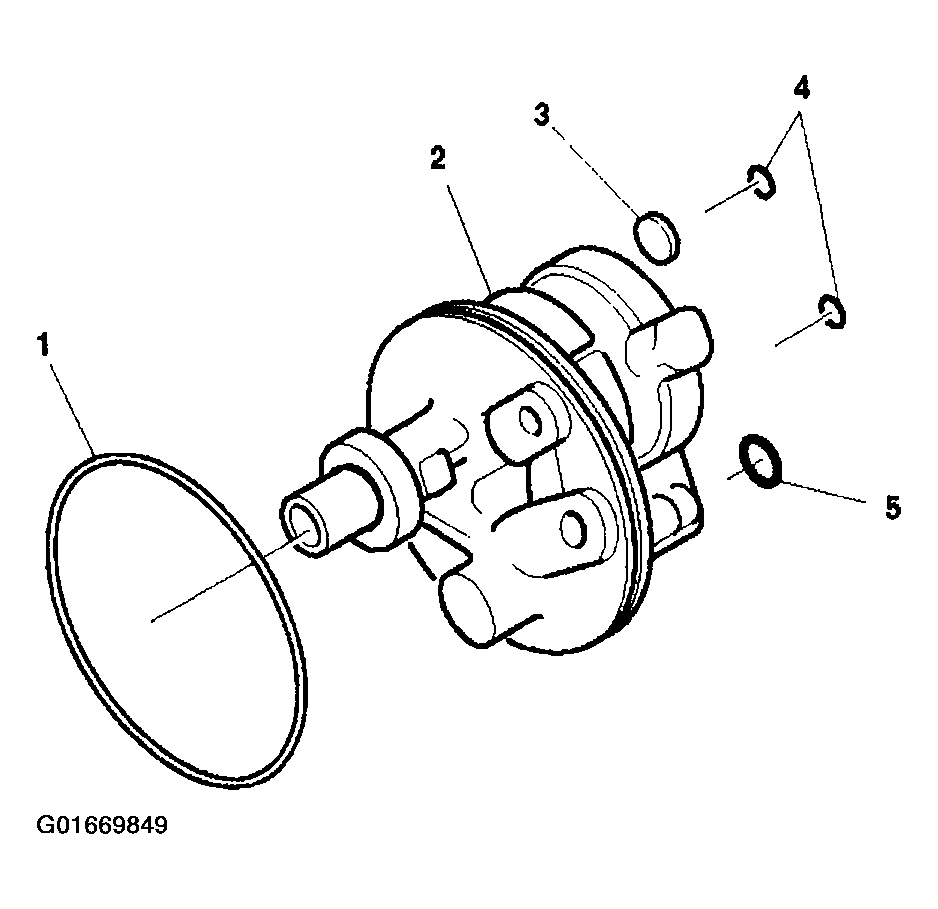

    Fig 3: Removing O-Ring Seals & Magnet From Power Steering Pump Housing (P Series)
    G01669849Courtesy of GENERAL MOTORS CORP.
