Assembly Procedure

IMPORTANT: Use new O-ring seals when assembling the power steering pump assembly.

Lubricate the O-ring seals (1, 4, 5) with power steering fluid.
Install the O-ring seals (1) (4) (5) to the pump housing assembly.
Install the magnet (3) to the pump housing assembly (2).

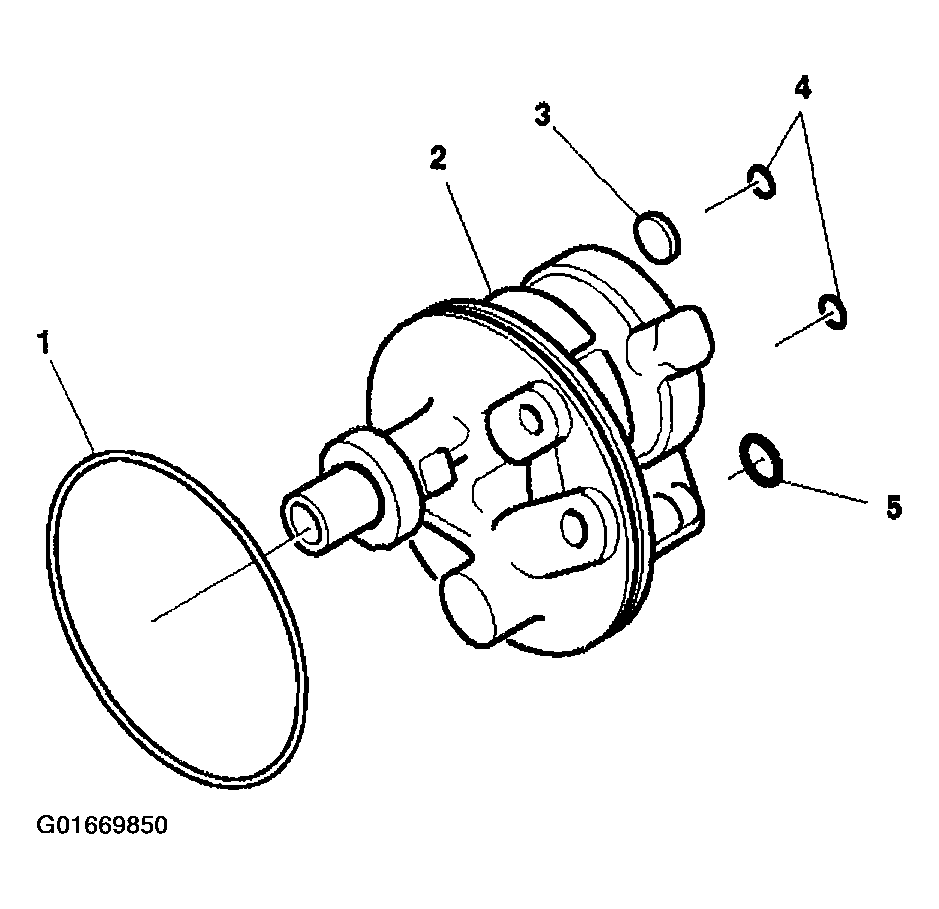

Fig 1: Installing O-Ring Seals & Magnet To Pump Housing Assembly (P Series)
Courtesy of GENERAL MOTORS CORP.
Connect the reservoir assembly (1) to the pump housing assembly (2).

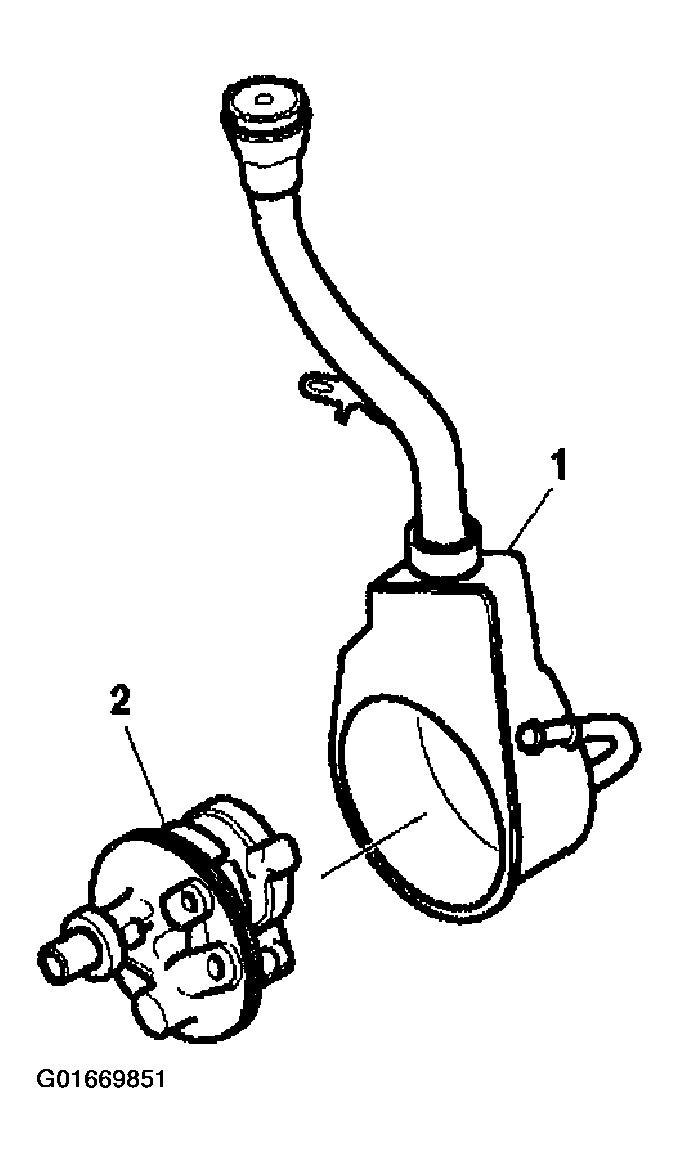

Fig 2: Connecting Reservoir Assembly To Pump Housing Assembly (P Series)
Courtesy of GENERAL MOTORS CORP.
Install the O-ring seal.
NOTE: Refer to FASTENER NOTICE .
Install the connector and fitting assembly (4) to the pump housing (1).
Install the pump mounting studs (2) to the pump housing (1).

Tighten
- Tighten the pump mounting studs (2) to 35-80 N.m (29-59 lb ft).
- Tighten the connector and fitting assembly (4) to 75 N.m (55 lb ft).

  Fig 3: Installing O-Ring Seal, Connector/Fitting Assembly & Pump Mounting Studs (P Series)
  Courtesy of GENERAL MOTORS CORP.
