Disassembly Procedure

  1. Place the hydraulic pump (1) on a fixed, flat surface, with the shaft facing upward.
  2. Insert a screwdriver into the retaining clip tab (3).
  3. Using the screwdriver, force the retaining clip tab (3) outward.
  4. Slide the reservoir clip (4) away from the hydraulic pump assembly (1).
  5. Repeat the above steps to remove the second reservoir clip (4).
  6. Remove the reservoir (2) from the hydraulic pump housing (1).
  7. Remove the O-ring seal from the neck of the reservoir (2) or the hydraulic pump housing (1). Discard the O-ring seal.

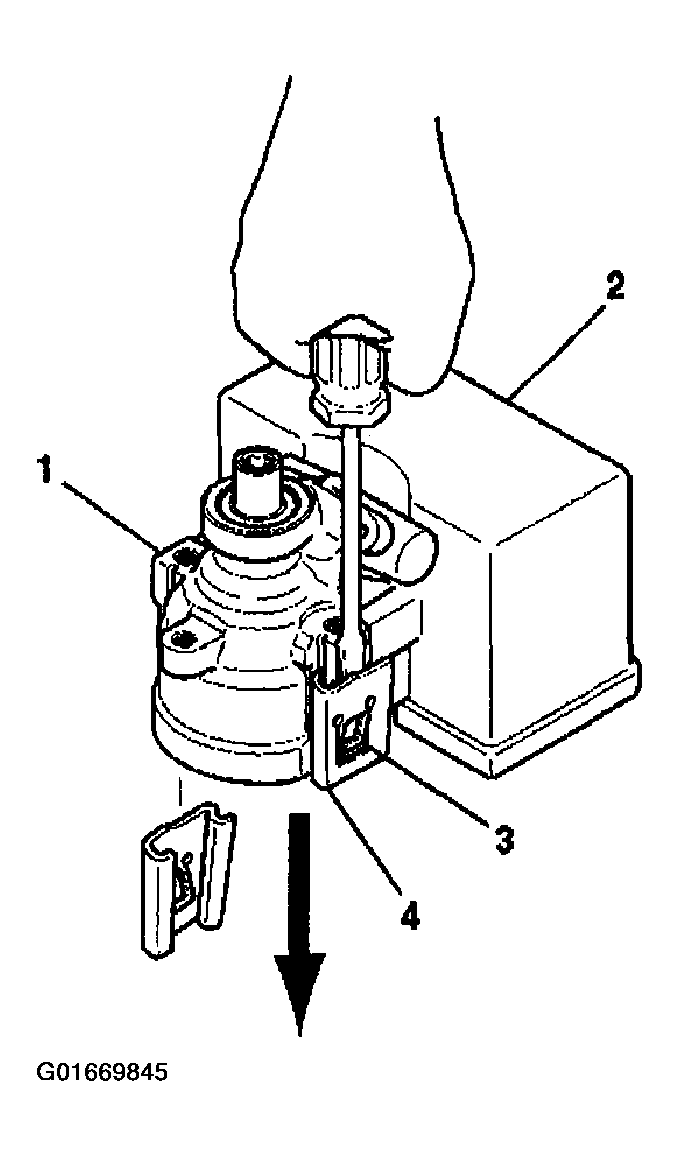

    Fig 1: Removing Power Steering Reservoir & Components (CB Series)
    G01669845Courtesy of GENERAL MOTORS CORP.
