Assembly Procedure

  1. Lubricate the new O-ring seal with power steering fluid.
  2. Install the new O-ring seal onto the neck of the reservoir (2).
  3. Install the reservoir (2) onto the hydraulic pump assembly (1). Ensure the reservoir neck is completely engaged onto the hydraulic pump assembly (1).
  4. Align the feet of the reservoir with the sides of the hydraulic pump housing.
  5. Install the new reservoir retaining clips (4) (supplied with the pump). Ensure the retaining clip tabs (3) fully engage with the hydraulic pump housing (1).

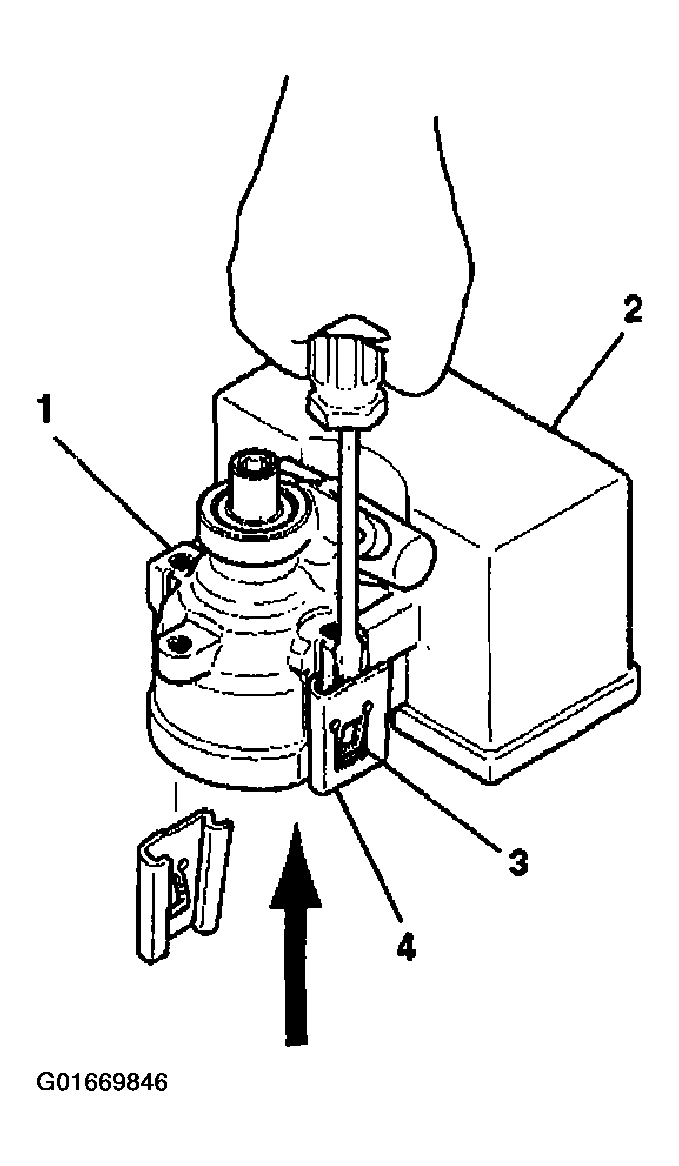

    Fig 1: Installing Power Steering Reservoir Components (CB Series)
    G01669846Courtesy of GENERAL MOTORS CORP.
