Removal Procedure

  1. Remove the upper fan shroud. Refer to FAN SHROUD REPLACEMENT .
  2. Place a drain pan below the pump.
  3. Remove the power steering hoses from the pump.
  4. Cap the power steering hoses.
  5. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT .
  6. Remove the power steering pump pulley. Refer to Power Steering Pulley Replacement .

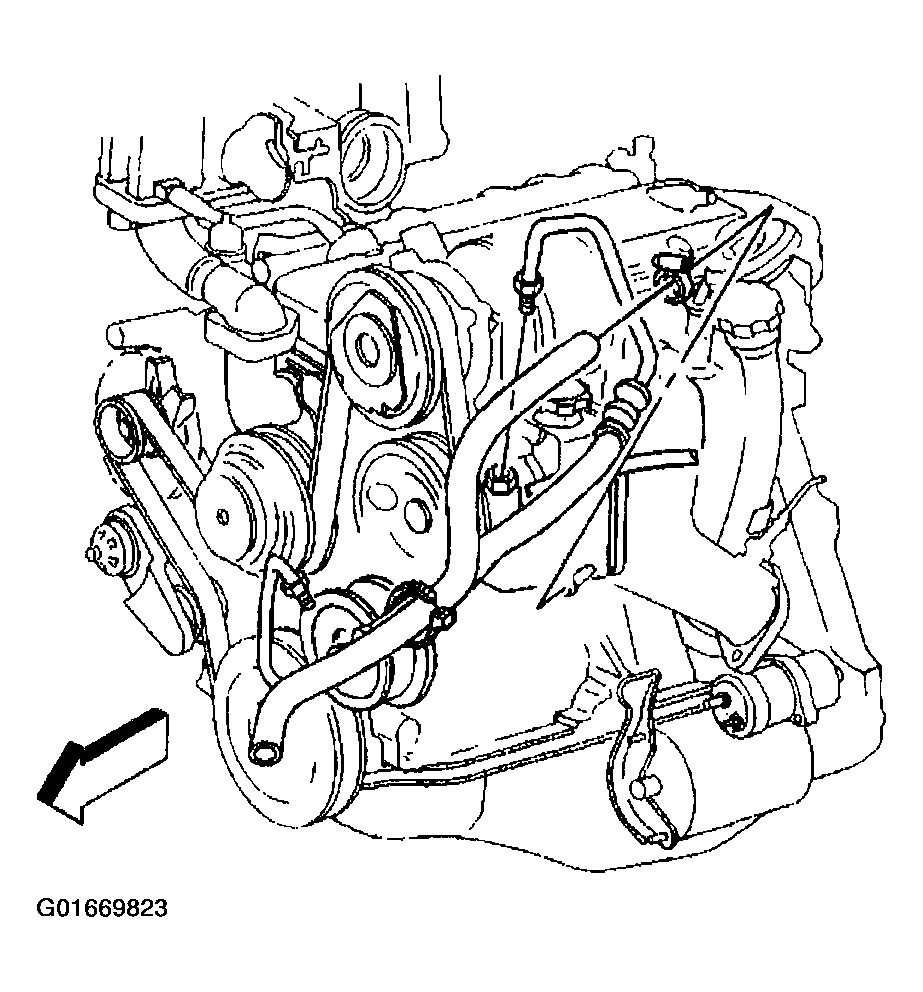

    Fig 1: Removing Power Steering Hoses From Pump (2.2L)
    G01669823Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the A/C compressor electrical connection.

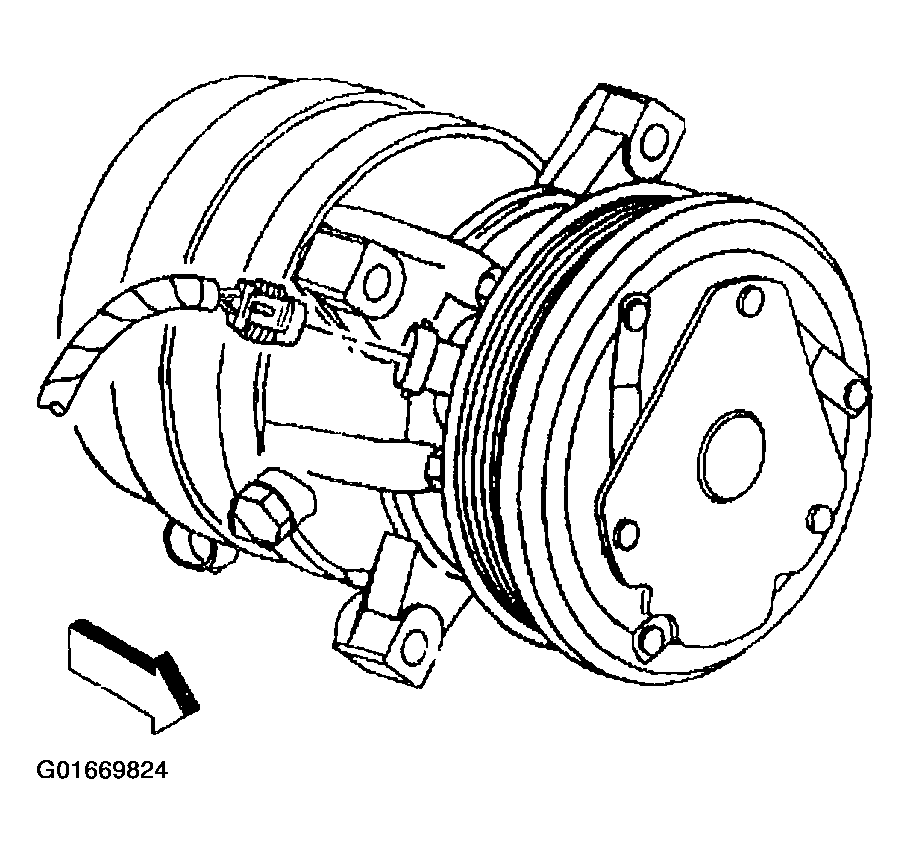

    Fig 2: Disconnecting A/C Compressor Electrical Connection (2.2L)
    G01669824Courtesy of GENERAL MOTORS CORP.
  8. Remove the A/C compressor mounting bolts.
  9. Remove the A/C compressor rear bracket mounting bolts.
  10. Remove the A/C compressor from the brackets and set aside.

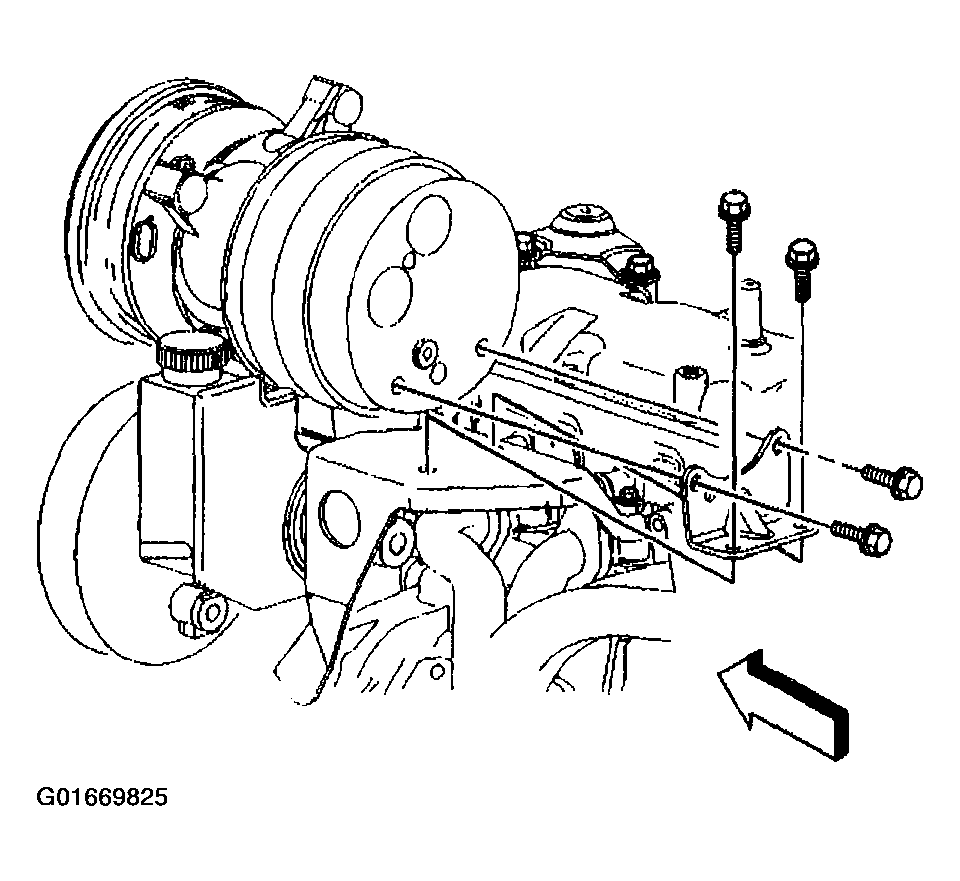

    Fig 3: Removing A/C Compressor, Brackets & Bolts (2.2L)
    G01669825Courtesy of GENERAL MOTORS CORP.
  11. Remove the power steering pump front mounting bolts.
  12. Remove the power steering pump rear mounting bracket nuts from the engine studs.
  13. Remove the power steering pump rear mounting bracket bolt.
  14. Remove the power steering pump.

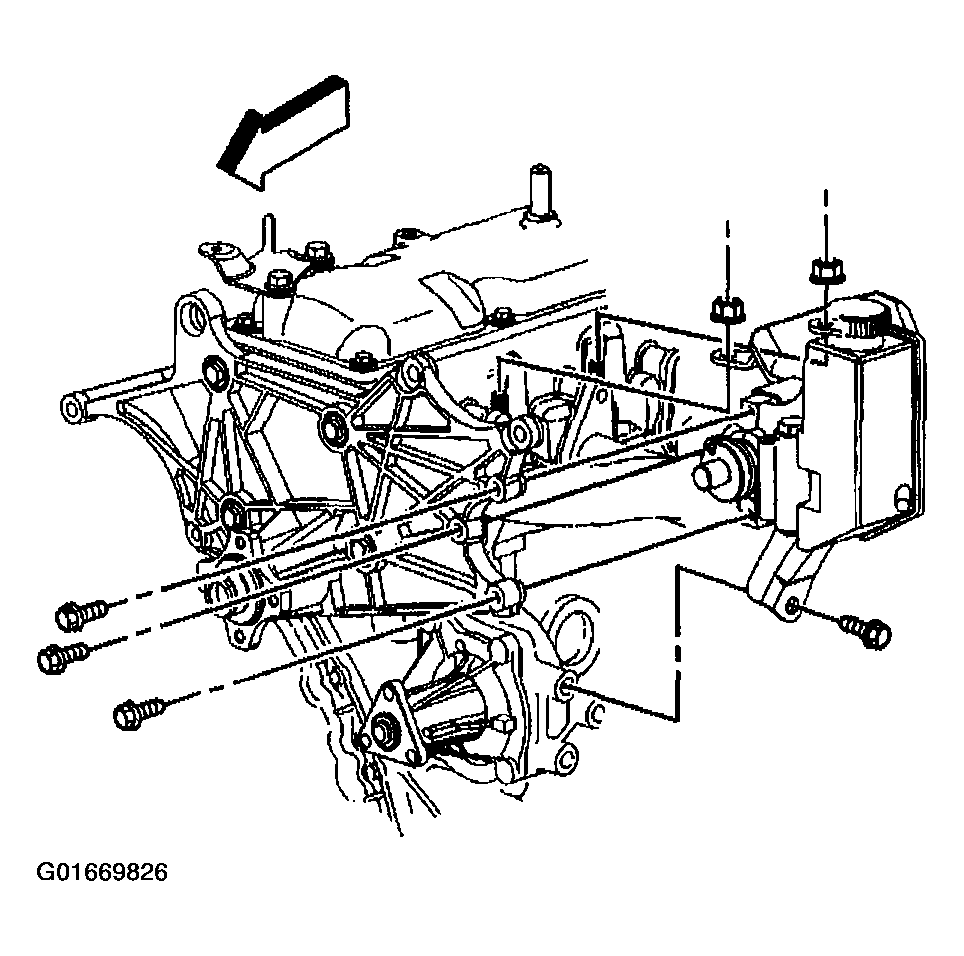

    Fig 4: Removing Power Steering Pump & Bolts (2.2L)
    G01669826Courtesy of GENERAL MOTORS CORP.
