Removal Procedure

NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the steering linkage shield, if equipped. Refer to STEERING LINKAGE SHIELD REPLACEMENT .
  3. Install a drain pan under the vehicle.
  4. Disconnect the pressure hose from the power steering pump.
  5. Lower the vehicle.
  6. Remove the air cleaner assembly.

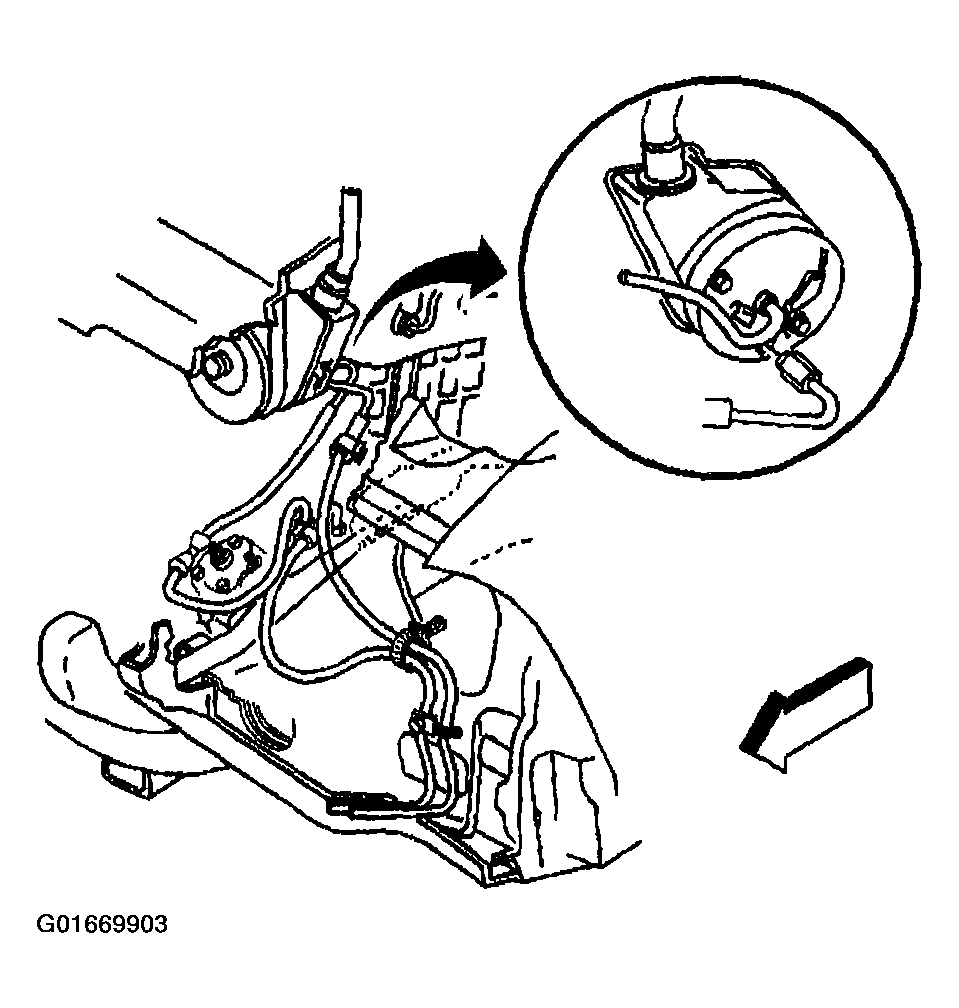

    Fig 1: Disconnecting Power Steering Pressure Hose From Pump (4.3L)
    G01669903Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the power steering gear pressure hose from the power steering gear.
  8. Remove the power steering gear pressure hose from the vehicle.
    Fig 2: Disconnecting Power Steering Pressure Hose From Gear (4.3L)
    G01669904Courtesy of GENERAL MOTORS CORP.
