Installation Procedure

NOTE: Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE .
  1. Install the power steering gear pressure hose to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Connect the power steering gear pressure hose to the power steering gear.

    Tighten

    Tighten the power steering gear pressure hose to the power steering gear to 30 N.m (22 lb ft).

  3. Install the air cleaner assembly.
  4. Raise the vehicle.
    Fig 1: Connecting Power Steering Pressure Hose To Gear (4.3L)
    G01669905Courtesy of GENERAL MOTORS CORP.
  5. Connect the power steering gear pressure hose to the power steering pump.

    Tighten

    Tighten the power steering gear pressure hose to the power steering pump to 25 N.m (18 lb ft).

  6. Remove the drain pan from under the vehicle.
  7. Install the steering linkage shield, if equipped. Refer to STEERING LINKAGE SHIELD REPLACEMENT .
  8. Lower the vehicle.
  9. Bleed the power steering system. Refer to Bleeding the Power Steering System .

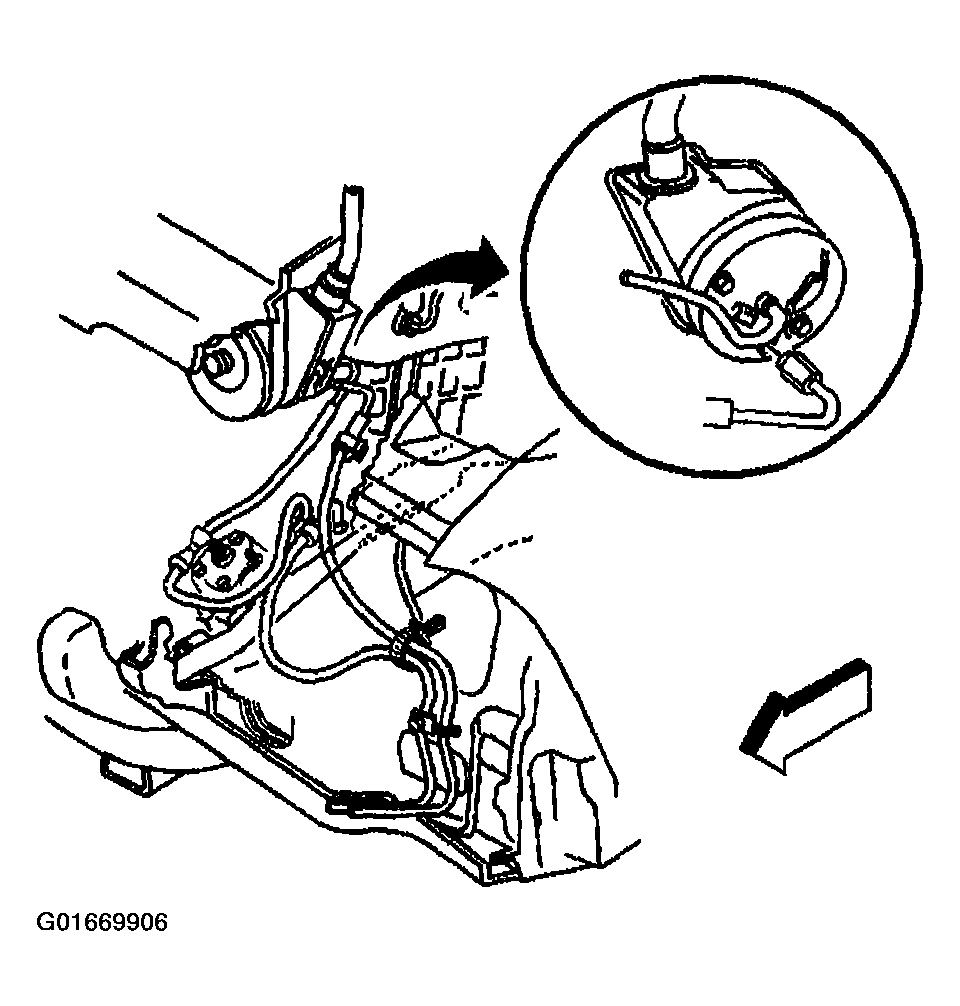

    Fig 2: Connecting Power Steering Gear Pressure Hose To Pump (4.3L)
    G01669906Courtesy of GENERAL MOTORS CORP.
