Removal Procedure

NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  1. Remove the air cleaner assembly.
  2. Install a drain pan under the vehicle.
  3. Disconnect the power steering gear pressure hose from the power steering pump.

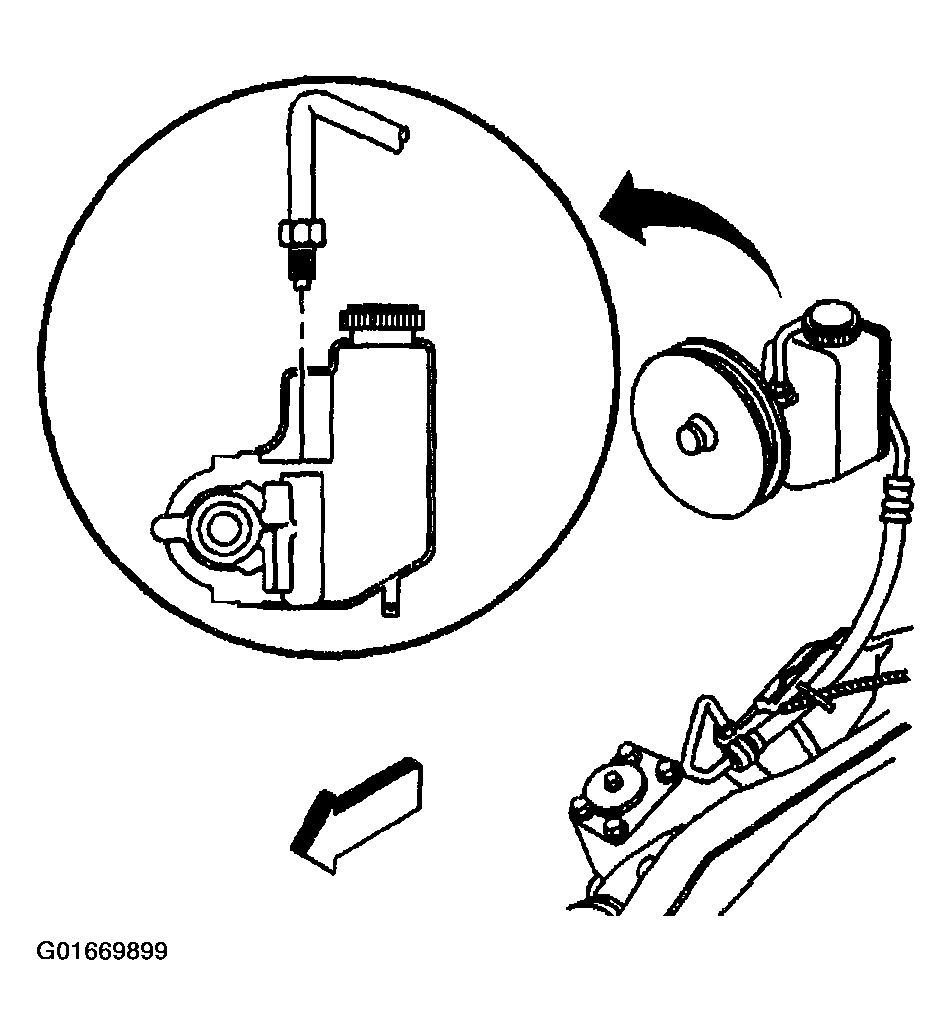

    Fig 1: Disconnecting Power Steering Gear Pressure Hose From Pump (2.2L)
    G01669899Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the power steering gear pressure hose from the power steering gear.
  5. Remove the power steering gear pressure hose from the vehicle.

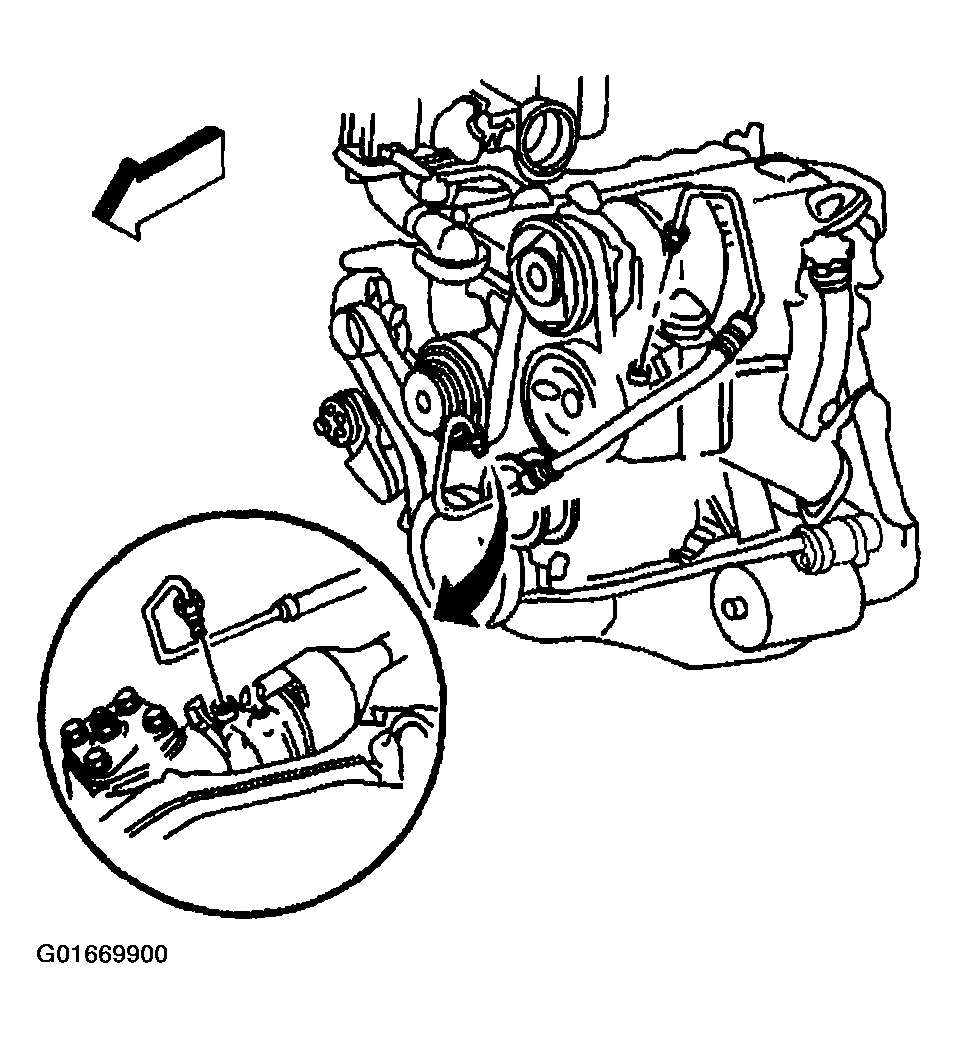

    Fig 2: Disconnecting Power Steering Gear Pressure Hose From Gear (2.2L)
    G01669900Courtesy of GENERAL MOTORS CORP.
