Removal Procedure

NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  1. Remove the air cleaner assembly.
  2. Install a drain pan under the vehicle.
  3. Disconnect the power steering cooler hoses from the power steering cooler.
  4. Remove the grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) .

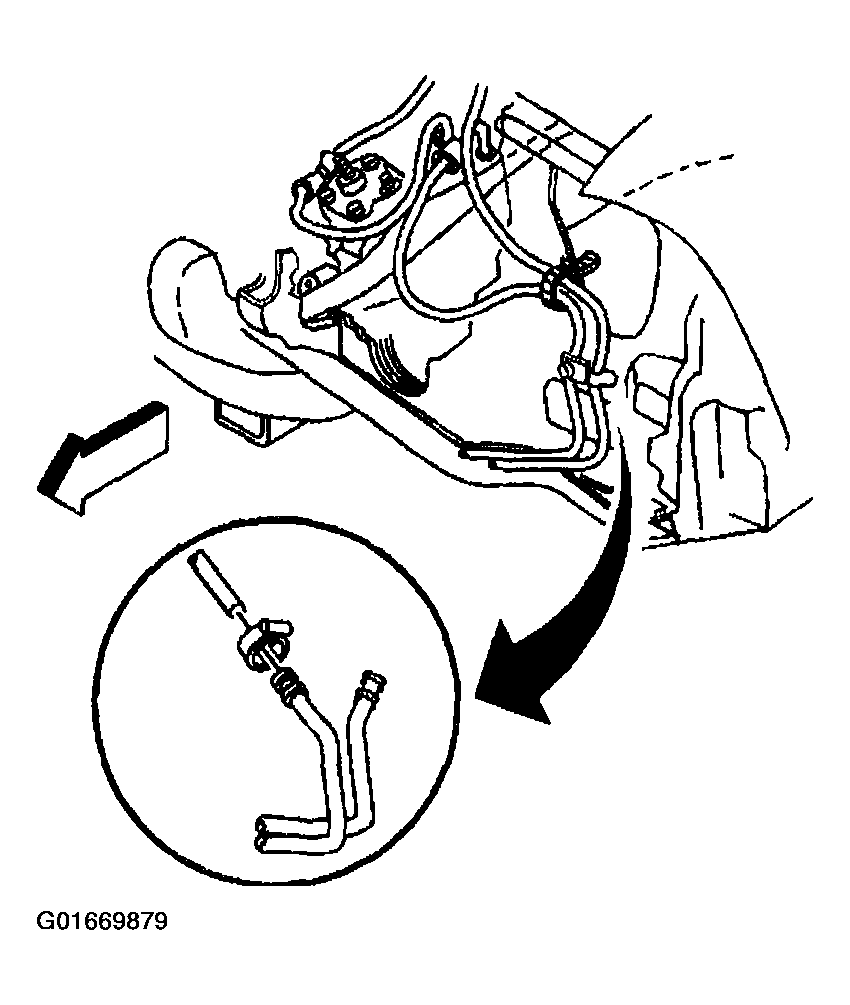

    Fig 1: Disconnecting Power Steering Cooler Hoses (2.2L)
    G01669879Courtesy of GENERAL MOTORS CORP.
  5. Remove the radiator air intake baffle retaining clips from LH side.
  6. Position the radiator air intake baffle out of the way.

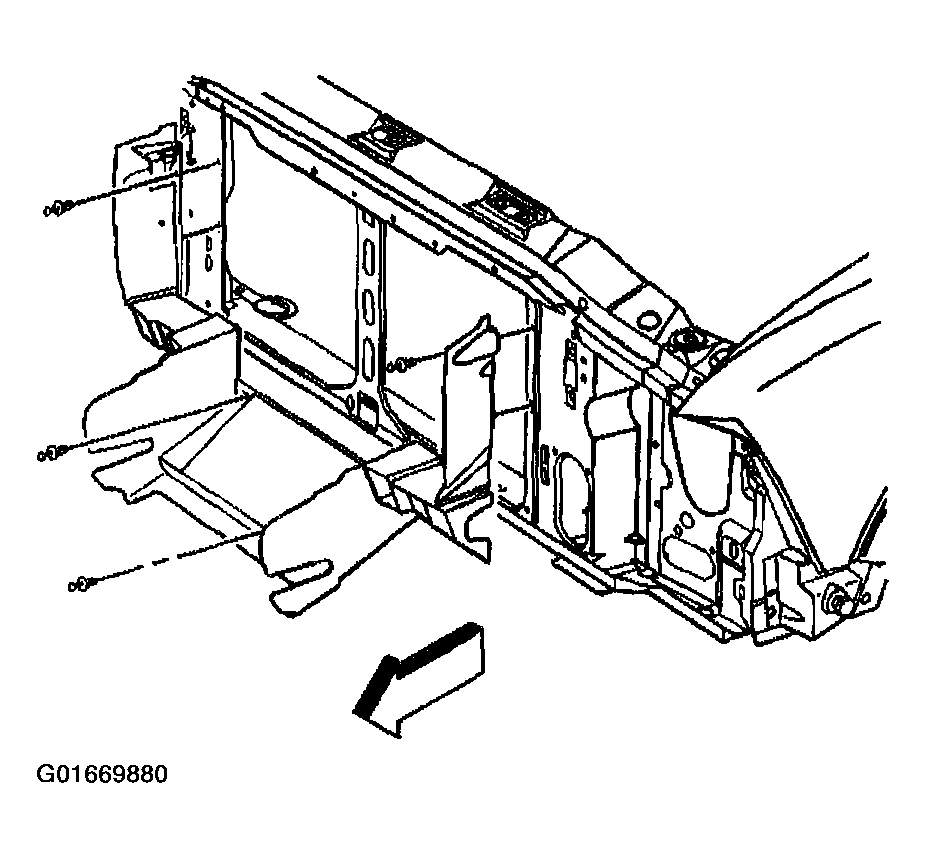

    Fig 2: Removing Radiator Air Intake Baffle & Retaining Clips (2.2L)
    G01669880Courtesy of GENERAL MOTORS CORP.
  7. Remove the hood latch support mounting bolts.
  8. Move the hood latch support forward.

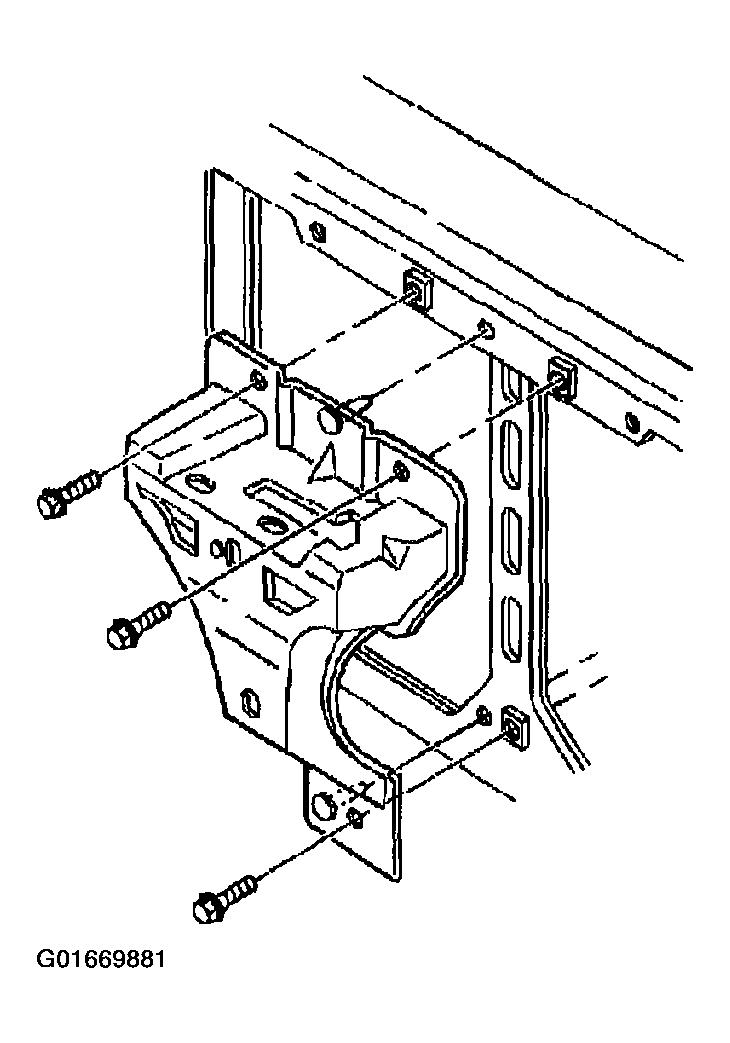

    Fig 3: Removing Hood Latch Support & Mounting Bolts (2.2L)
    G01669881Courtesy of GENERAL MOTORS CORP.
  9. Remove the power steering cooler retaining bolts.

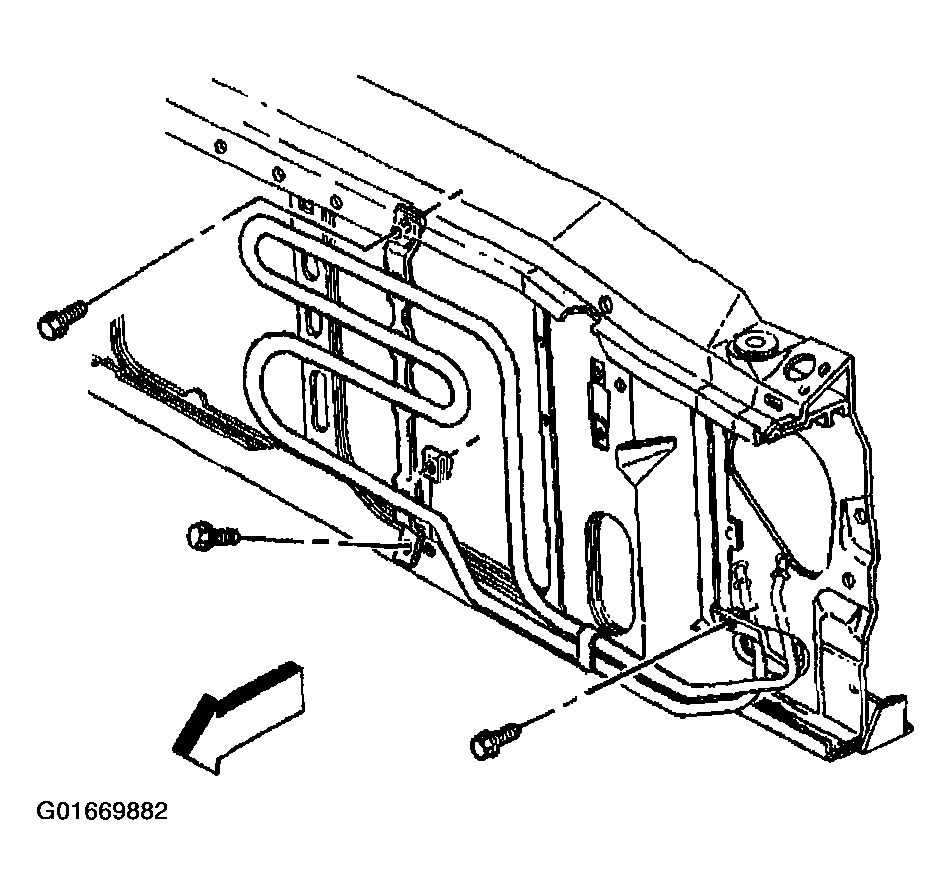

    Fig 4: Removing Power Steering Cooler Retaining Bolts (2.2L)
    G01669882Courtesy of GENERAL MOTORS CORP.
  10. Remove the power steering cooler from the radiator support.

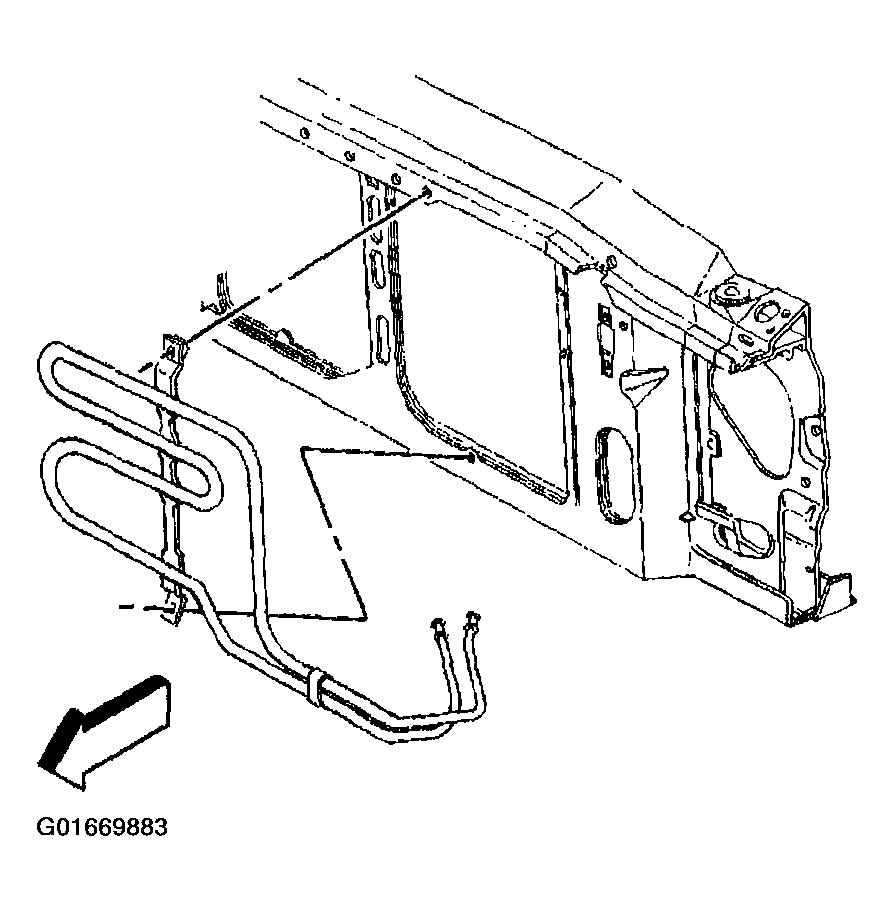

    Fig 5: Removing Power Steering Cooler (2.2L)
    G01669883Courtesy of GENERAL MOTORS CORP.
