Removal Procedure

NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  1. Remove the air cleaner assembly.
  2. Install a drain pan under the vehicle.
  3. Disconnect the power steering cooler hose from the power steering pump.
    Fig 1: Disconnecting Power Steering Cooler Hose From Pump (4.3L)
    G01669875Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the power steering cooler hose from the power steering cooler.
  5. Remove the power steering cooler hose from the vehicle.

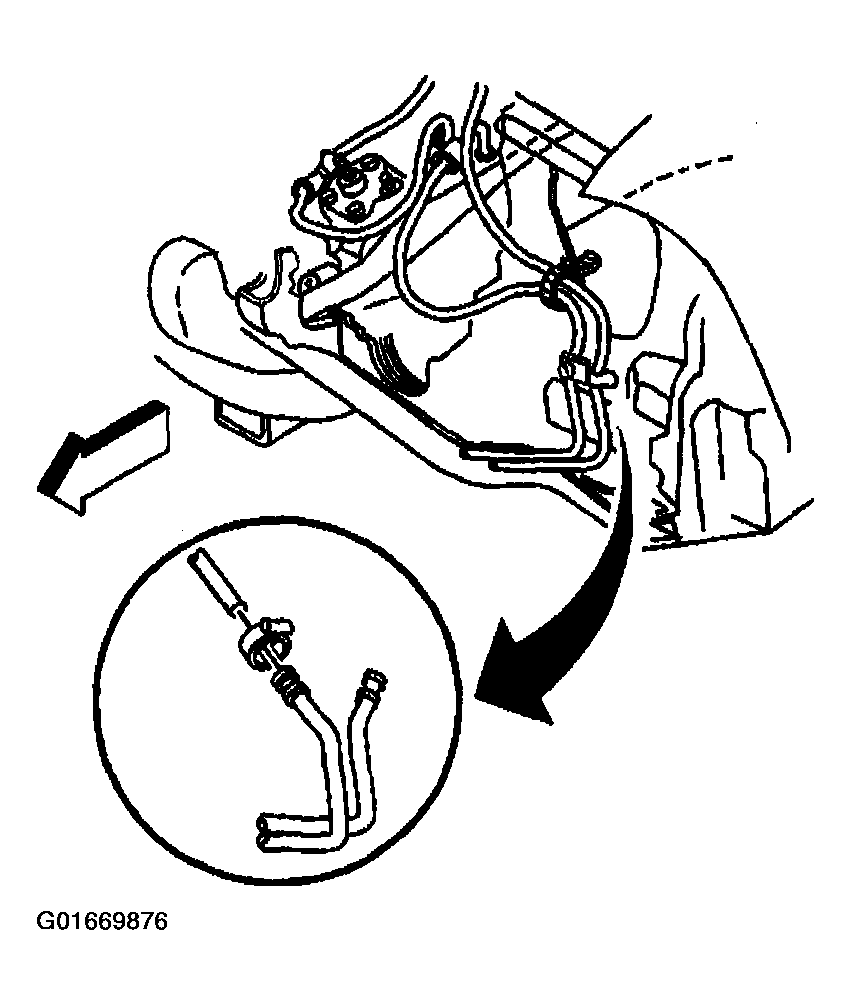

    Fig 2: Disconnecting Power Steering Cooler Hose From Cooler (4.3L)
    G01669876Courtesy of GENERAL MOTORS CORP.
