Installation Procedure

NOTE: Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE .
  1. Install the power steering cooler hose to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Connect the power steering cooler hose to the power steering cooler.

    Tighten

    Tighten the power steering cooler hose to the power steering cooler clamp to 2 N.m (18 lb in).

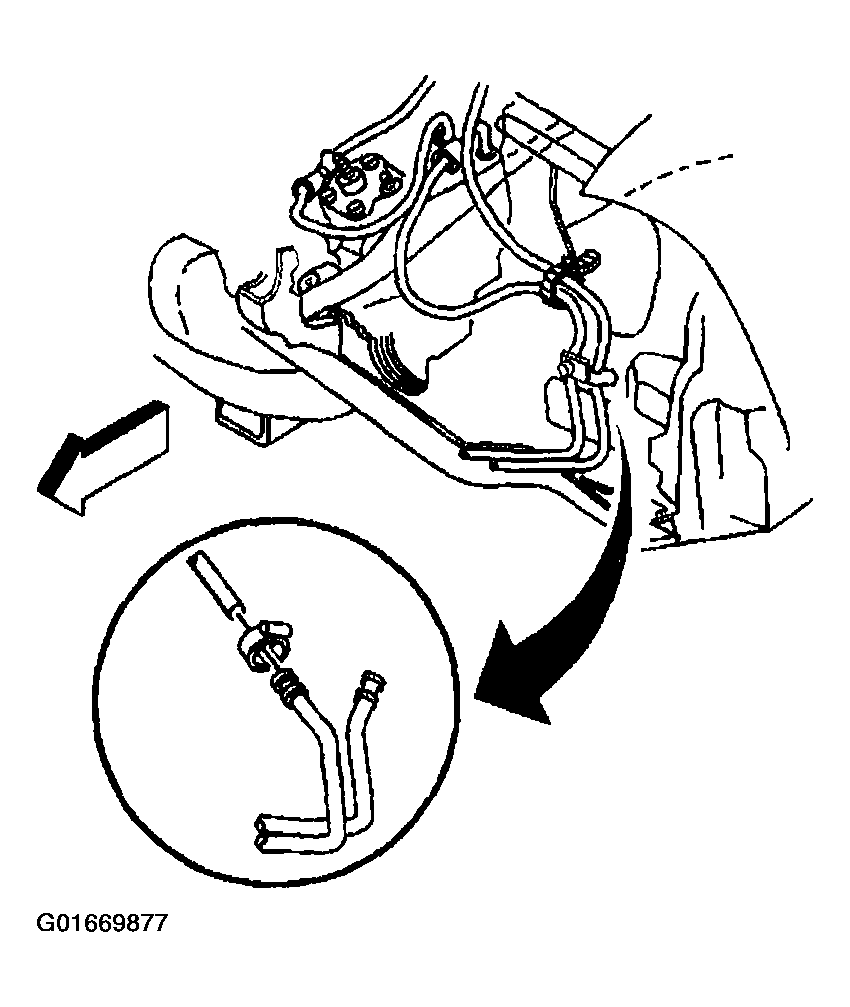

    Fig 1: Connecting Power Steering Cooler Hose To Cooler (4.3L)
    G01669877Courtesy of GENERAL MOTORS CORP.
  3. Connect the power steering cooler hose to the power steering pump.

    Tighten

    Tighten the power steering cooler hose to the power steering pump clamp to 2 N.m (18 lb in).

  4. Remove the drain pan from under the vehicle.
  5. Install the air cleaner assembly.
  6. Bleed the power steering system. Refer to Bleeding the Power Steering System .
    Fig 2: Connecting Power Steering Cooler Hose To Pump (4.3L)
    G01669878Courtesy of GENERAL MOTORS CORP.
