Disassembly Procedure

  1. Remove the pitman shaft and the side cover. Refer to Steering Gear Pitman Shaft and Housing Cover Replacement - Off Vehicle (700 Gear) .
  2. Remove the pitman arm (3) from the steering gear (1).
  3. Remove the pitman shaft boot (2).

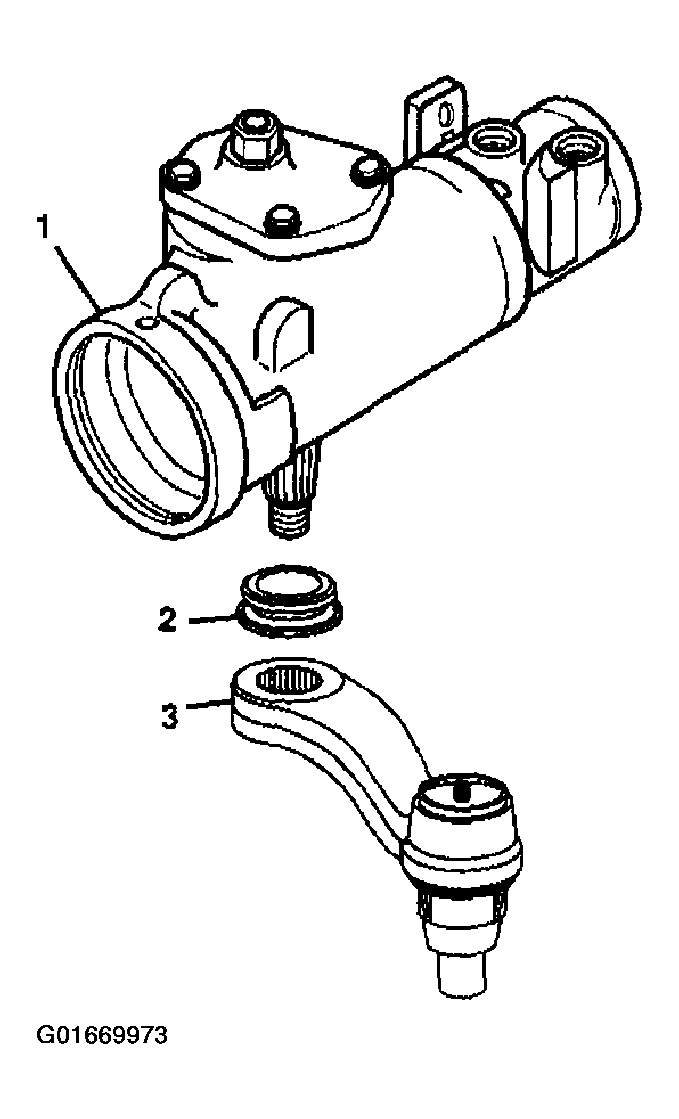

    Fig 1: Removing Pitman Arm & Pitman Shaft Boot
    G01669973Courtesy of GENERAL MOTORS CORP.
  4. Remove the dust seal (1).
  5. Remove the retaining ring using the J 4245  .
    Fig 2: Removing Dust Seal & Retaining Ring
    G01669974Courtesy of GENERAL MOTORS CORP.

    Important:  Use care not to score the steering gear housing bore when prying out the seals and the washers.

  6. Use a screwdriver to pry the backup washer (3) and the double lip seal (2) from the steering gear housing (1).
  7. Inspect the steering gear housing (1) for burrs.
    Fig 3: Prying Backup Washer & Double Lip Seal From Steering Gear Housing
    G01669975Courtesy of GENERAL MOTORS CORP.
  8. Insert J 6278  through the hole in the top of the steering gear housing (1).
  9. Drive out the needle bearing (2).

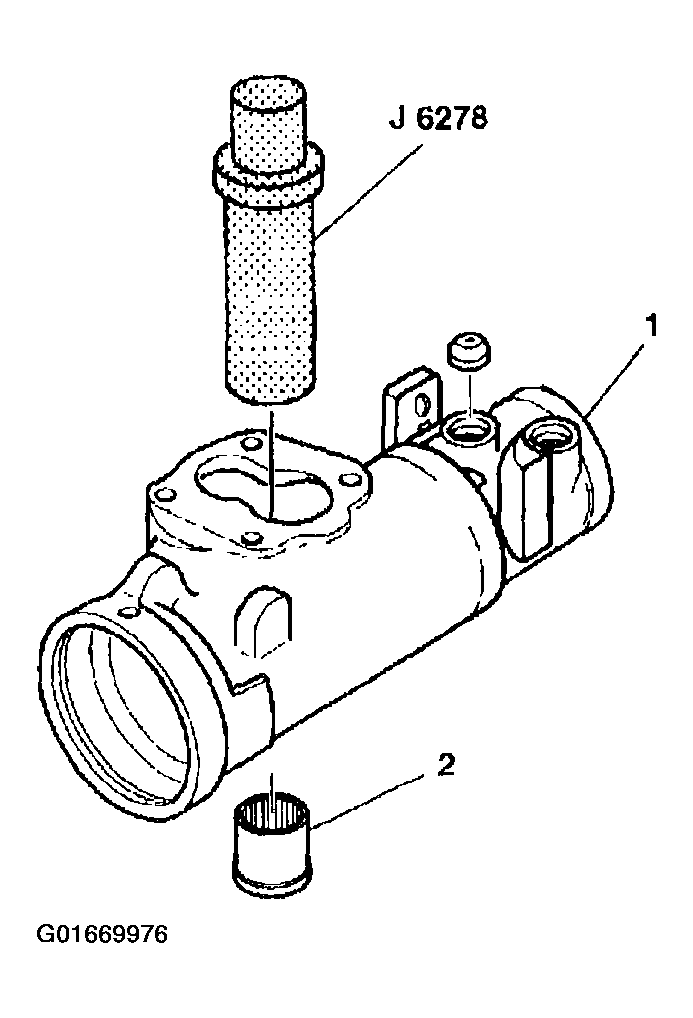

    Fig 4: Driving Out Needle Bearing Using J 6278
    G01669976Courtesy of GENERAL MOTORS CORP.
