Rattle, Clunk, or Shudder Noise from the Power Steering System
Rattle, Clunk, or Shudder Noise from the Power Steering System

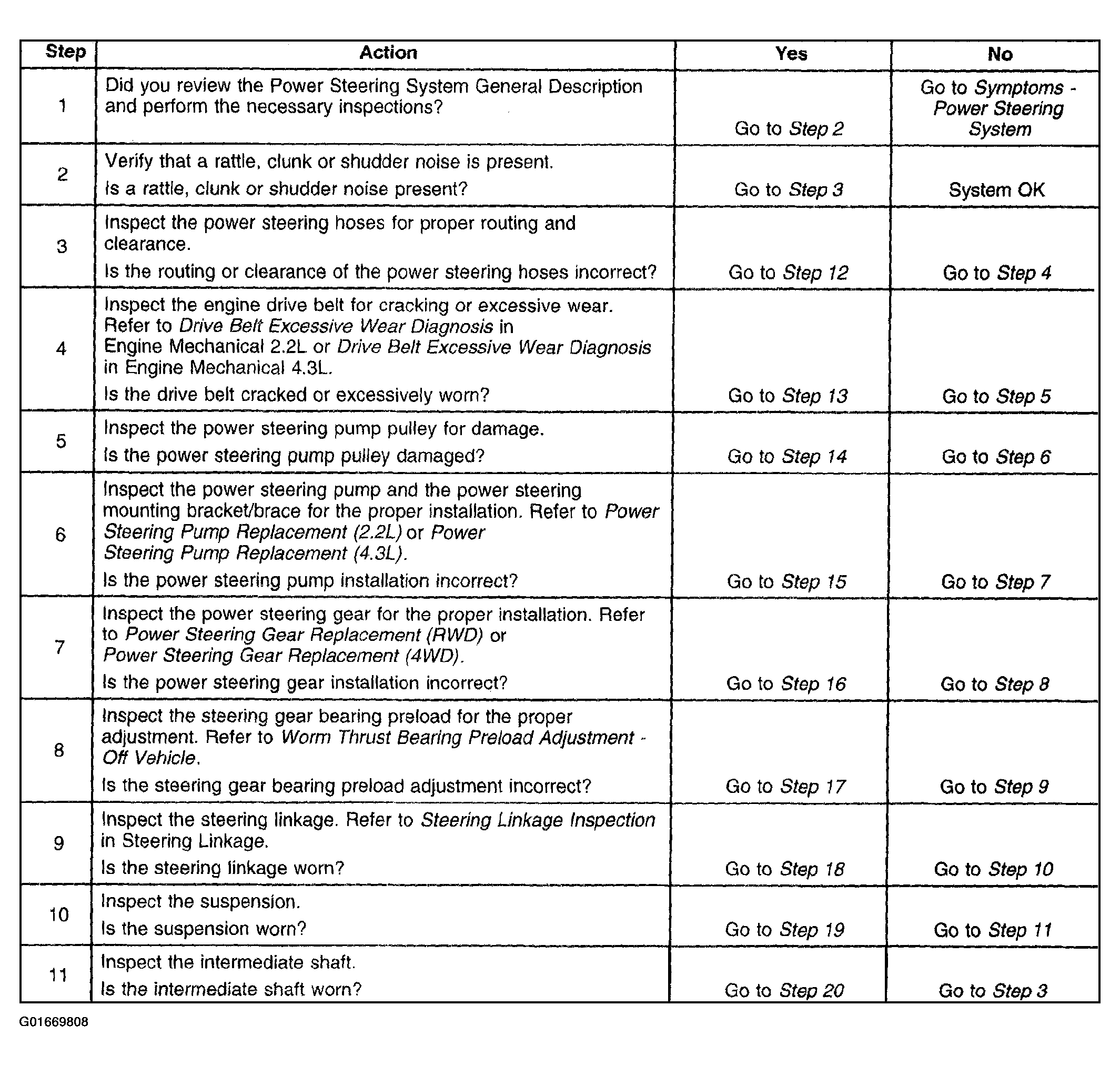

Fig 1: Rattle, Clunk, Or Shudder Noise From The Power Steering System (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

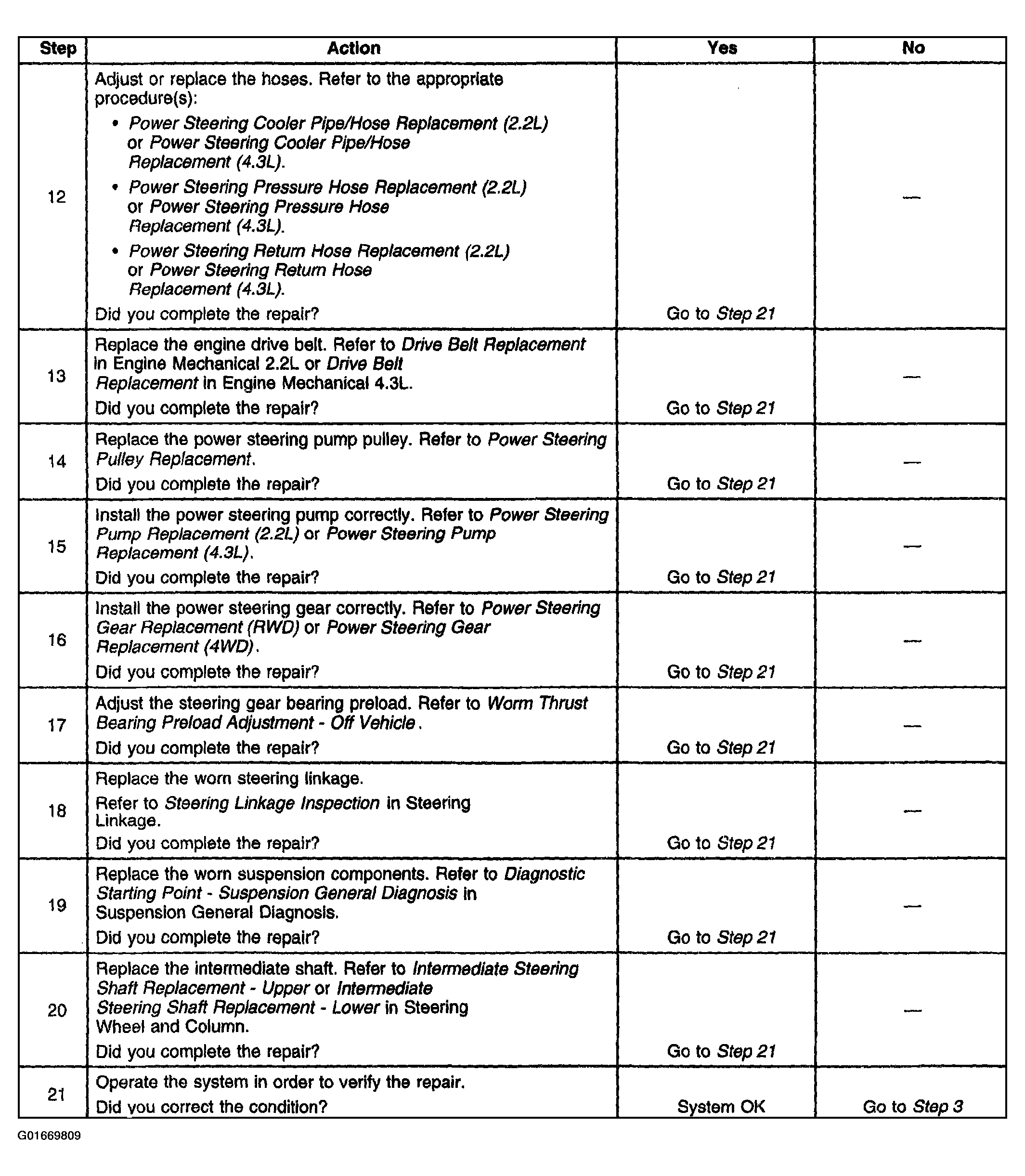

Fig 2: Rattle, Clunk, Or Shudder Noise From The Power Steering System (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
