Power Steering Fluid Leaks

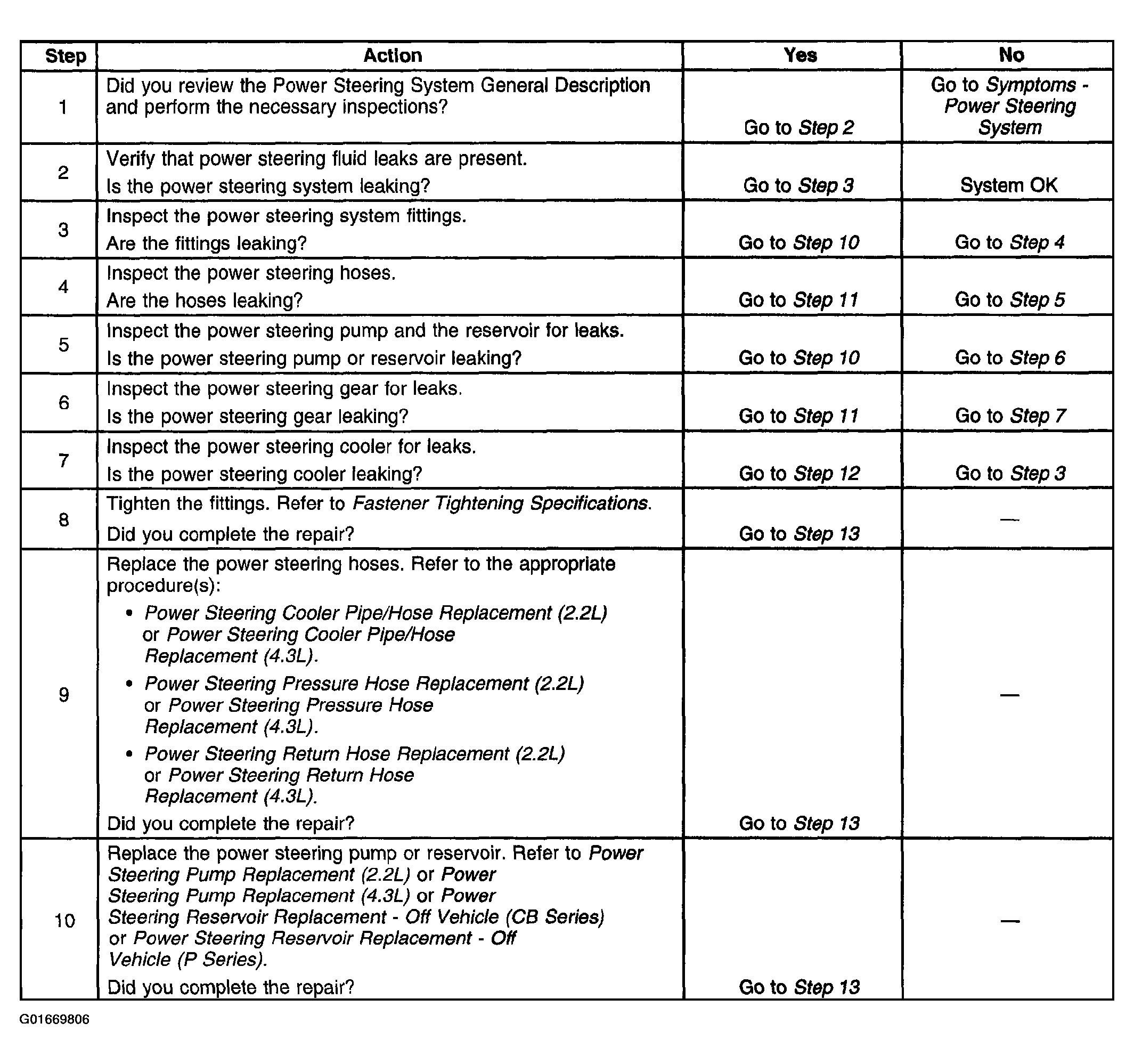

Fig 1: Power Steering Fluid Leaks (1 Of 2)

G01669806

Courtesy of GENERAL MOTORS CORP.

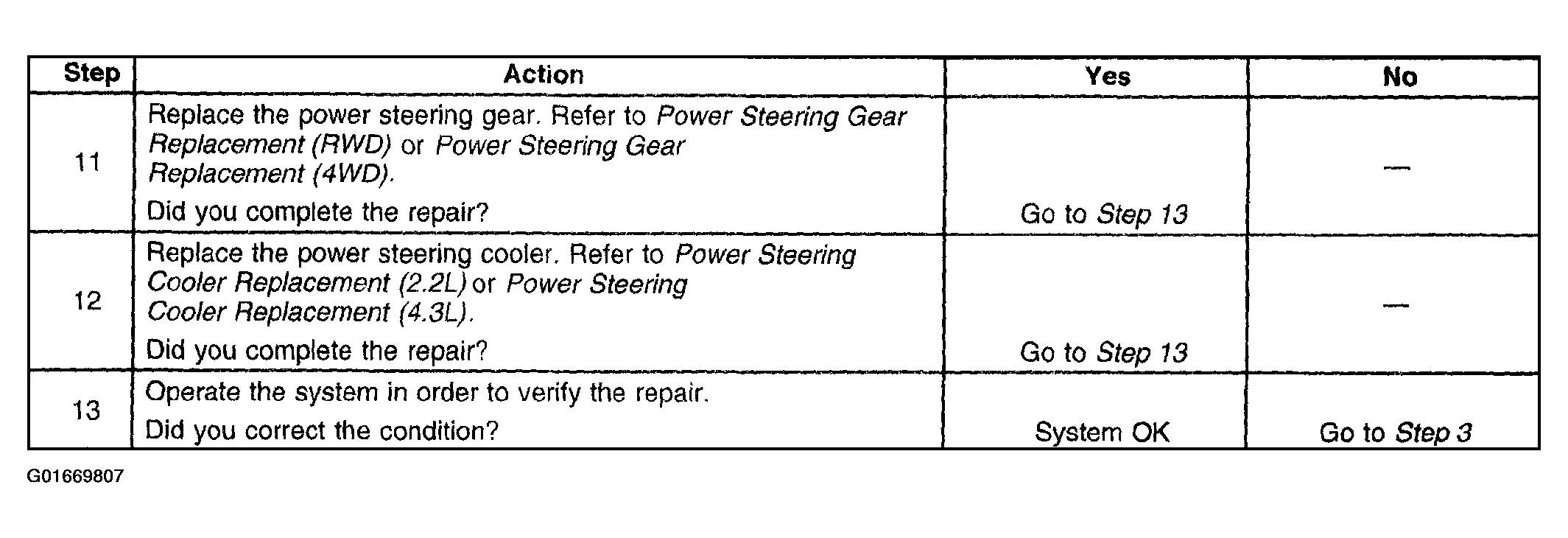

Fig 2: Power Steering Fluid Leaks (2 Of 2)

G01669807

Courtesy of GENERAL MOTORS CORP.
