Removal Procedure

  1. Remove the rear seat assembly. Refer to SEAT REPLACEMENT - REAR (2-DOOR UTILITY) or SEAT REPLACEMENT - REAR (4-DOOR UTILITY) or SEAT REPLACEMENT - REAR (CREW CAB) in Seats.
  2. Remove the lower seat belt anchor plate from the rear seat bolt.

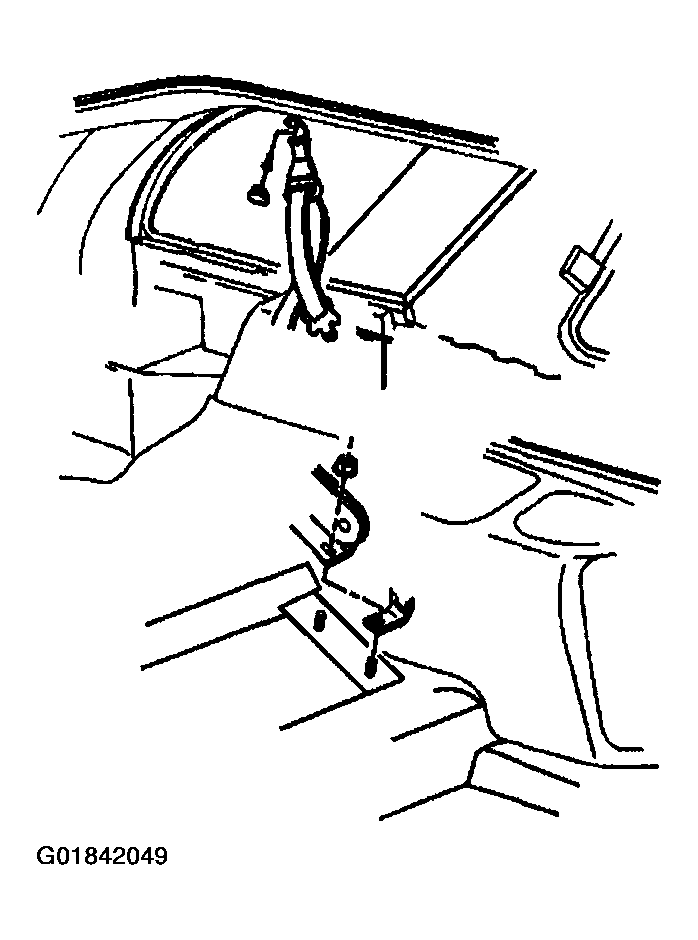

    3. Fig 1: Lower Seat Belt Anchor Plate From Rear Seat Bolt
    G01842049Courtesy of GENERAL MOTORS CORP.
  3. Remove the upper seat belt anchor bolt cover.
    4. Fig 2: Upper Seat Belt Anchor Bolt Cover
    G01842050Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolt that retains the upper seat belt anchor plate.

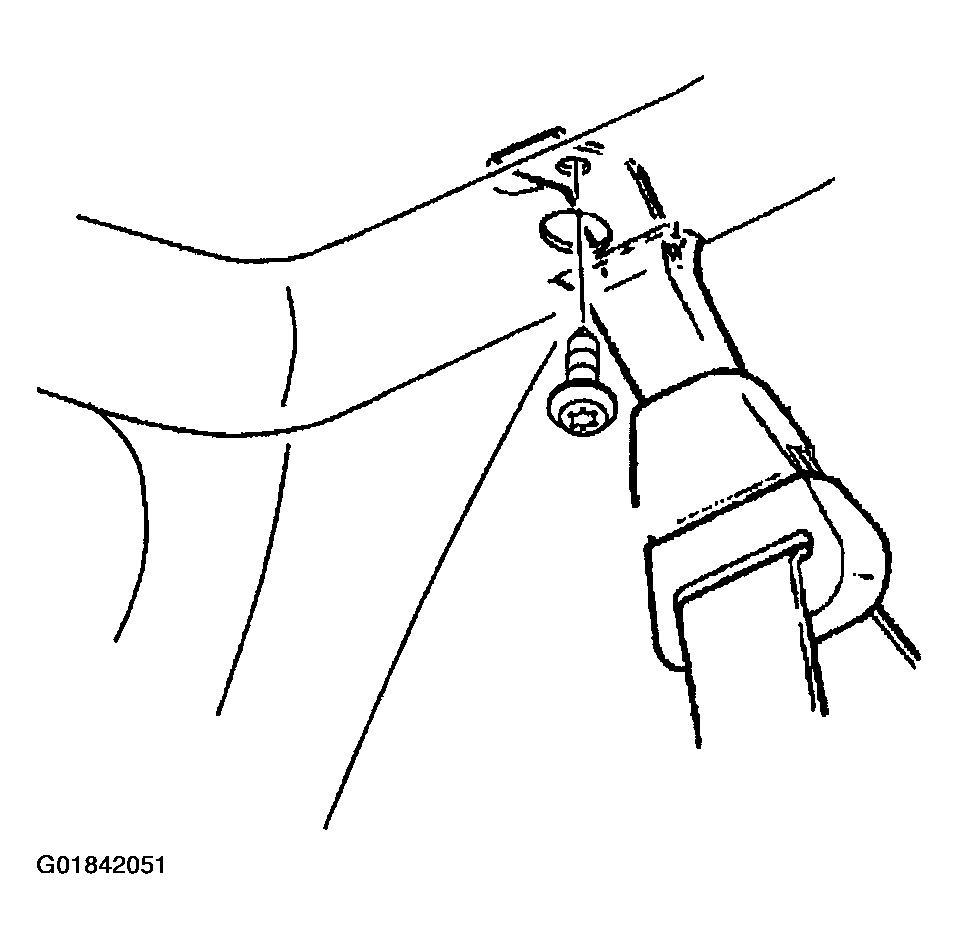

    5. Fig 3: Bolt That Retains Upper Seat Belt Anchor Plate
    G01842051Courtesy of GENERAL MOTORS CORP.
  5. Remove the body side trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE (STANDARD CAB PICKUP) or TRIM PANEL REPLACEMENT - BODY SIDE (EXTENDED CAB PICKUP) or TRIM PANEL REPLACEMENT - BODY SIDE (2-DOOR UT or TRIM PANEL REPLACEMENT - BODY SIDE (4-DOOR UT or TRIM PANEL REPLACEMENT - BODY SIDE (CREW CAB) in Interior Trim.
  6. Guide the seat belt through the opening in the body side trim panel.
  7. Remove the bolt that retains the seat belt retractor assembly to the vehicle.
  8. Remove the seat belt retractor assembly from the vehicle.

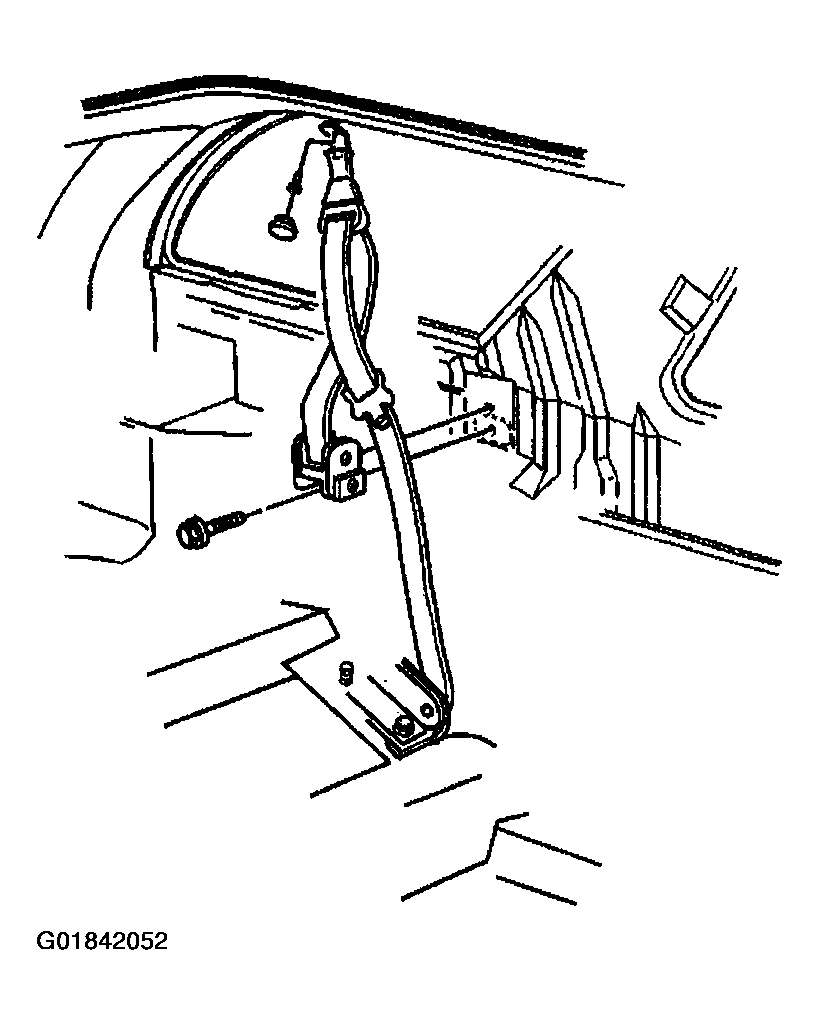

    9. Fig 4: Seat Belt Retractor Assembly
    G01842052Courtesy of GENERAL MOTORS CORP.
