Removal Procedure

  1. Remove the bolt that retains the lower seat belt anchor plate to the vehicle.

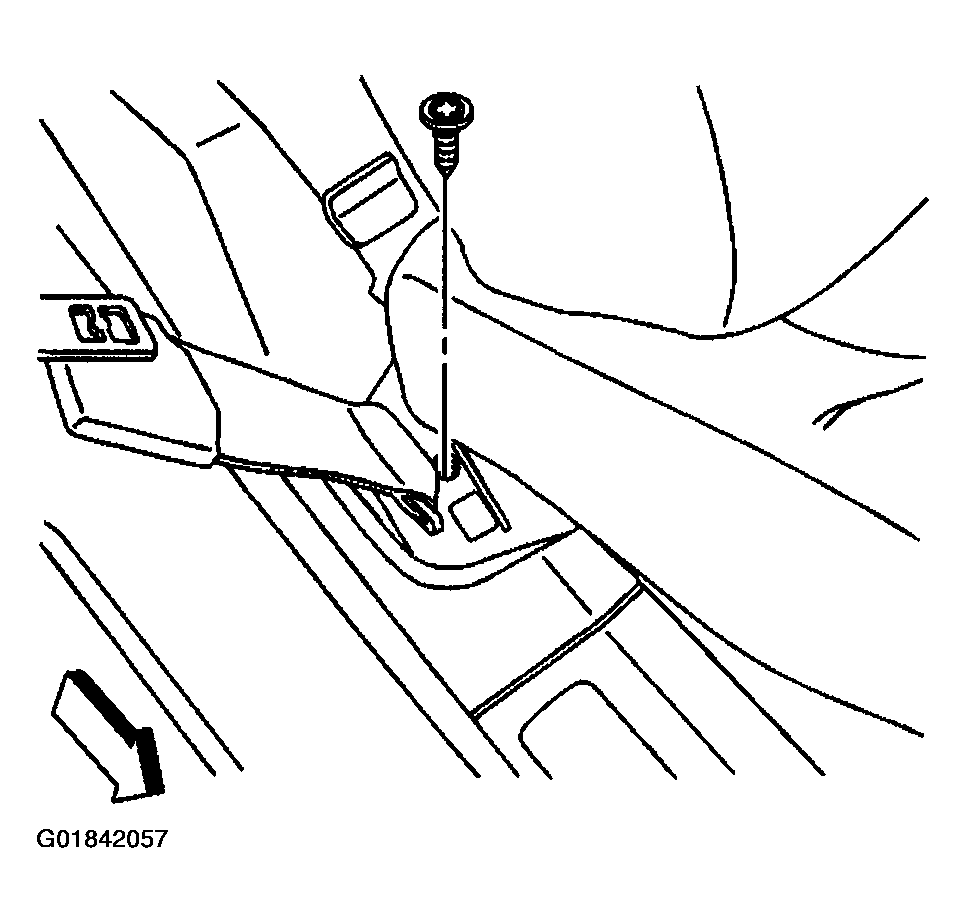

    2. Fig 1: Bolt That Retains Lower Seat Belt Anchor Plate To Vehicle
    G01842057Courtesy of GENERAL MOTORS CORP.
  2. Carefully pry open the upper seat belt anchor plate cover with a flat-bladed tool.

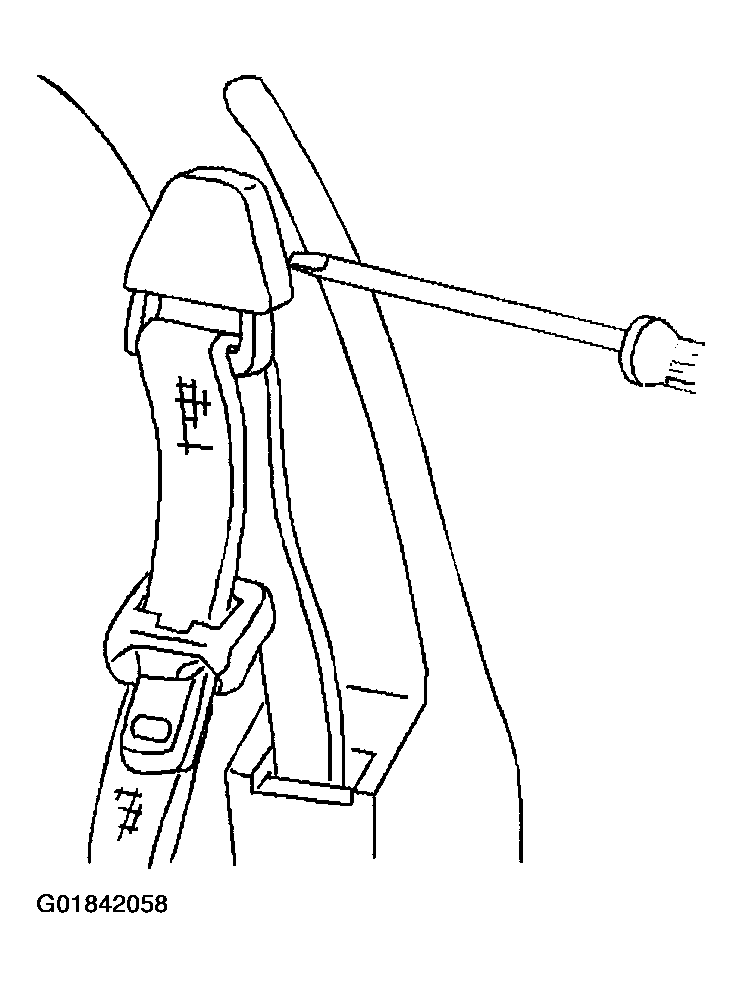

    3. Fig 2: Upper Seat Belt Anchor Plate Cover
    G01842058Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolt that retains the upper seat belt anchor plate to the vehicle.
  4. Remove the body side trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE (STANDARD CAB PICKUP) or TRIM PANEL REPLACEMENT - BODY SIDE (EXTENDED CAB PICKUP) or TRIM PANEL REPLACEMENT - BODY SIDE (2-DOOR UT or TRIM PANEL REPLACEMENT - BODY SIDE (4-DOOR UT or TRIM PANEL REPLACEMENT - BODY SIDE (CREW CAB) in Interior Trim.
  5. Guide the seat belt through the opening in the body side trim cover.

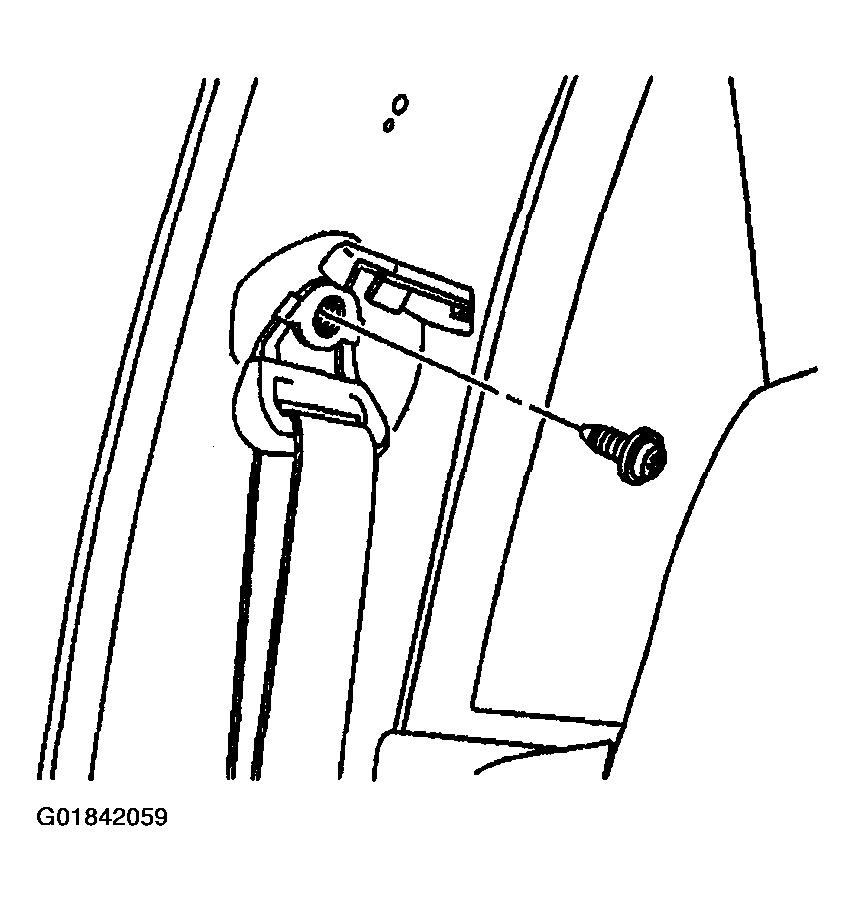

    6. Fig 3: Opening In Body Side Trim Cover
    G01842059Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolt that retains the seat belt retractor assembly to the vehicle.
  7. Remove the seat belt retractor assembly from the vehicle.

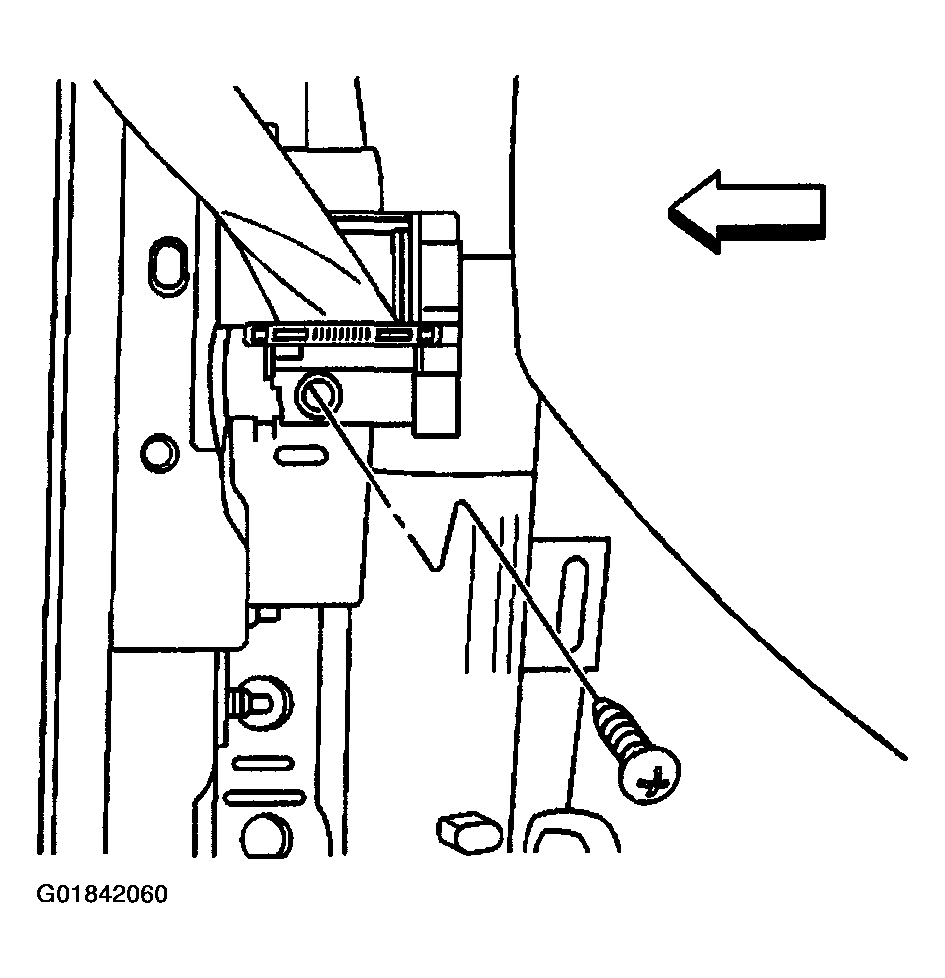

    8. Fig 4: Seat Belt Retractor Assembly
    G01842060Courtesy of GENERAL MOTORS CORP.
