Removal Procedure

  1. Fold the rear seats forward.

    Lift the rear seat floor filler trim panels to access the center rear seat belt assembly.

  2. Remove the center rear seat belt assembly retaining nuts from the vehicle.
  3. Remove the center rear seat belt assembly from the vehicle.

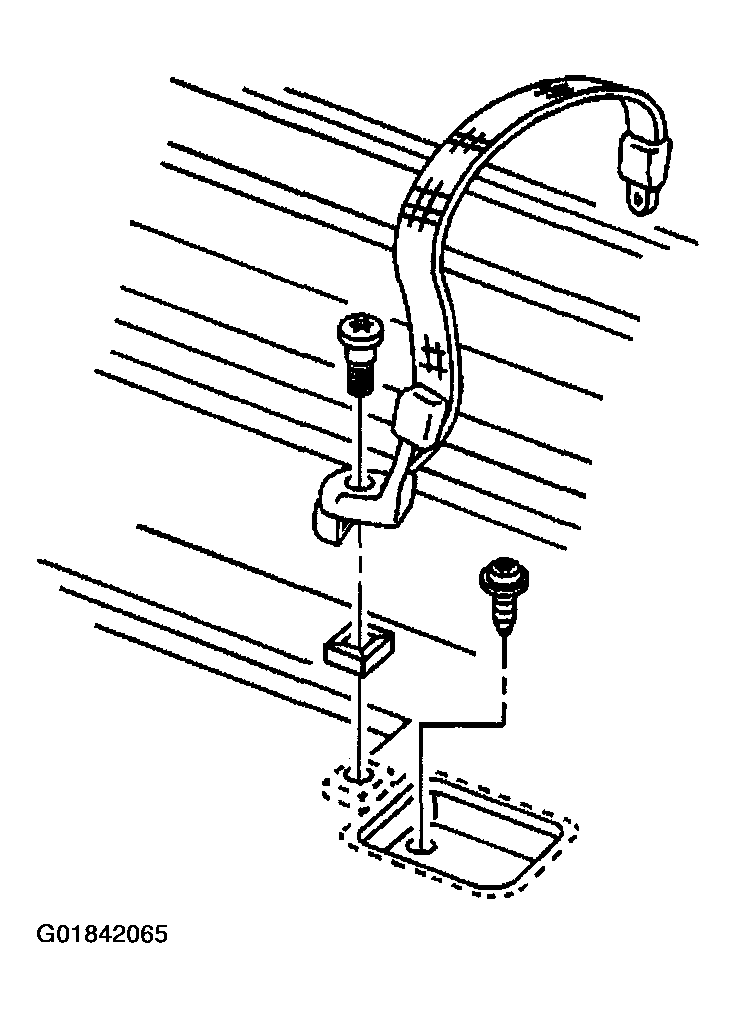

    4. Fig 1: Center Rear Seat Belt Assembly
    G01842065Courtesy of GENERAL MOTORS CORP.
