Removal Procedure

  1. Fold the rear seats forward.

    Lift the rear seat floor filler trim panels to access the rear seat belt buckle assembly.

  2. Remove the rear seat belt buckle assembly retaining nuts.
  3. Remove the rear seat belt buckle assembly from the vehicle.

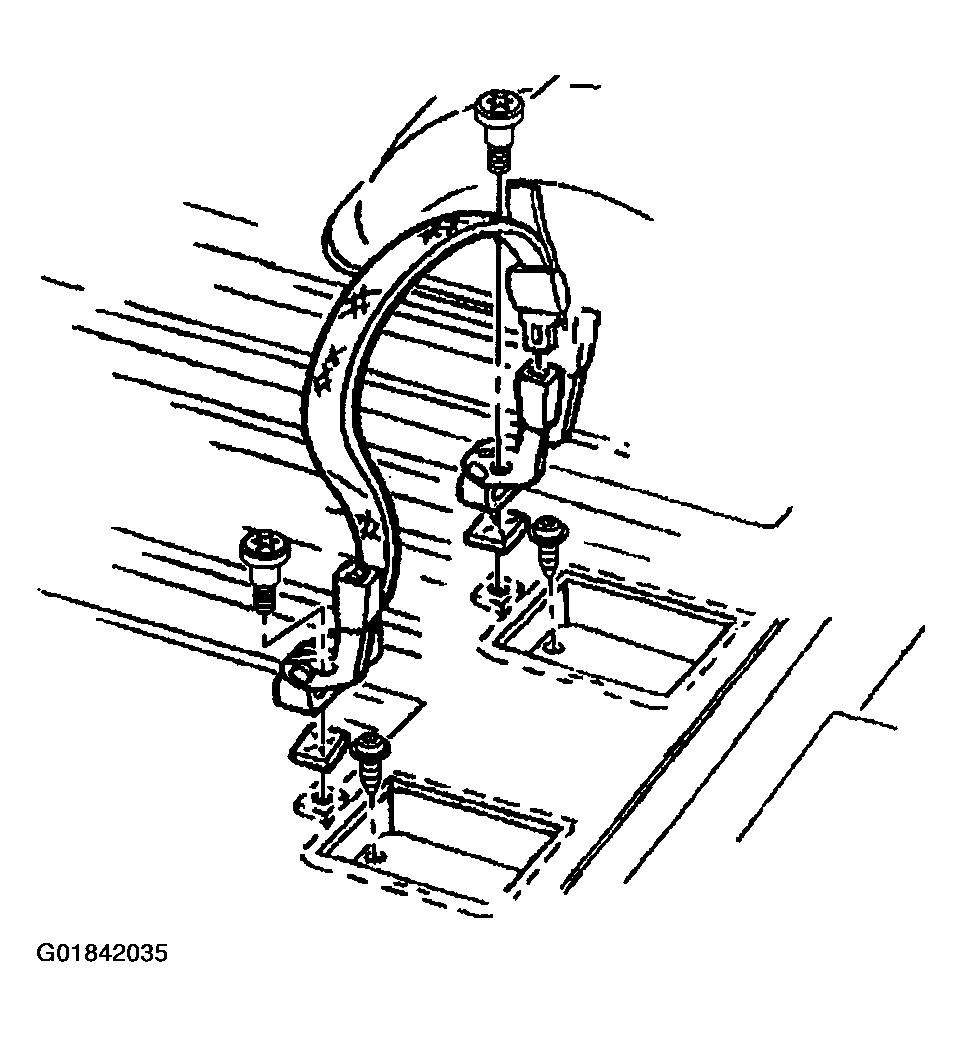

    4. Fig 1: Rear Seat Belt Buckle Assembly
    G01842035Courtesy of GENERAL MOTORS CORP.
